Audio Projectors
WFS 500 CX R
#50WFS500
Outdoor sound projector. 1000 W prog @ 8 Ohm. 10'' Woofer + 1'' Coaxial Driver. Support included.

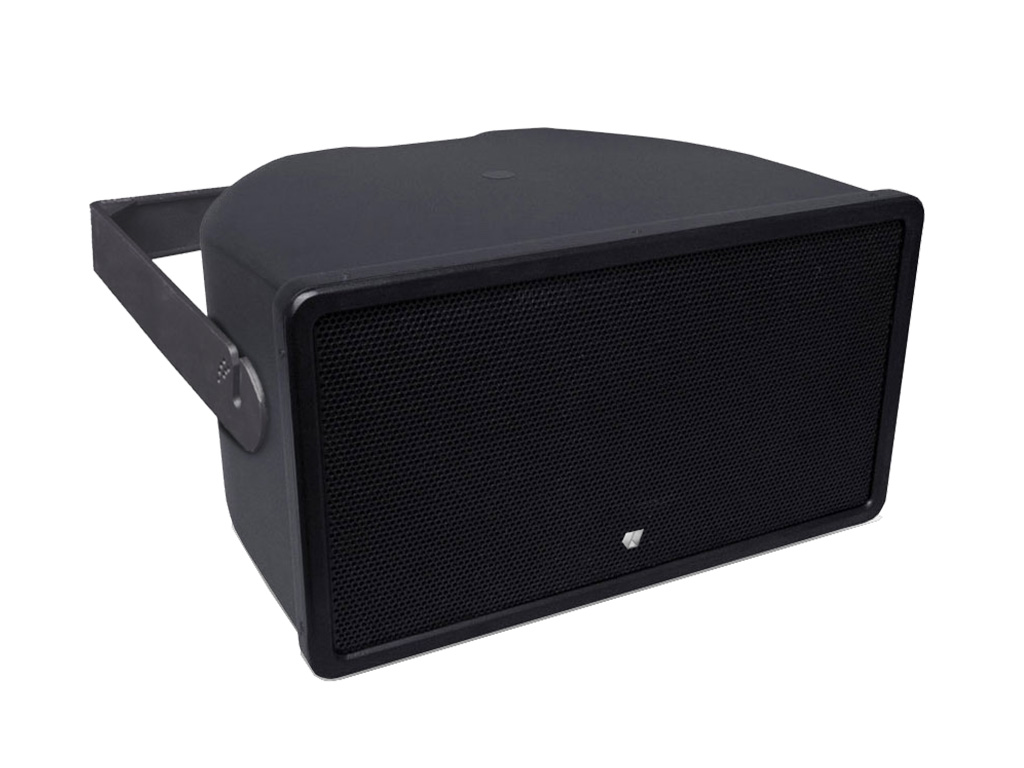

The WFS 500 CX R is a two-way, full-range, ABS passive loudspeaker providing speech intelligibility and musical clarity for outdoor applications such as water parks, theme parks, etc., where long distances must be reached. It features a 10'' diameter transducer with 2.5'' voice coil in a bass reflex enclosure and a 1'' output compression driver with 1.75'' voice coil, coupled to an 80° x 60° horn, which provides constant coverage over the vocal range. It has a steel grille coated with a water repellent material with an IP 65 protection rating. Includes WSTB 10 bracket for vertical tilt up to 45° in 7.5° steps.
Main information
- ABS.
- IP65.
- Low impedance and 100 V Line.
- Coaxial compression driver.
Product main measures (m)
0.46 x
0.59 x
0.33
| Type | Proyector de sonido pasivo. 2 vÃas |
| Low Impedance Power | 500 W RMS (89.5 Vp) |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 10" Woofer, voicecoil 2.5" |
| HF Transducer | 1.75" Compression driver, 1" exit |
| Sensitivity (1W @ 1m) | 100 dB |
| Coverage Angle (H x V) | 80º x 60º |
| Frequency Range | 66 Hz - 19 KHz (-10 dB), 86 Hz - 17.3 KHz (-6dB) |
| HPF filter recommended | Butterworth 24dB/Oct, 50Hz |
| Connections | Two pole stripped wire: Red(+) & Black(-) |
| Enclosure material | ABS |
| Grill | Steel, with waterproof coating |
| Inserts / Rigging | Wall mount accessories: WSTB 10 H (included): Tilt from 0º to 45º in 7.5 degree steps WSTB 10 V (optional): ± 90º to the sides |
| Colour | Black or white |
| IP Protection | IP 65 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.46 | 0.59 | 0.33 | 19.80 |
| Box | 0.70 | 0.61 | 0.43 | 31.40 |
