Audio Projectors
WFS 5 CX
#50WFS005
#50WFS006
200W audio projector. IP 66 70/100V line - 8 Ohm

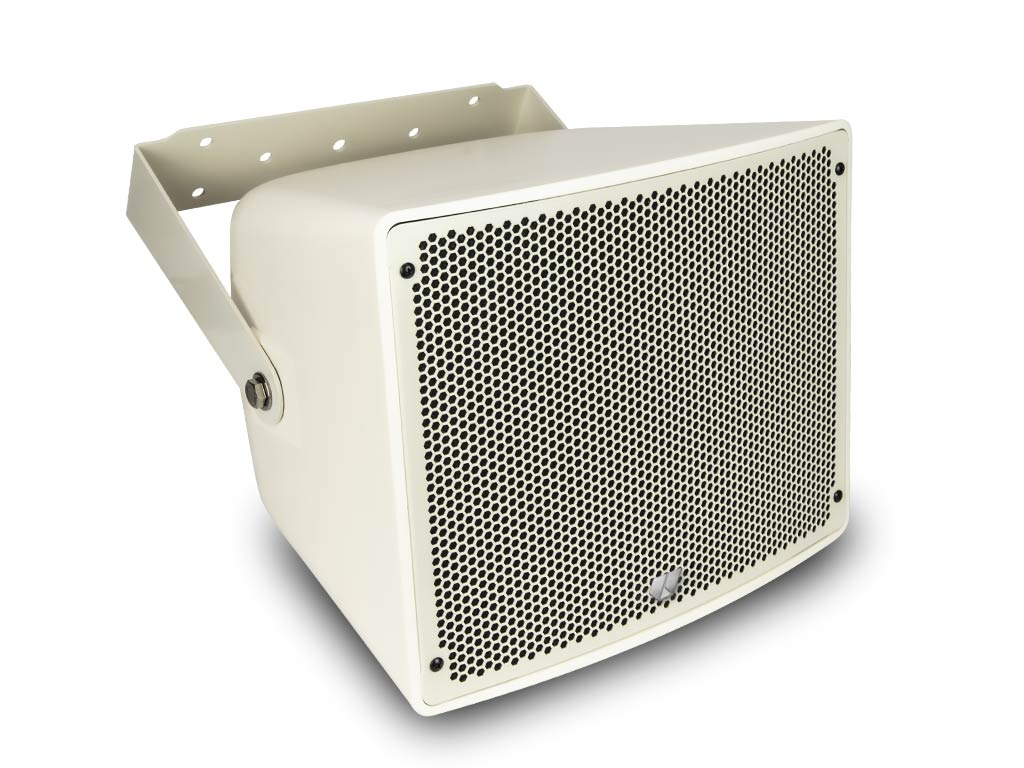

WFS 5 CX is an audio projector that has been designed for outdoor
applications. It incorporates a 10" coaxial transducer and a 1.5"
compression driver. Its high IP rating (IP 66) makes it suitable for
sports facilities, recreational areas, etc.

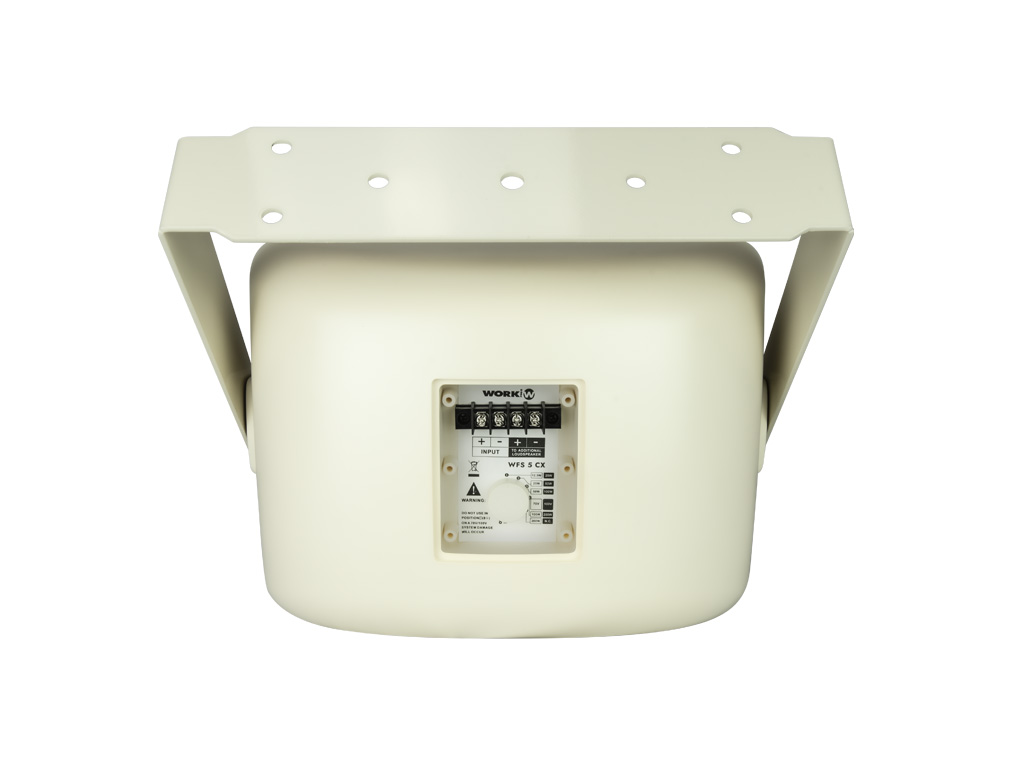

Its two connection modes
(low impedance 8 Ohm and 70/100V line) allow to adjust the device for

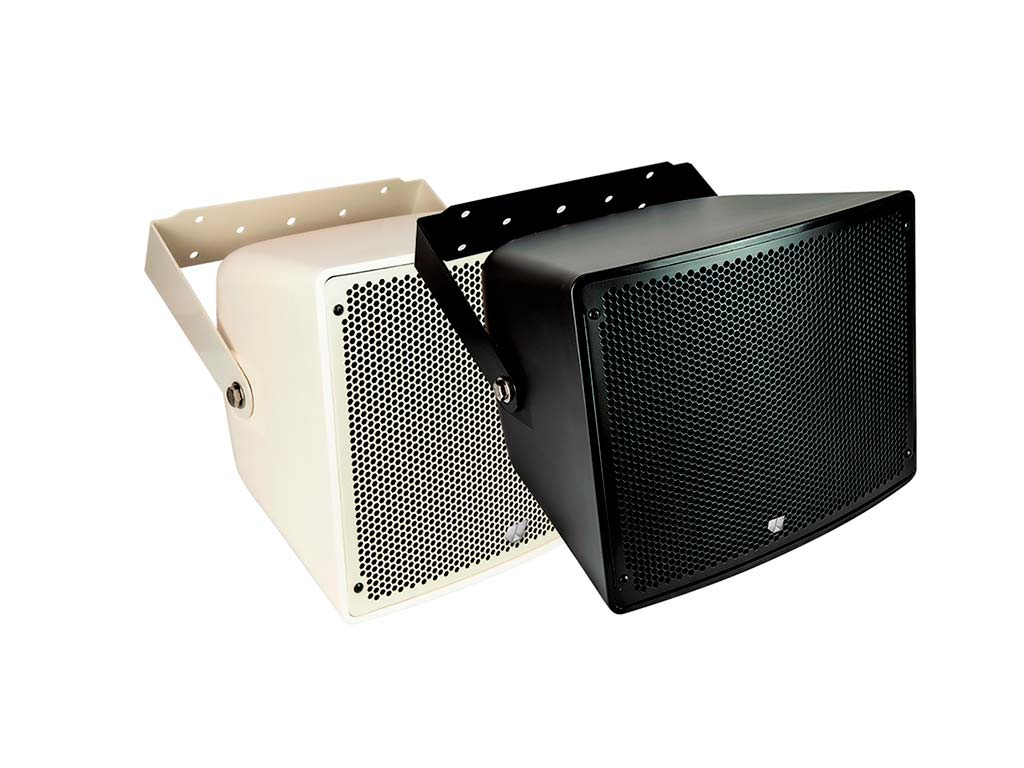

different acoustic solutions. WFS 5 CX is also available in black color.
Main information
- Outdoor sound projector
- 200W @8 ohm
- 12.5W to 200W L 100V
- Woofer 10 in + tweeter 1.5 in
Measures (Box) (m)
0.45 x 0.45 x 0.39
| LF Transducer | Woofer 10" |
| HF Transducer | Compression driver 1.5" |
| L100V Power | 25/50/100/200 W L100 V |
| L70V Power | 12.5/25/50/100 W L70 V |
| Low Impedance Power | 200 W @ 8 Ohm |
| Sensitivity (1W @ 1m) | 103 dB ± 3 dB |
| Frequency Response | 70 Hz - 18 kHz |
| Dispersion | 90º - 100º |
| IP Rate | IP66 |
| Material | ABS plastic |
| Grill | Steel |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.45 | 0.45 | 0.39 | 15.80 |
