Audio Projectors

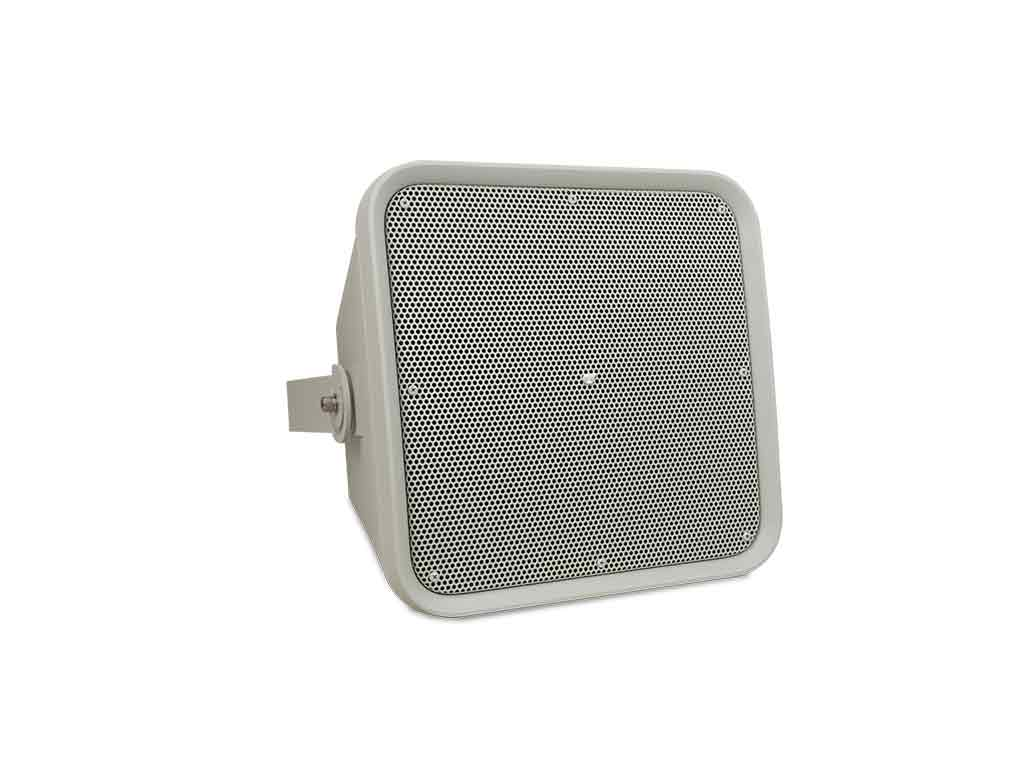

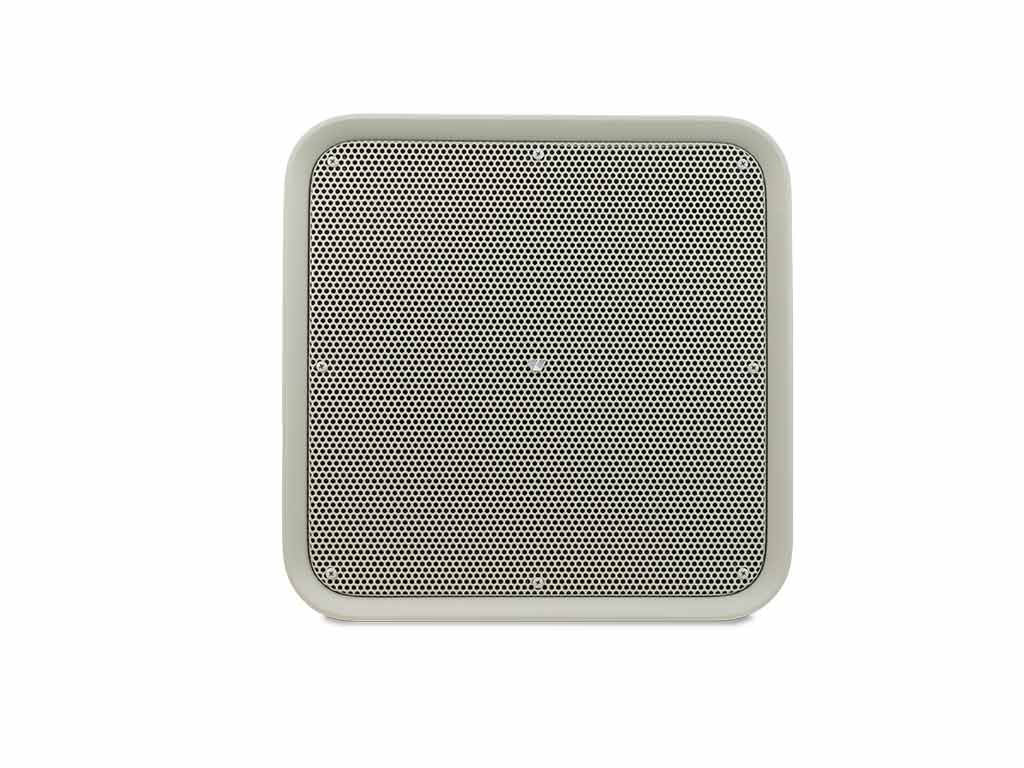

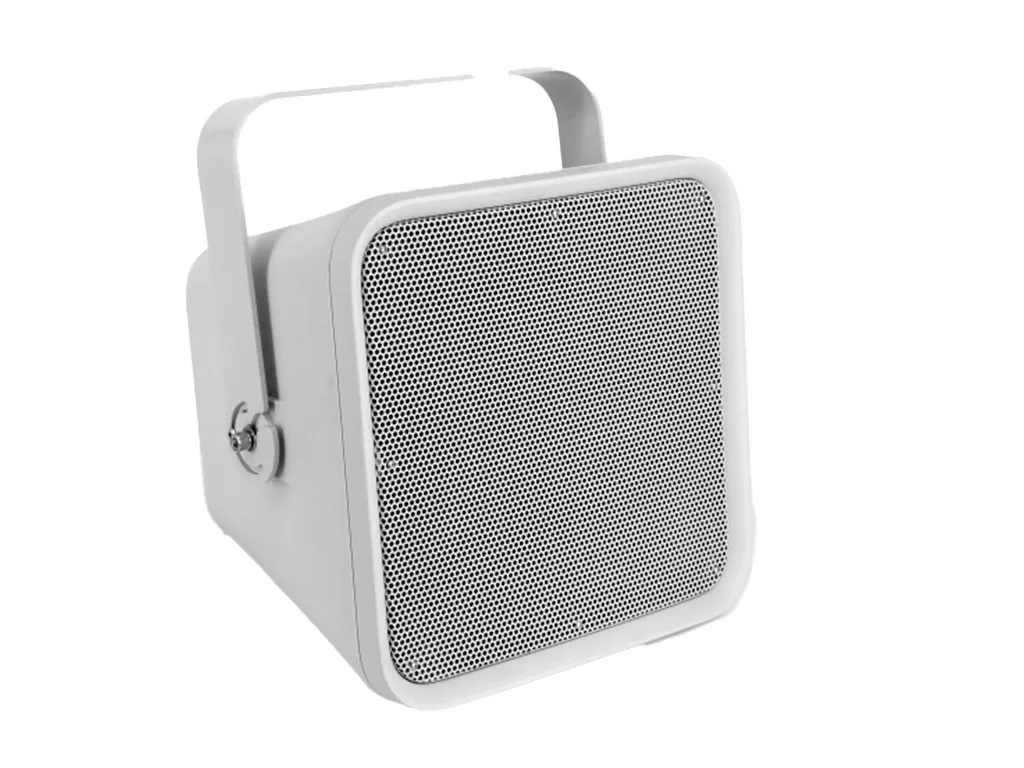

WFS 12 CX
#50WFS012
Outdoor sound projector. 300 W @ 8 Ohm. 200 W @ L100V. 12' Coaxial woofer + 1' Driver. IP 55.
This audio projector has been designed for outdoor appliances. It incorporates a 12" coaxial transducer and a 1" compression driver.It elevate IP range (IP 55) makes it very suitable for sports facilities, entertainment complexes, etc.. Its 2 connectivity modes (low impedance 8 Ohm and 100V line) allows to set the devices to several acoustic solutions.
Main information
- Square shaped projector.
- Low impedance and 100 V line.
- High-strength ABS plastic.
- U bracket included.
| Type | Coaxial sound projector |
| Low Impedance Power | 300 W |
| L100V Power | 200W / 100W / 50W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | Woofer 12" coaxial |
| HF Transducer | 1" |
| Sensitivity (1W @ 1m) | 98 dB |
| SPL Max | 118 dB |
| Coverage Angle (H x V) | 90º x 90º |
| Frequency Range | 80 Hz - 20 KHz |
| Enclosure material | ABS |
| Grill | aluminum |
| Inserts / Rigging | U bracket included |
| IP Protection | IP 55 |
| Weight(kg) | |
|---|---|
| Product | 22.00 |
| Box | 15.80 |
