Audio Projectors
WFS 10 CX R
#50WFS210
Outdoor sound projector. 300 W prog @ 8 Ohm. 120 W @ L100V. 10' Coaxial woofer + 1' Driver. IP 65.

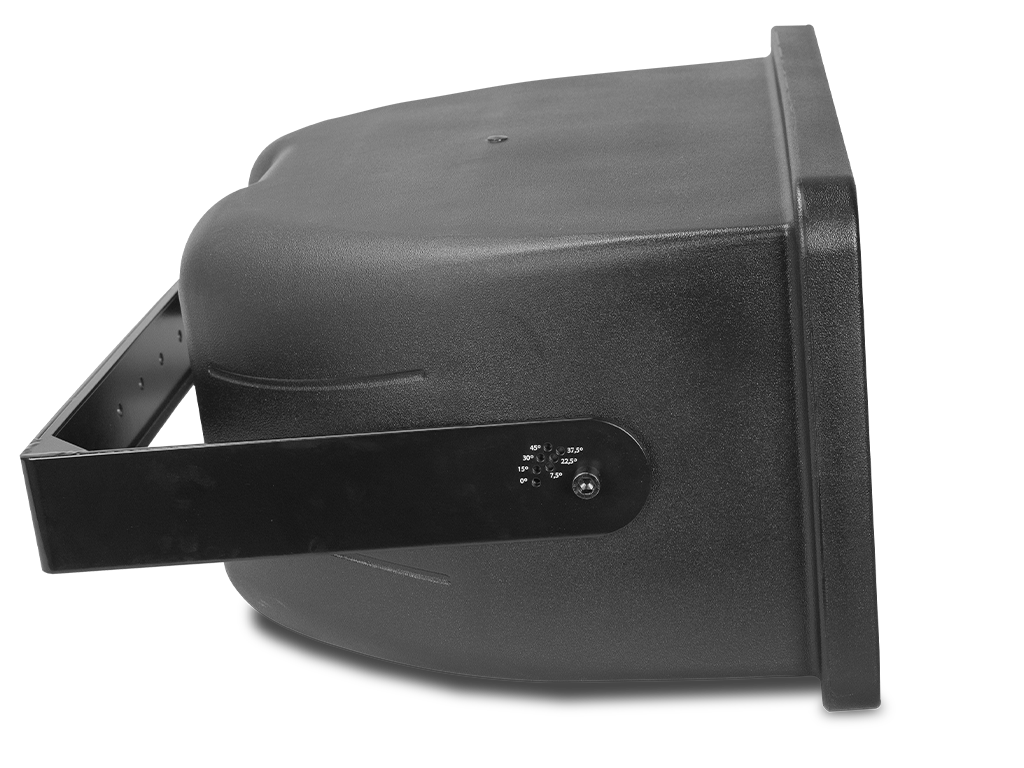

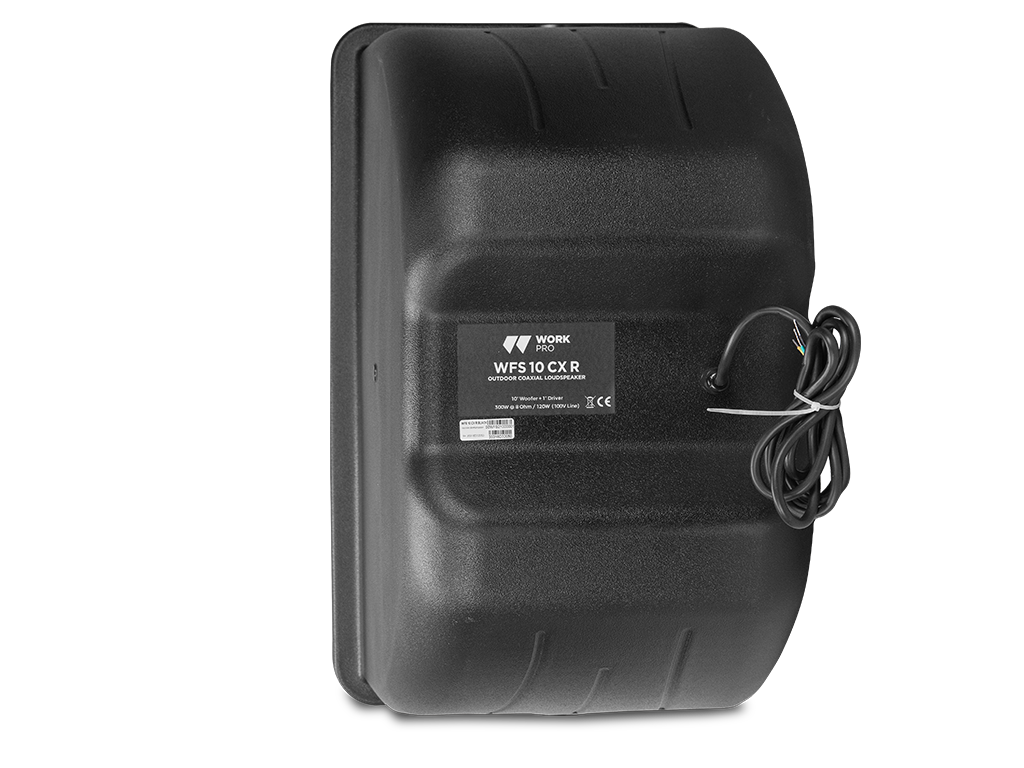

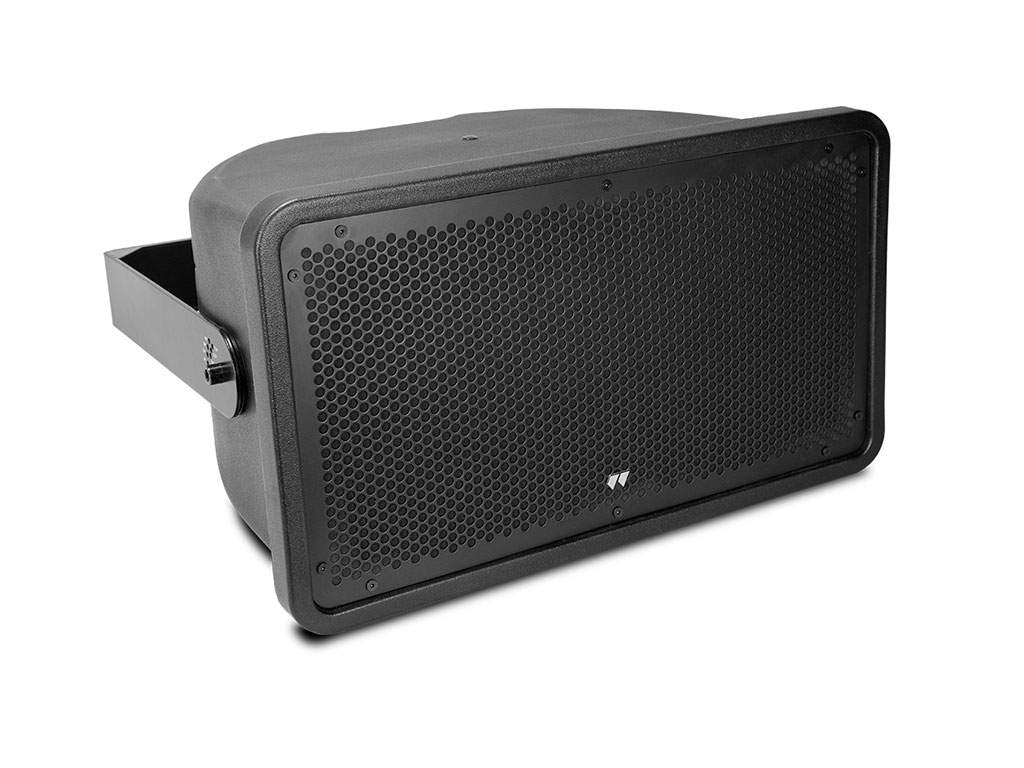

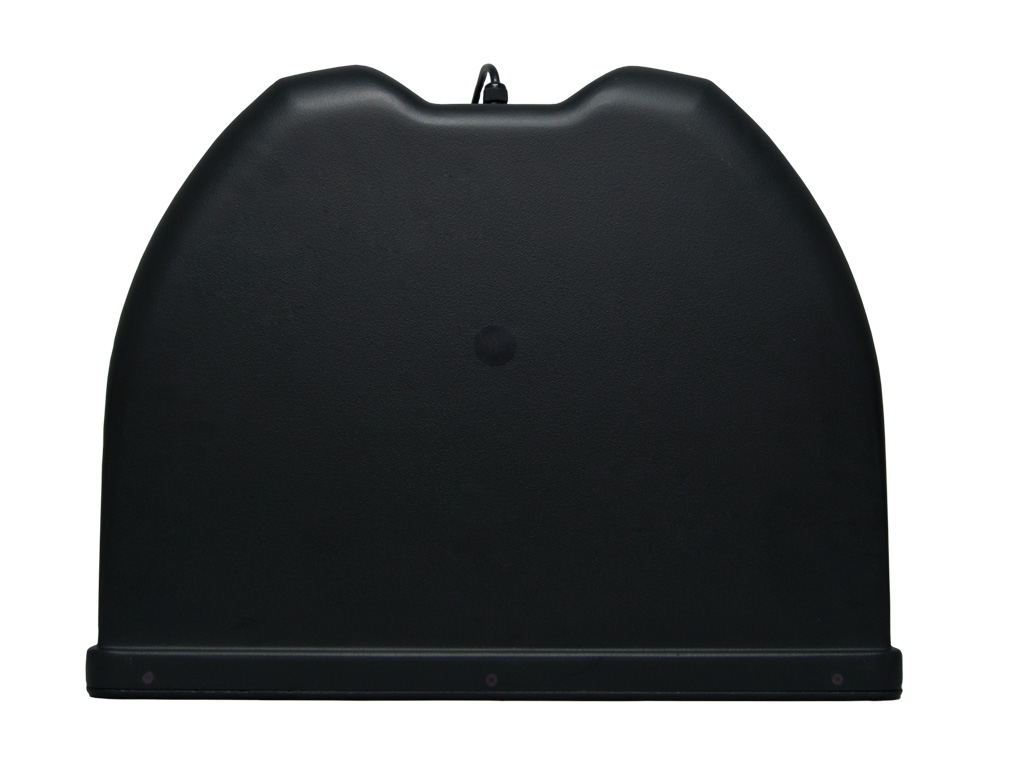

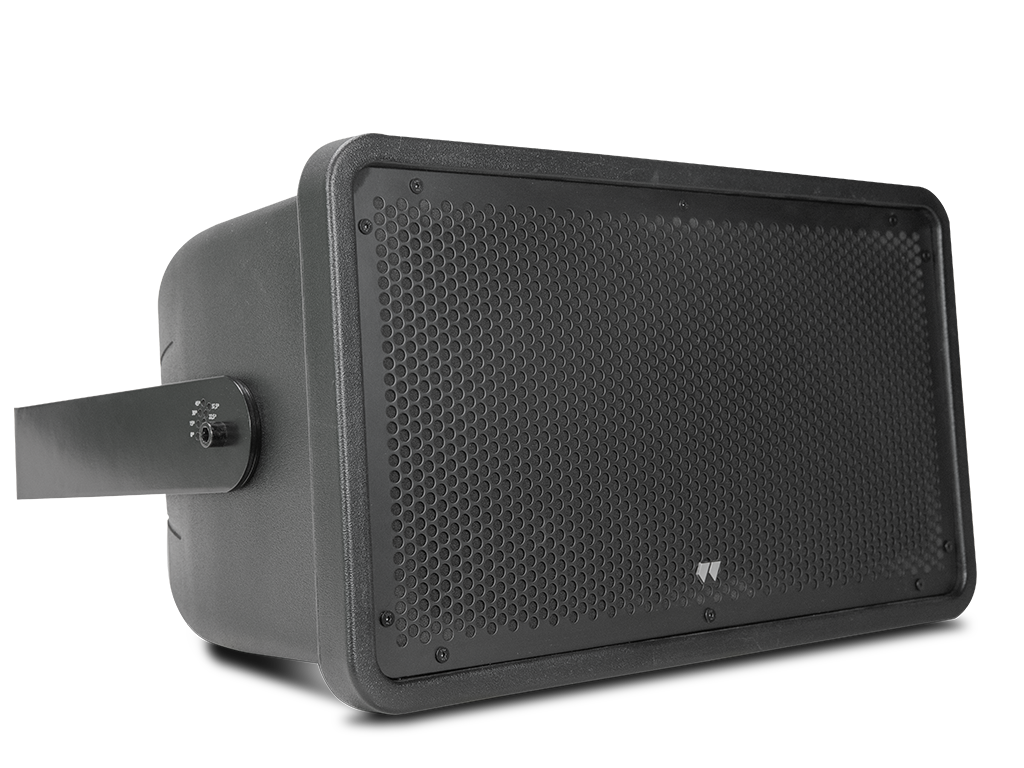

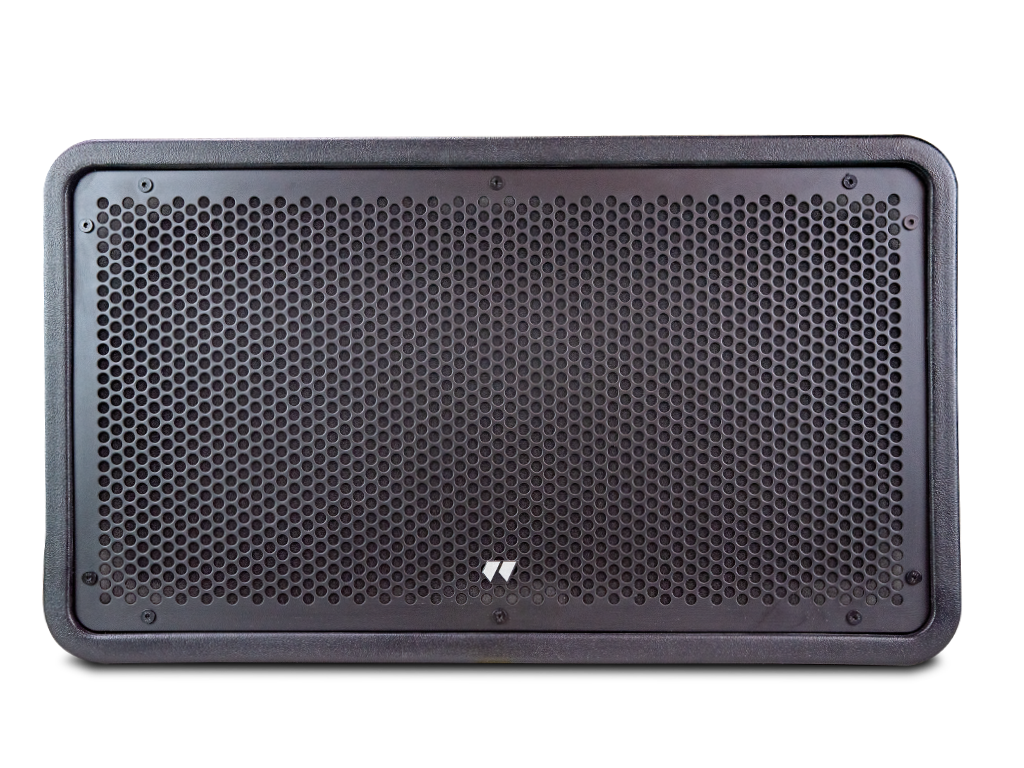

This audio projector has been designed for outdoor appliances. It incorporates a 10" coaxial transducer and a 1" compression driver.It elevate IP range (IP 65) makes it very suitable for sports facilities, entertainment complexes, etc.Its 90ºx90º directivity in most of the band, making easier the contractors job designing an installation with the adequate audio dispersion. Its 2 connectivity modes (low impedance 8 Ohm and 100V line) allows to set the devices to several acoustic solutions.

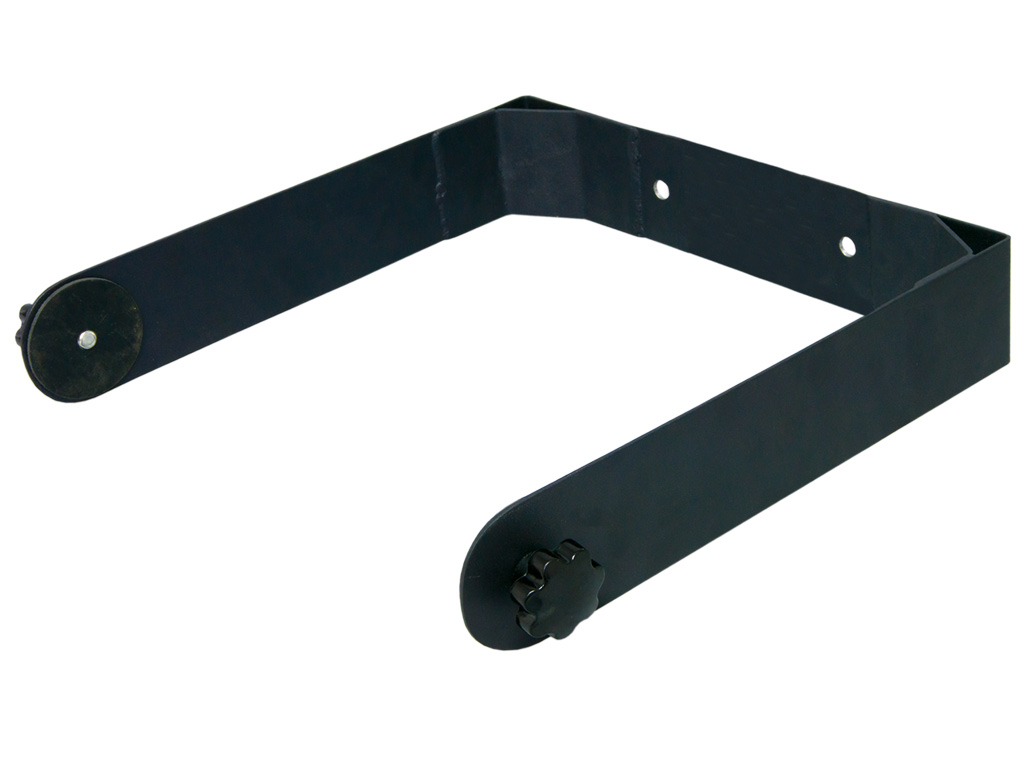

WFS 10 CX incorporates the WSTB 10 H for an easy and fast installation.
Main information
- Direct radiation.
- IP65.
- Low impedance and 100 V Line.
- Coaxial compression driver.
| Type | Passive audio projector. 2 ways |
| Low Impedance Power | 300 W Programa/ 300 W Program |
| L100V Power | 120 W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 10" Woofer |
| HF Transducer | 1" Compression driver |
| Sensitivity (1W @ 1m) | 104 dB |
| SPL Max | 126 dB / 131 dB peak |
| Coverage Angle (H x V) | 90º x 90º (500 Hz - 4 KHz) |
| Frequency Range | 89 Hz - 20.5 KHz |
| HPF filter recommended | 72 Hz |
| Connections | Four-connection cable hose |
| Enclosure material | ABS plastic |
| Grill | Metal |

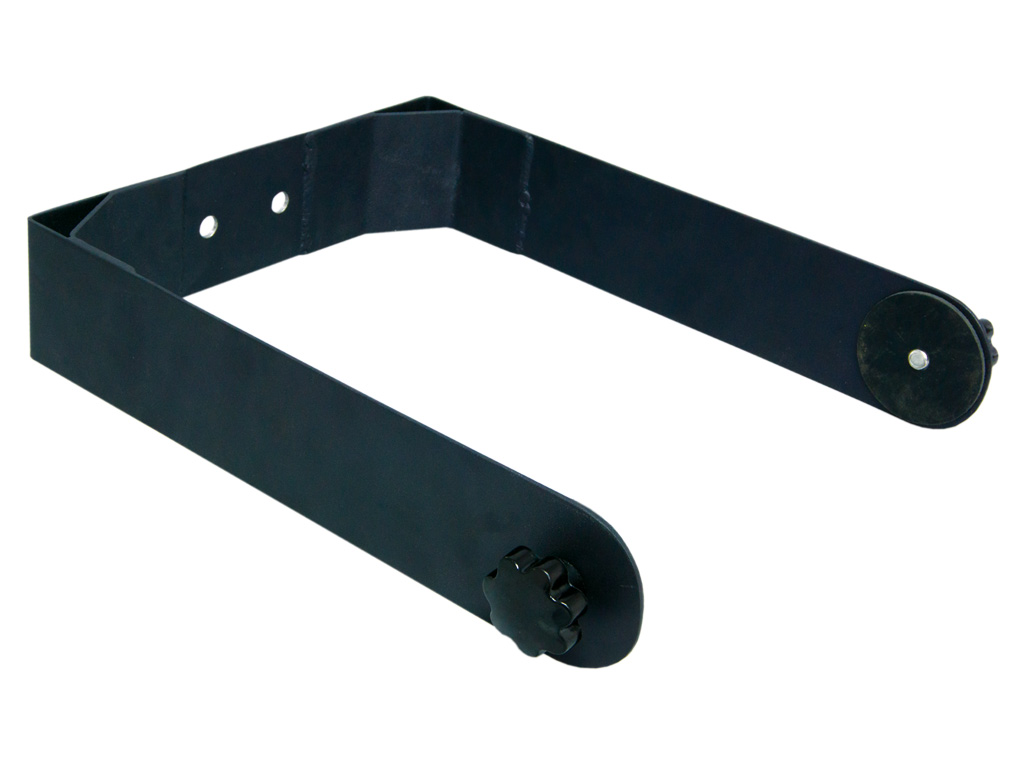

| Inserts / Rigging | Installation bracket WSTB 10 V and WSTB 10 H |
| Colour | Black |
| IP Protection | IP 65 |
