WAC 4
#28LED725
#28LED727
4'' touch control panel & APPs launcher

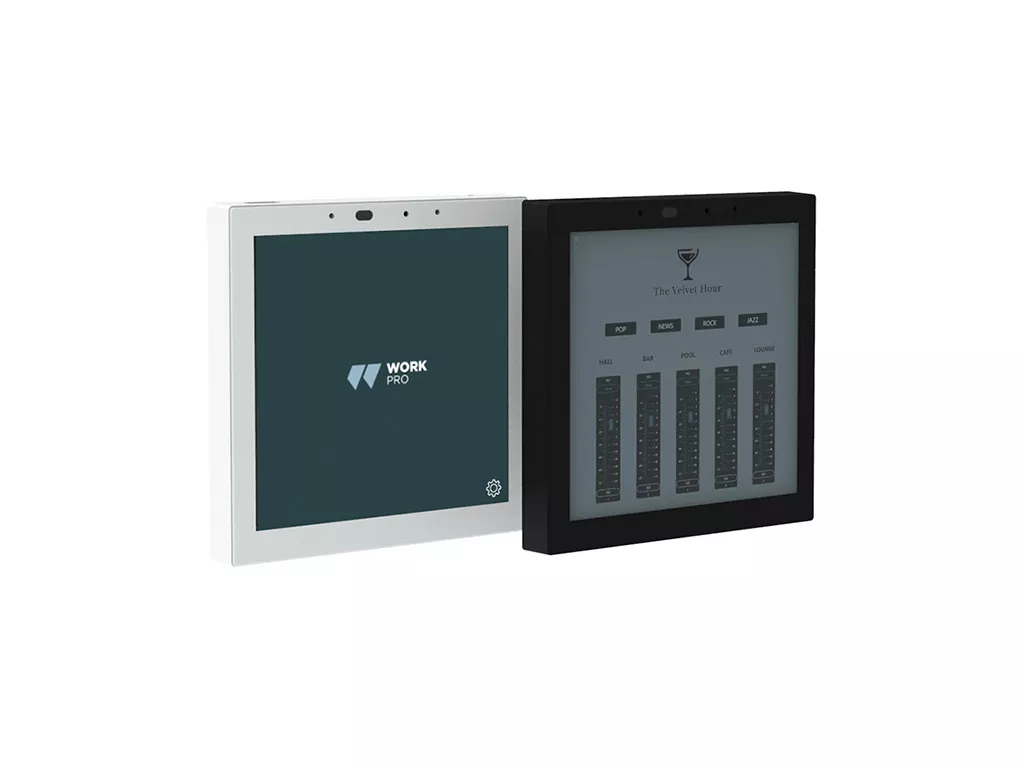

WAC 4 is a wall-mount touch screen. Its field of application is very wide. From offices, hotels and restaurants to home automation. The device comes pre-configured with the WORK device control applications ((INTEGRA, MD 82 AX MKII, WorkCAD, Blueline, Railtone/WMAC), as well as media players. Its configuration is very intuitive and allows to adjust a multitude of parameters of the system itself or to use it as a remote control for the aforementioned applications. It integrates WiFi, Bluetooth, Ethernet and RS485 protocol connectivity. Available in black and white.
Main information
- 4' touch control panel & APPs launcher
- Android 11 OS.
- 2GB RAM / 32GB ROM
- WiFi, Bluetooth, Ethernet and RS485 protocol
| Supported operating systems | Android 11 |
| Display | 4" |
| Resolution | 480 x 480 IPS |
| Wifi | 802.11b/g/n |
| Bluetooth | BLE 5.2 |
| RS 485 | Yes |
| CPU | RK3566 Quard-core Cortex-A55 1.8GHz |
| RAM/ROM | 2GB/32GB |
| Applications | INTEGRA, MD 82 AX MKII, WorkCAD, Blueline, Railtone/WMAC |
| Mp3 player | Spotify, 4Stream, AIMP |
| Power supply | POE / 110-240V AC |
| Dimensions | 86 x 85 x 36 mm |
| Video Media | MOV, AVI, WMV, RM, RMVB,3GP,MKV,MP4,ASF,VOB |
| Audio Media | MP3, WMA, WAV, AAC, FLAC, OGG |
| Working temperature | -10ºC - 60ºC |

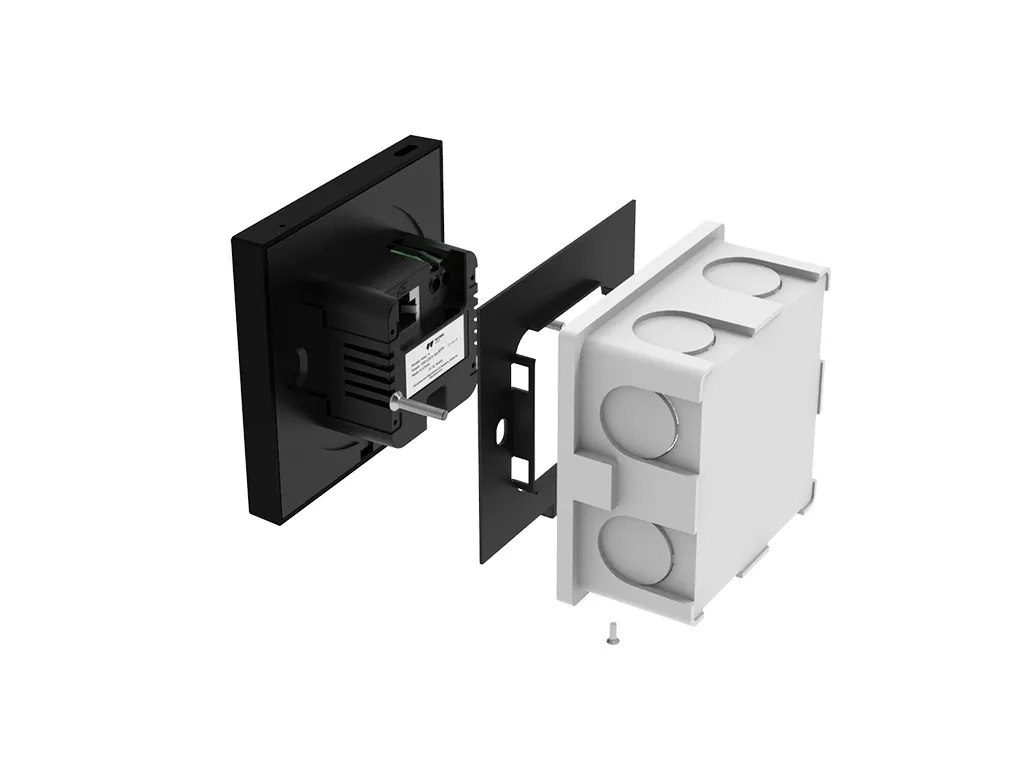

| Includded accessories | Wall mounting box with adapter plate and adapter plate for European box |
