Sound Amplifiers

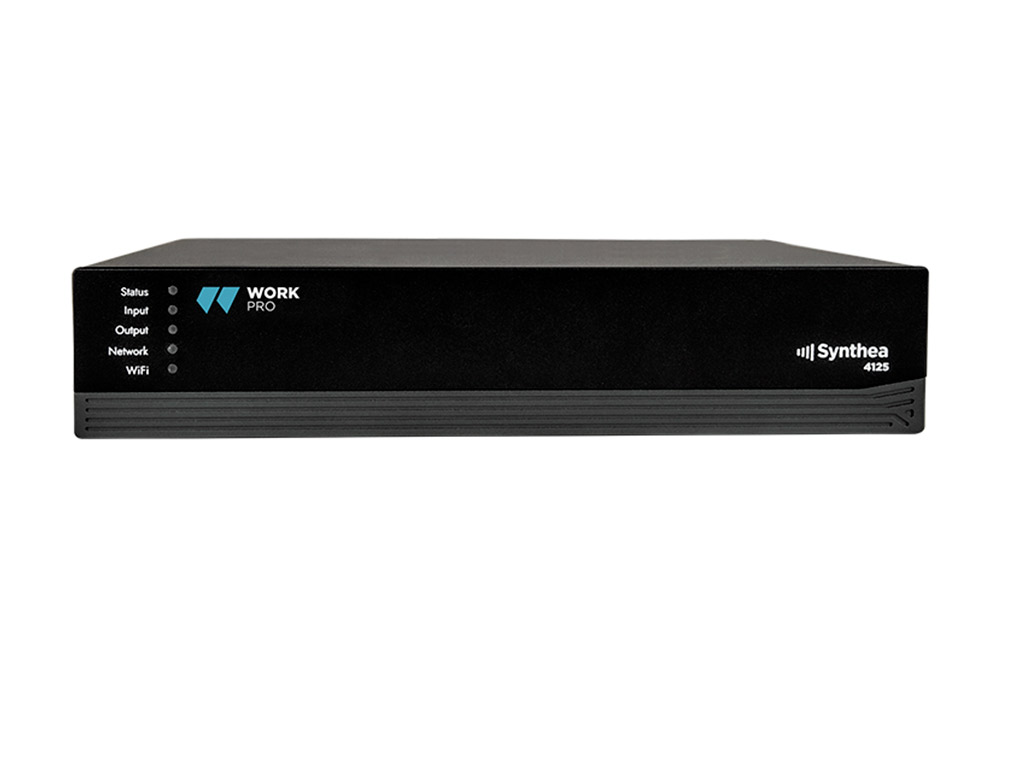

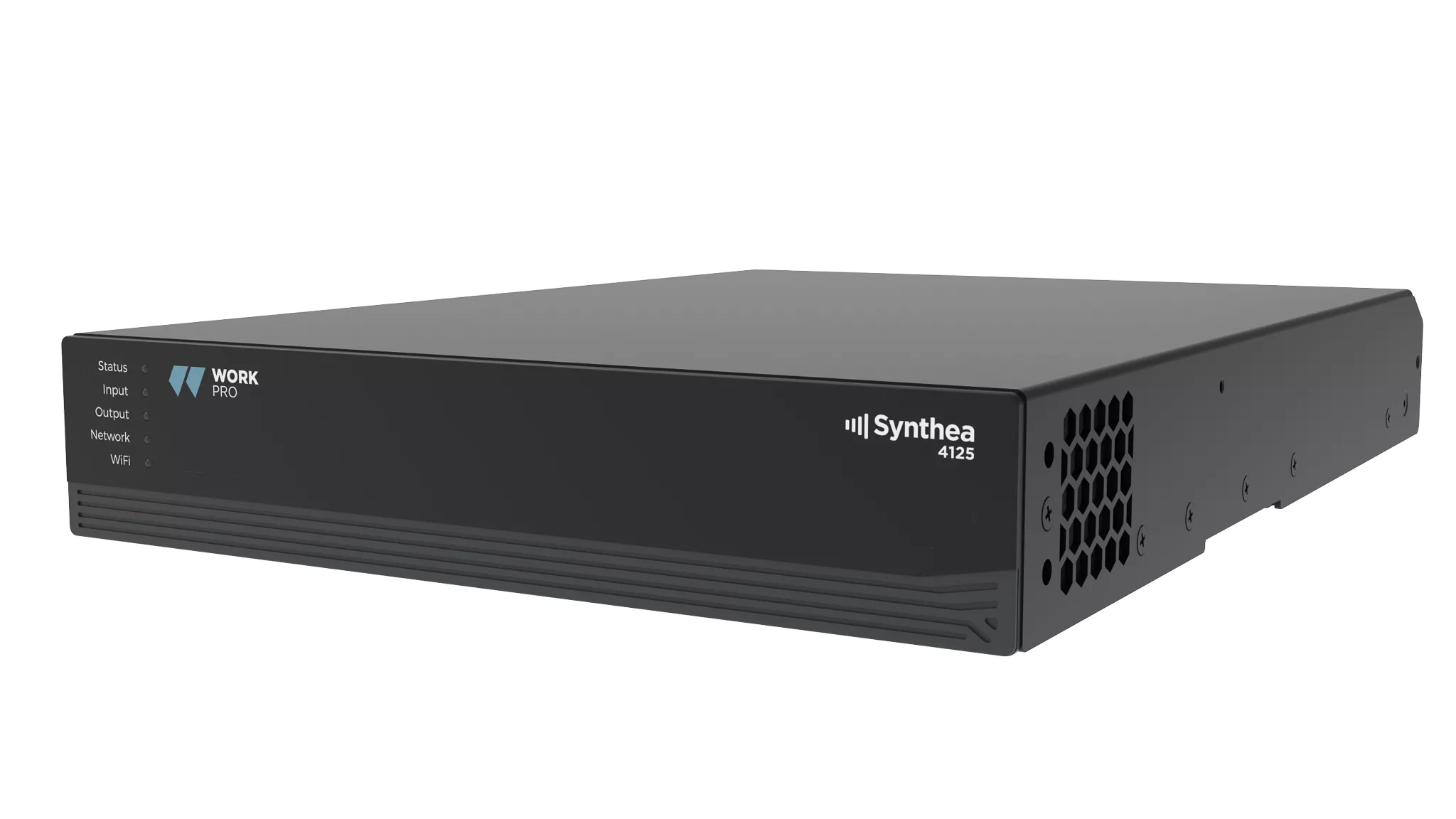

SYNTHEA 4125
#51SYN002
4x125W @4 ohm / 2x250W (100V/Bridge@8 Ohm) amplifier. DSP. Control Wi-fi, Ethernet. GPIO
Compact four-channel 4 ohm installation amplifier (up to 125W per channel) or 250W on each of the two 100V/Bridge@8 Ohm line output. Digital signal input and output for easy interconnection without conversions. Dedicated DSP with full connectivity and control via stand-alone Wi-Fi. Ethernet and GPIO
Main information
- 4x125W @ 4Ohm, 2x250W @ 4Ohm Bridge, 2x250W (100V/Bridge@8 Ohm)

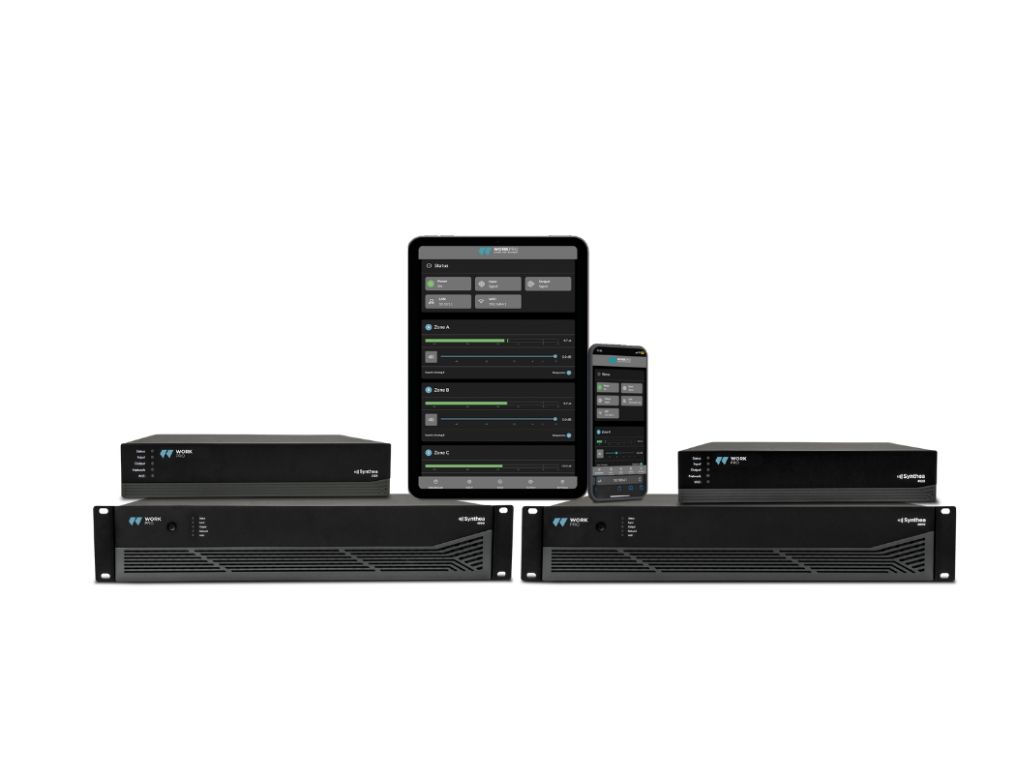

- Control from it´s own WAP Access Point without the need for software downloads
- Internal DSP matrix with 4 mono or 2 stereo inputs, 2 or 4 zone output and S/PDIF link to connect to other amplifiers
- Class D amplifier
Measures (Box) (m)
0.49 x 0.29 x 0.09
| Channels | 4 LoZ / 2 HiZ |
| Low Impedance Power | 4 x 125 W @ 4 Ohm/ 4 x 125W @ 4 |
| L100V Power | 2 x 250 W/ 2 x 250W |
| Audio input | 4 x Euroblock (Balanceadas) o 4 RCA (Desbalanceadas) IN/OUT SPDIF RCA/ 4 x Euroblock (Balanced) o 4 RCA (Unbalanced) IN/OUT SPDIF RCA |
| Frequency Response | 20 Hz-20 kHz/ 20Hz-20kHz |
| S/N Rate | >106 dB |
| Crossover | Butterworth, Bessel, Linkwitz-Riley |
| Equalization | Parametric 10 bandas, LPF, HPF, BPF |
| Input power | AC 100/240V, 50/60Hz, 75W |

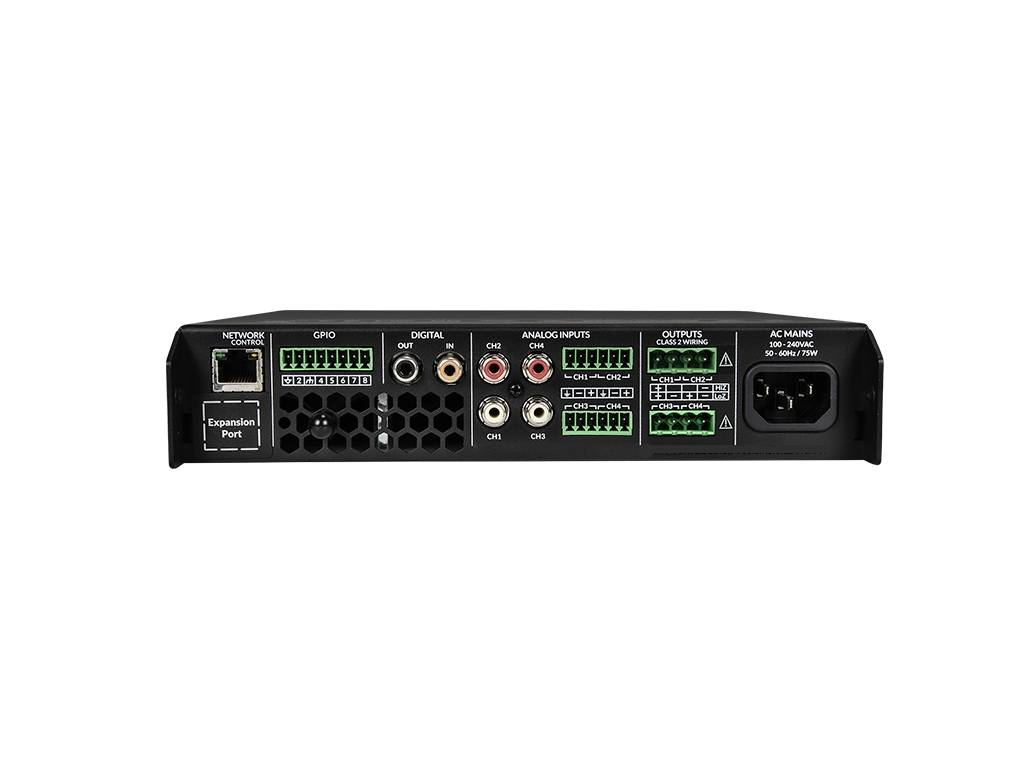

| Connections | Euroblock/RCA Inputs, Euroblock Speaker Output, Euroblock GPIO, RJ45, RCA S/PDIF IN/OUT |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.49 | 0.29 | 0.09 | 3.00 |
| Master Carton | 0.51 | 0.32 | 0.40 | 12.00 |
