Sound Amplifiers
SYNTHEA 2125
#51SYN001
2x125W @4 ohm / 1x250W (100V/Bridge@8 Ohm) amplifier/matrix. DSP. Wi-fi control, Ethernet. GPIO
Compact two-channel 4 ohm installation amplifier (up to 125W per channel) or 250W on a 100V/Bridge@8 Ohm line output. Digital signal input and output for easy interconnection without conversions. Dedicated DSP with full connectivity and control via stand-alone Wi-Fi. Ethernet and GPIO
Main information
- 2x125W @ 4Ohm, 1x250W @ 4Ohm Bridge, 1x250W (100V/Bridge@8 Ohm)
- Control from it´s own WAP Access Point without the need for software downloads
- Internal DSP matrix with 4 mono or 2 stereo inputs, 1 or 2 zone output and S/PDIF link to connect to other amplifiers
- Class D amplifier
Measures (Box) (m)
0.36 x 0.29 x 0.09
| Channels | 2 LoZ / 1 HiZ |
| Low Impedance Power | 2 x 125 W @ 4 Ohm/ 2 x 125W @ 4 |
| L100V Power | 1 x 250 W/ 1 x 250W |
| Audio input | 4 x Euroblock (Balanceadas) o 4 RCA (Desbalanceadas) IN/OUT SPDIF RCA/ 4 x Euroblock (Balanced) o 4 RCA (Unbalanced) IN/OUT SPDIF RCA |
| Frequency Response | 20 Hz - 20 kHz/ 20Hz-20kHz |
| S/N Rate | >106 dB |
| Crossover | Butterworth, Bessel, Linkwitz-Riley |
| Equalization | Parametric 10 bands, LPF, HPF, BPF |
| Input power | AC 100/240V, 50/60Hz, 75W |

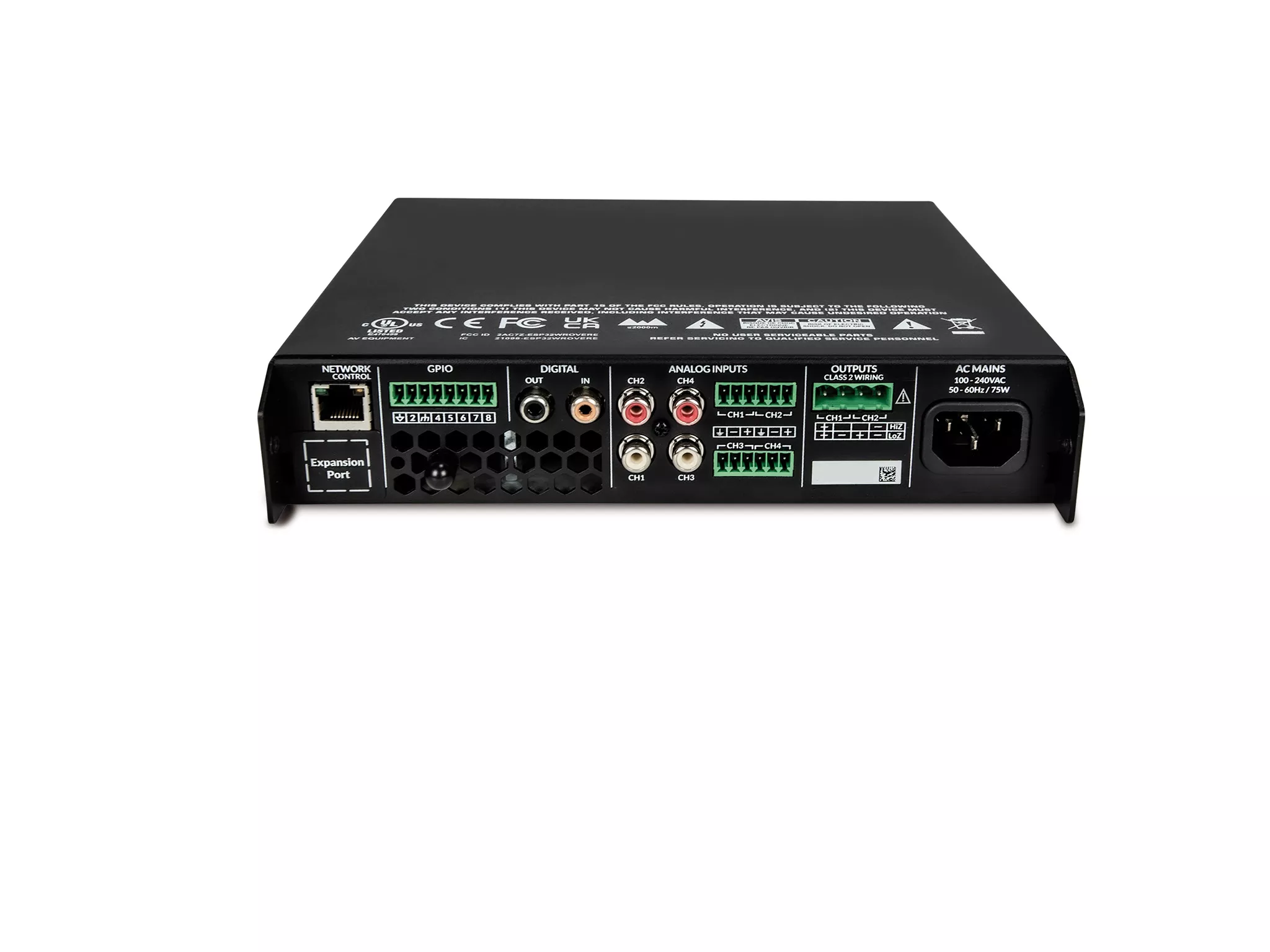

| Connections | Euroblock/RCA Inputs, Euroblock Speaker Output, Euroblock GPIO, RJ45, RCA S/PDIF IN/OUT |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.36 | 0.29 | 0.09 | 2.00 |
| Master Carton | 0.38 | 0.61 | 0.31 | 13.00 |
