Audio Projectors
SC 10 AH MKII
#82MEG036

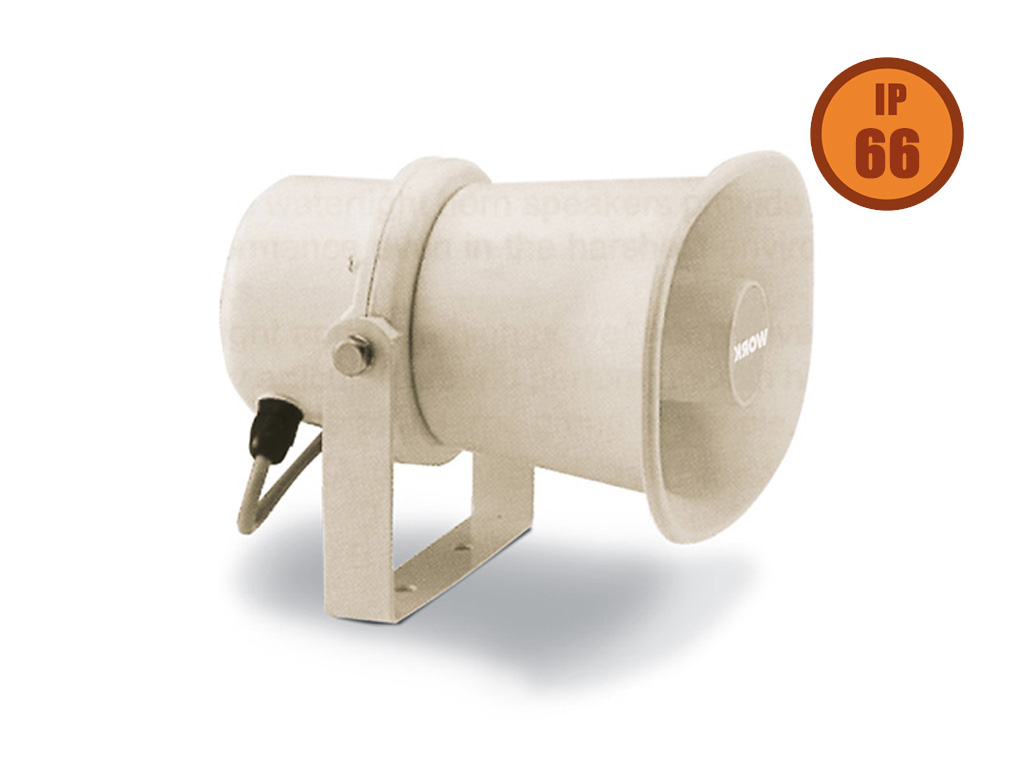

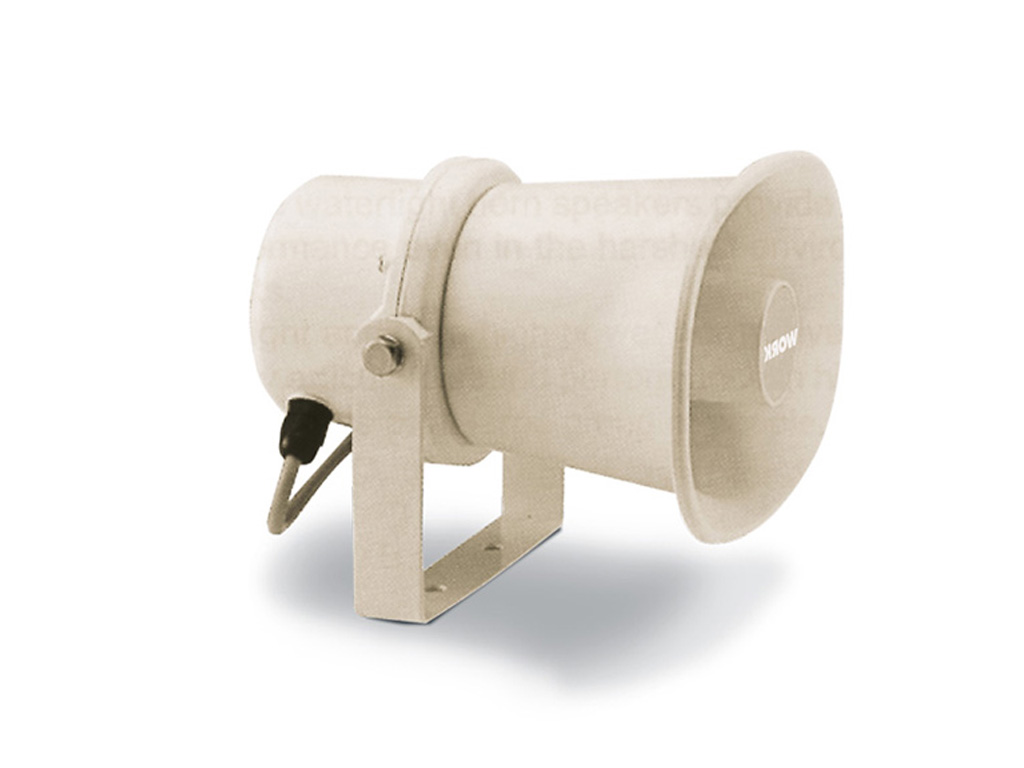

Exponential horn speaker. 10/5 @ L100V. Ø176 mm. ABS plastic.
SC 10 AH MKII is a sound projector with exponential horn, made of heavy duty ABS plastic, suitable for 70/100 Volt (10/5/3/1 W) line installations. Installation bracket included.
Main information
- ABS high resistance plastic.
- Low impedance and 70/100 V line installations.
- U-bracket included.
Product main measures (m)
0.18 x 0.18 x 0.18
| Type | Exponential projector |
| L100V Power | 10 W (1 kohm) / 5 W (2 kohm) / 10 W (1 kohm) / 5 W (2 kohm) |
| L70V Power | 5 W (980 ohm) / 2,5 W (1k9 ohm) / 5 W (980 ohm) / 2,5 W (1k9 ohm) |
| Sensitivity (1W @ 1m) | 93 dB |
| SPL Max | 103 dB |
| Frequency Range | 315 Hz - 12.5 KHz |
| Enclosure material | ABS |
| Colour | White (RAL 1002) |
| IP Protection | IP66 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.18 | 0.18 | 0.18 | 1.00 |
| Box | 0.14 | 0.18 | 0.21 | 1.40 |
| Master Carton | 0.39 | 0.44 | 0.45 | 16.00 |
