Sound Amplifiers

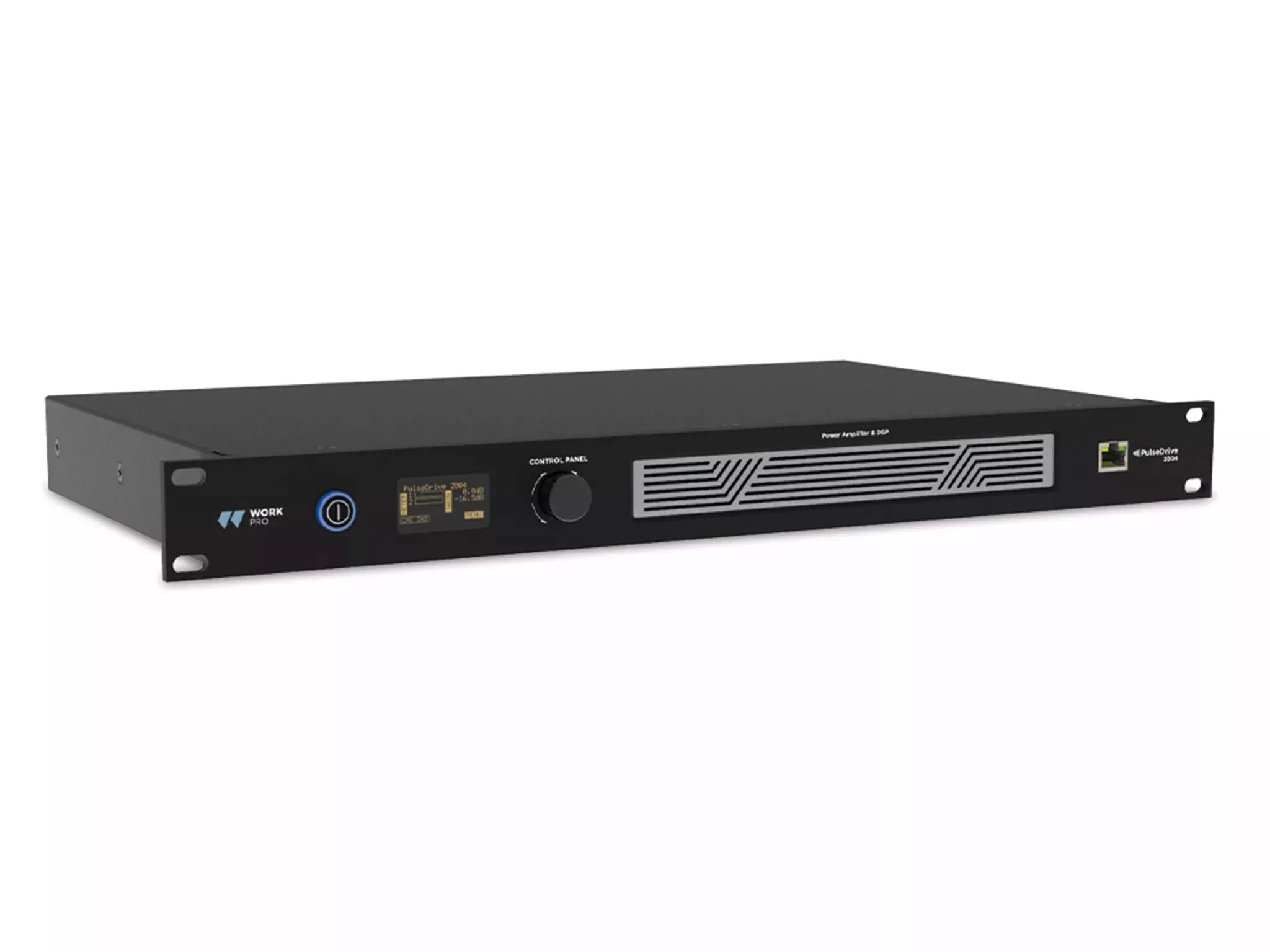

PULSE DRIVE 2004
#51ETP006
4 x 500 W @4 ohm amplifier. Class D. DSP. PC control, Ethernet.
PULSE DRIVE 2004 is a 2-channel Class D amplifier that delivers 500W per channel at 4 Ohms, providing ample power for a wide range of speaker configurations and advanced digital signal processing (DSP) allowing users to precisely adjust parameters such as EQ delay, and compression for optimal sound in any environment. The unit also supports bridge mono operation, delivering 2 x 1000W for subwoofer applications, making it a versatile tool for different audio setups. With a robust protection system that includes thermal, short-circuit, and power-on/off muting safeguards, the PULSE DRIVE Series ensures reliability even in demanding conditions.
Main information
- Class D amplifier
- DSP and PC control
- 8 bands EQ / channel
- Filters: HPF, LPF, Compressor and Noise Gate
| Input Channels | 4 |
| Low Impedance Power | 4 x 500 W @ 4 Ohm |
| Audio input | 4 x XLR 3 |
| Amplified output | 4 x XLN4 |
| Frequency Range | 20 Hz - 20 kHz |
| THD | <0.15% |
| Equalization | Parametric 8 bands / channel |
| Input filter | HPF, LPF, Compressor and Noise Gate |
| Control software | YES |
| Control protocols | UDP |
| Power supply | 110-240 V / 50-60 Hz |
| Dimensions | 483 x 44 x 280 mm/ 483 x 44 x 280 mm 19" 1U |
| Weight | 6 Kg |
| Consumption | 1300 W/ 1300W |
