PULSE DRIVE 1002
#51ETP003
2 x 500 W @4 ohm amplifier. Class D. DSP. PC control, Ethernet.
PULSE DRIVE 1002 is a 2-channel Class D amplifier that delivers 500W per channel at 4 Ohms, providing ample power for a wide range of speaker configurations and advanced digital signal processing (DSP) allowing users to precisely adjust parameters such as EQ delay, and compression for optimal sound in any environment. The unit also supports bridge mono operation, delivering 1000W for subwoofer applications, making it a versatile tool for different audio setups. With a robust protection system that includes thermal, short-circuit, and power-on/off muting safeguards, the PULSE DRIVE Series ensures reliability even in demanding conditions.
Main information
- Class D amplifier
- DSP and PC control
- 8 bands EQ / channel
- Filters: HPF, LPF, Compressor and Noise Gate
| Type | D Class |
| Amp Channels | 2 |
| W/Ch @ 8 Ohm | 250 W |
| W/Ch @ 4 Ohm | 500 W |
| W/Bridge @ 8 Ohm | 1000 W |
| THD+N | <0,15% |
| S/N Rate | >95 dB |
| Damping Factor | >180 |
| Input Sensitivity | 1 V |

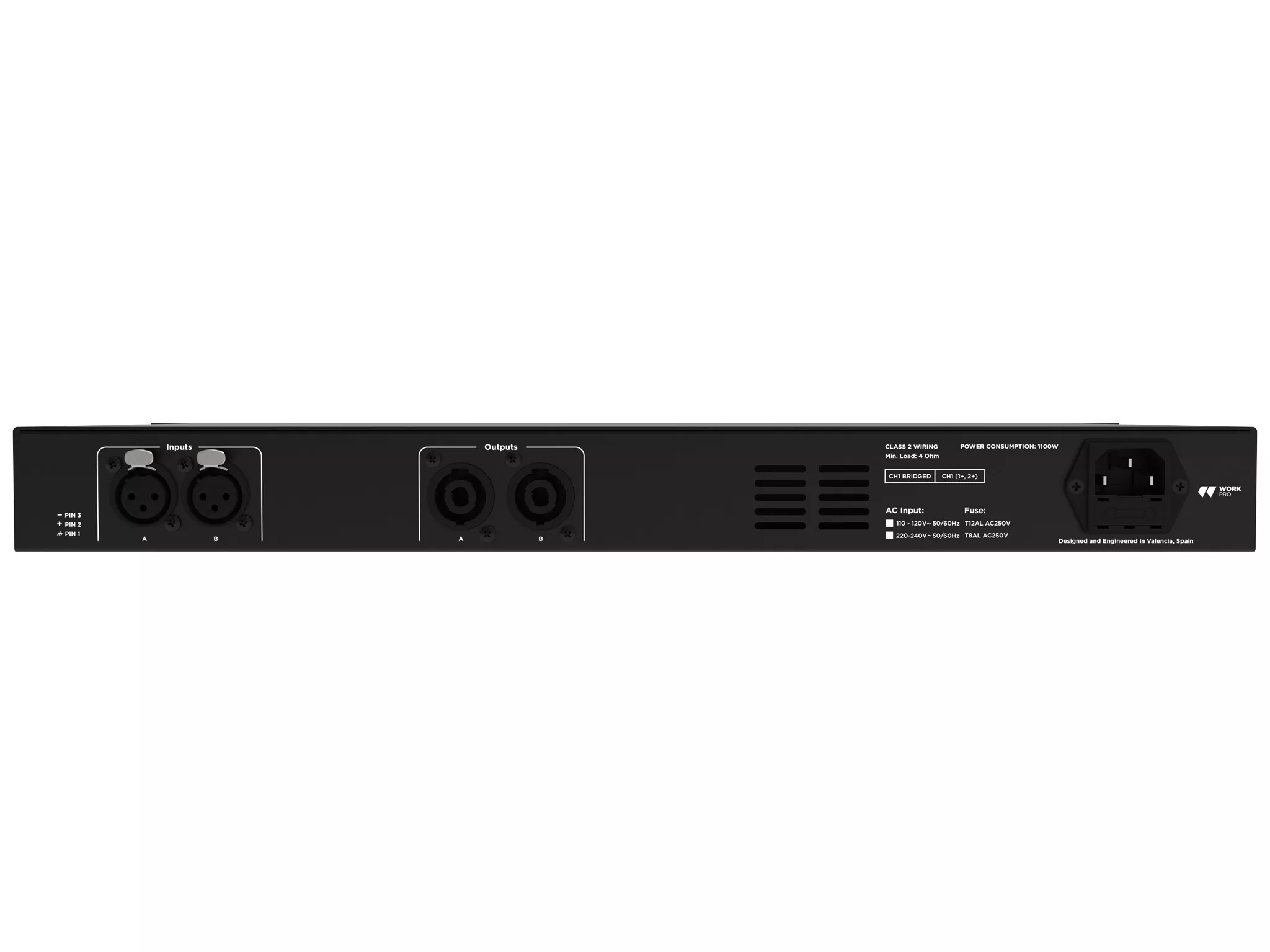

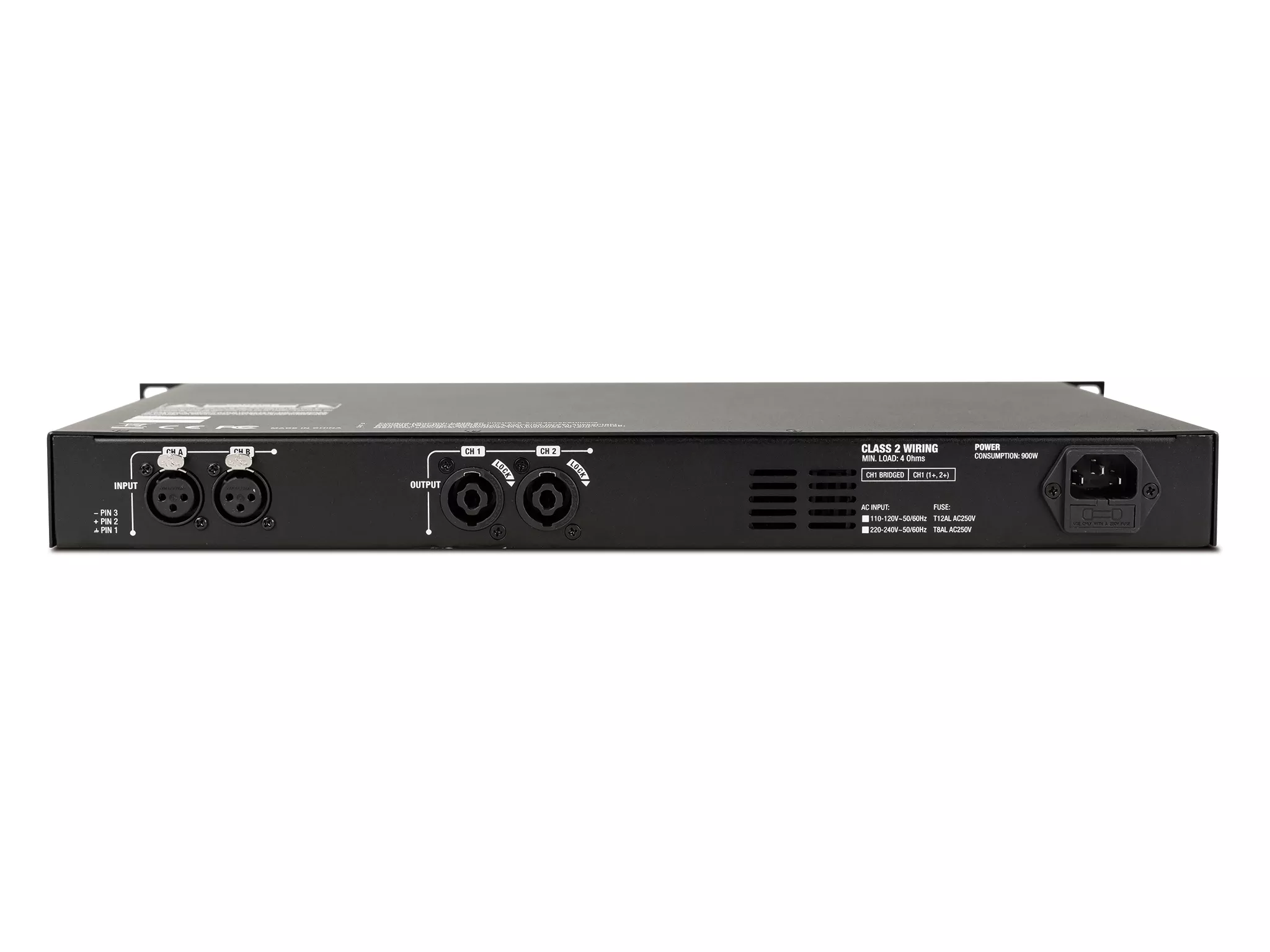

| Power Connector | IEC |
| Input connector | XLR3 |
| Output Connector | XLN4 |
| Protections | Short circuit, DC, open circuit, on/off, mute, overvoltage, temperature, VHF, and RF. |
| Other Information | 70 V / 100 V Line Preset |
| DSP Functions | HPF / LPF / Parametric EQ / Compressor / Noise Gate / Delay |
| Control | Software / UDP Commands / Menu Display |
| Weight(kg) | |
|---|---|
| Product | 4.70 |
