Audio Projectors
PH 30/BT
#82MEG144

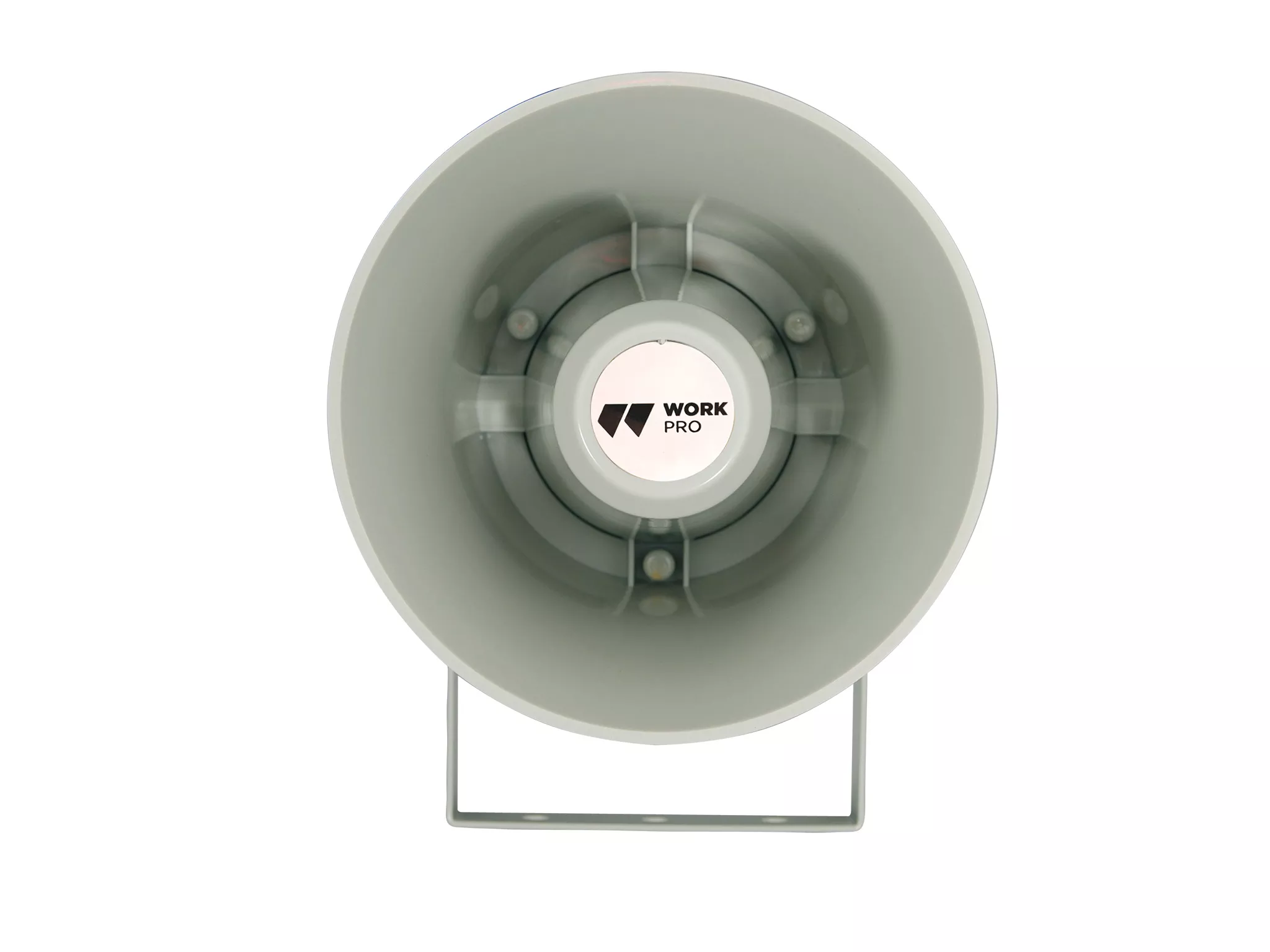

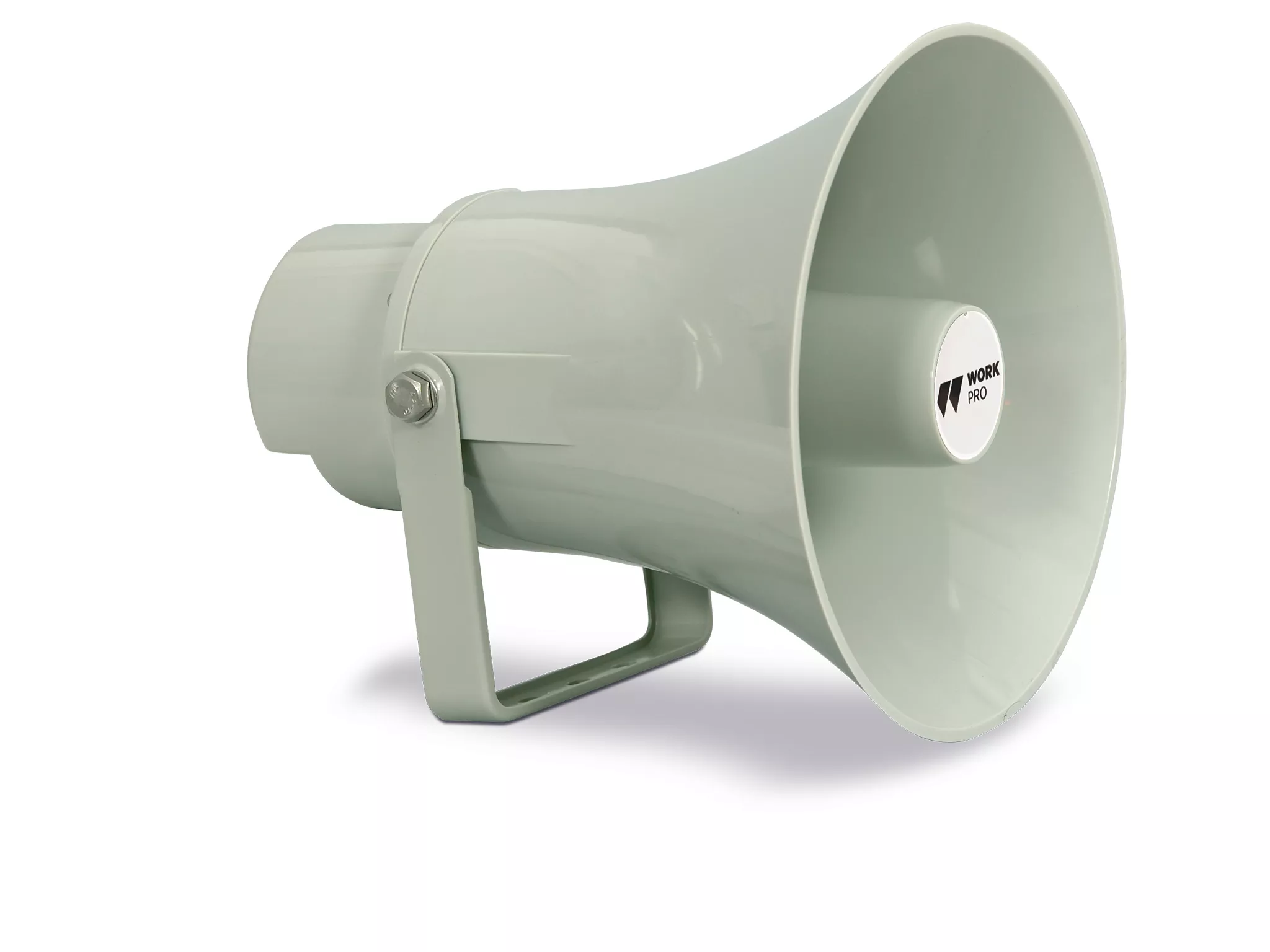

Exponential horn speaker. 30 W @ 8 Ohm. 30/15/7.5/3.75 W @ L100V. Ø246 mm. ABS plastic.
PH 30/BT is a sound projector with exponential horn, suitable for low impedance (30 W @ 8 Ohm) or 100 volt in-line installations, (30/15/7.5/3.75 W). Installation bracket included.
Main information
- Low impedance and 70/100 V line.
- High-strength ABS plastic.
- U bracket included.
Product main measures (m)
0.29 x
0.25 x
0.25
| Type | Exponential horn speaker |
| Transducer | |
| Low Impedance Power | 30 W @ 8 Ohm |

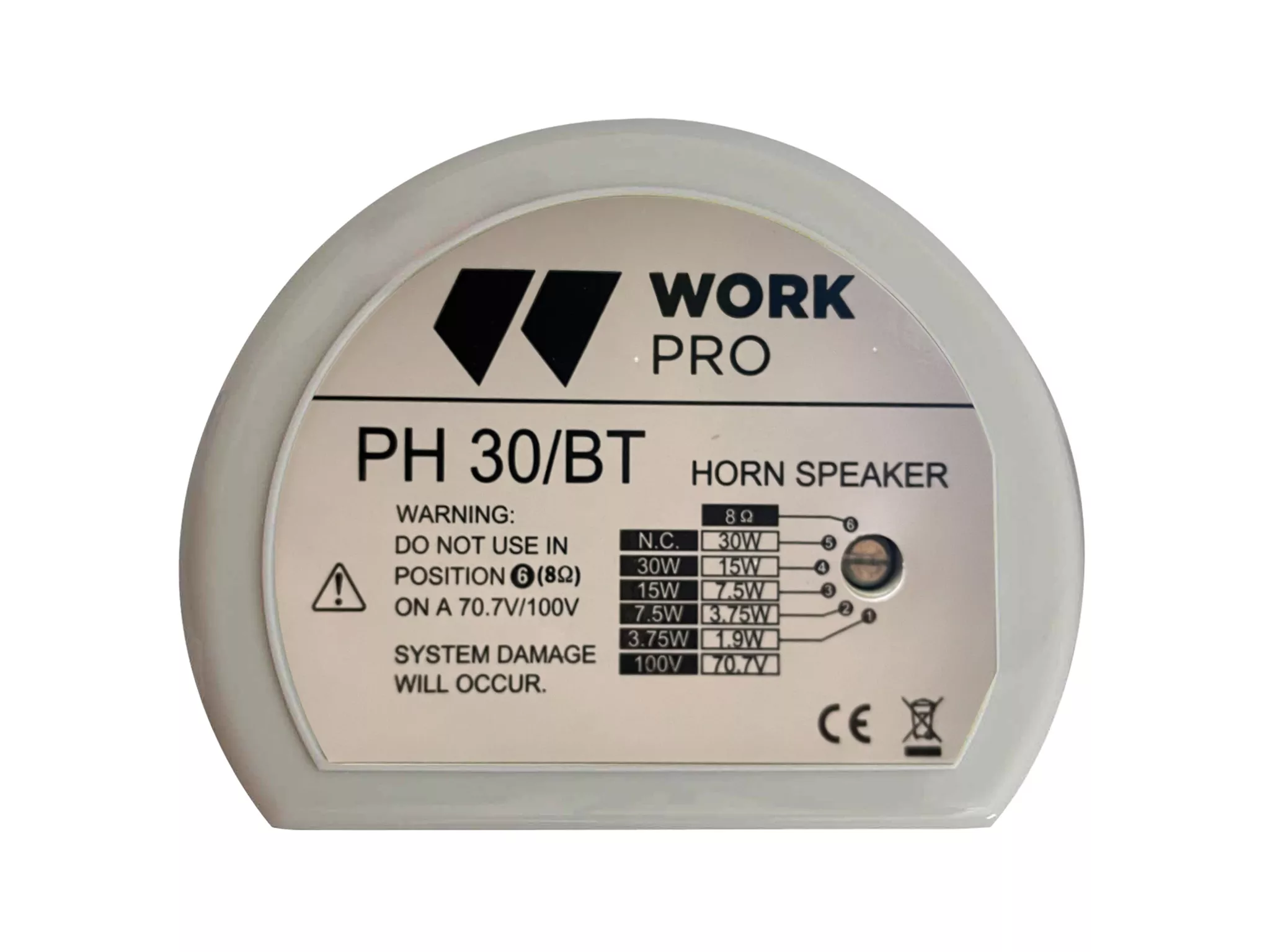

| L100V Power | 30 W / 15 W / 7.5 W / 3.75 W |
| L70V Power | 15 W / 7.5 W / 3.75 W / 1.9 W |
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W @ 1m) | 101 dB |
| SPL Max | 115 dB |
| Frequency Range | 350 Hz - 8 KHz |
| Connections | Connecting hose |
| Enclosure material | ABS |
| Inserts / Rigging | U-bracket included |
| Colour | White (RAL 9016) |

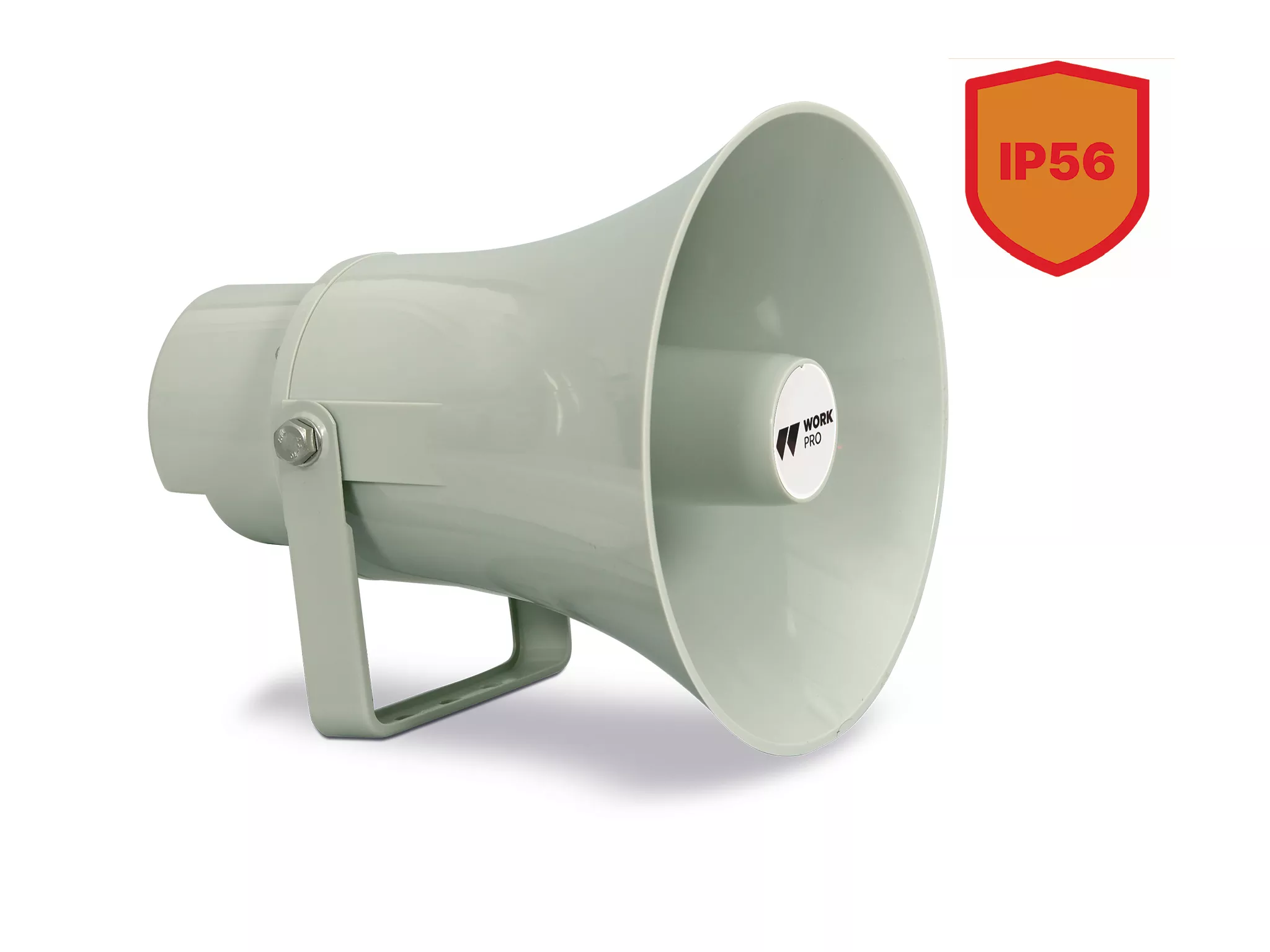

| IP Protection | IP56 |
| Dimensions | 246 x 292 mm/ 246 x 246 x 292 mm |
| Weight | 2.3 Kg/ 2,3 kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.29 | 0.25 | 0.25 | 2.30 |
| Box | 0.28 | 0.28 | 0.30 | 2.60 |
| Master Carton | 0.58 | 0.57 | 0.34 | 11.86 |
