Audio Projectors
PH 15/BT
#82MEG143
Exponential horn speaker. 15 W @ 8 Ohm. 15 / 7.5 / 3.75 / 1.9 W @ L100V. Ø200 mm. ABS plastic.
PH 15/BT is a sound projector with exponential horn, suitable for low impedance (15 W @ 8 Ohm) or 100 volt in-line installations, (15/7.5/3.75/1.9 W). Installation bracket included.
Main information
- Low impedance and 70/100 V line.
- High-strength ABS plastic.
- U bracket included.
Product main measures (m)
0.24 x
0.20 x
0.20
| Type | Exponential projector |
| Low Impedance Power | 15 W @ 8 Ohm |

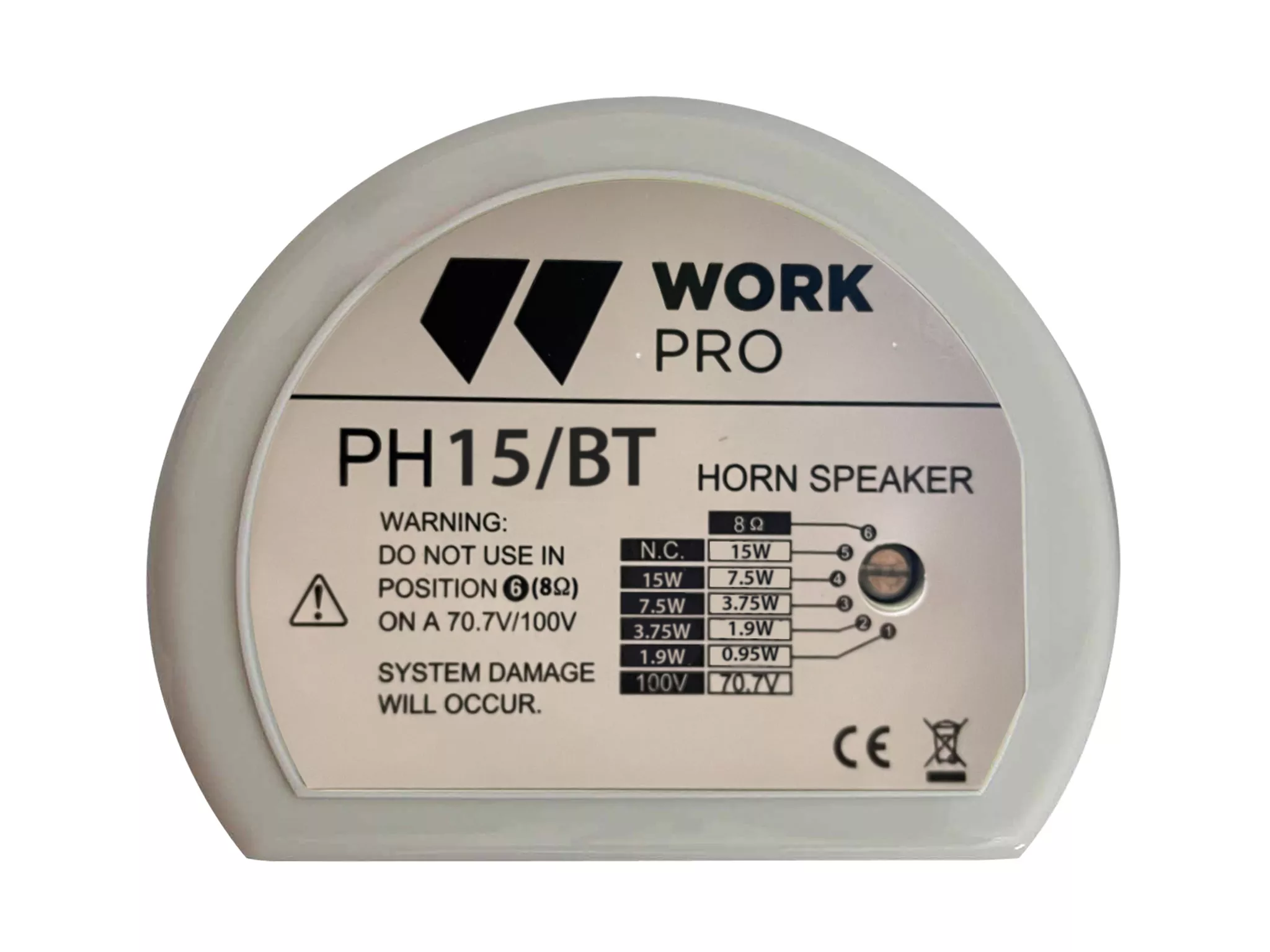

| L100V Power | 15 W (666 ohm) / 7.5 W (1k3 ohm) / 3.75 W (2k6 ohm) / 1.9 W (5k9 ohm) |
| L70V Power | 7.5 W (653 ohm) / 3.75 W (1k3ohm) / 1.9 W (2k5 ohm) / 1 W (4k9 ohm) |
| Transducer | Compression driver |
| Sensitivity (1W @ 1m) | 91 dB |
| SPL Max | 102 dB |
| Frequency Range | 300 - 8 KHz |
| Enclosure material | ABS |
| Inserts / Rigging | U bracket included |
| Colour | White (RAL 9016) |
| IP Protection | IP56 |
| Dimensions | 200 x 235 mm/ 200 x 200 x 235 mm |
| Weight | 1.9 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.24 | 0.20 | 0.20 | 1.90 |
| Box | 0.21 | 0.21 | 0.25 | 1.90 |
| Master Carton | 0.66 | 0.44 | 0.53 | 20.60 |
