100v Amplifiers
PA 4150 L
#82MEG427
Amplifier. 4 x 150 W @ L70 / 100V. Switch mode power supply. Volume control on each channel. 1 HU rack 19''.

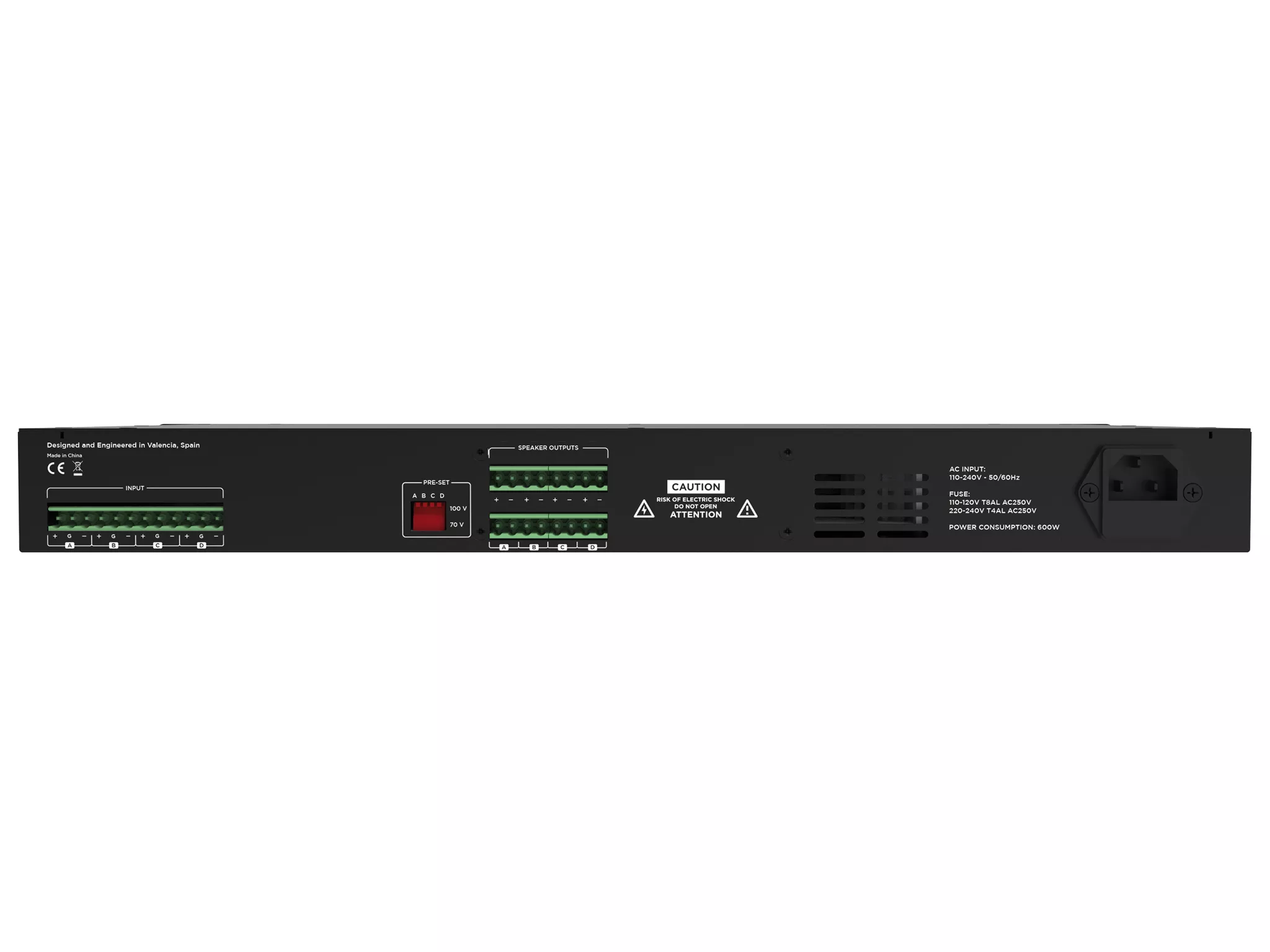

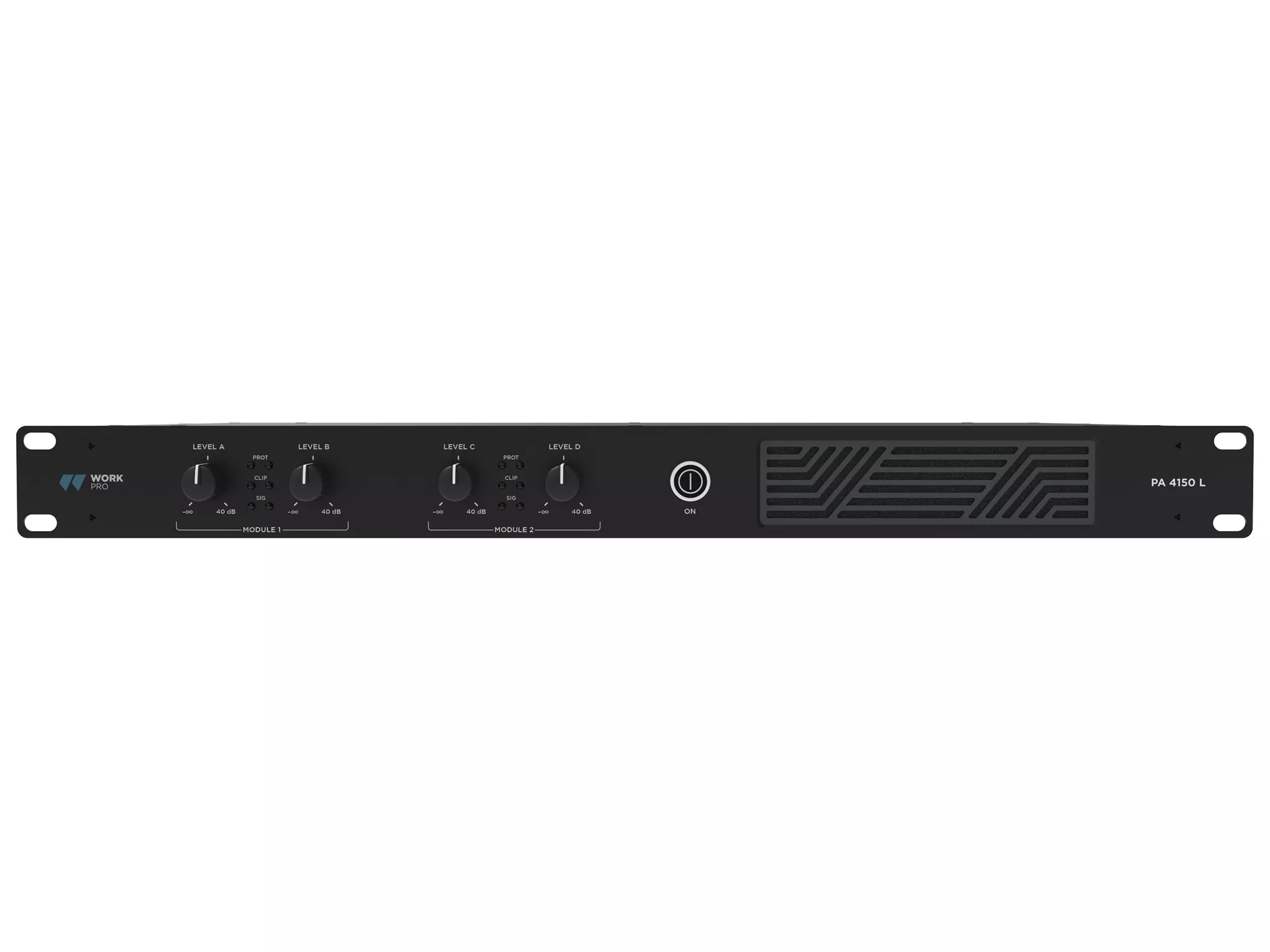

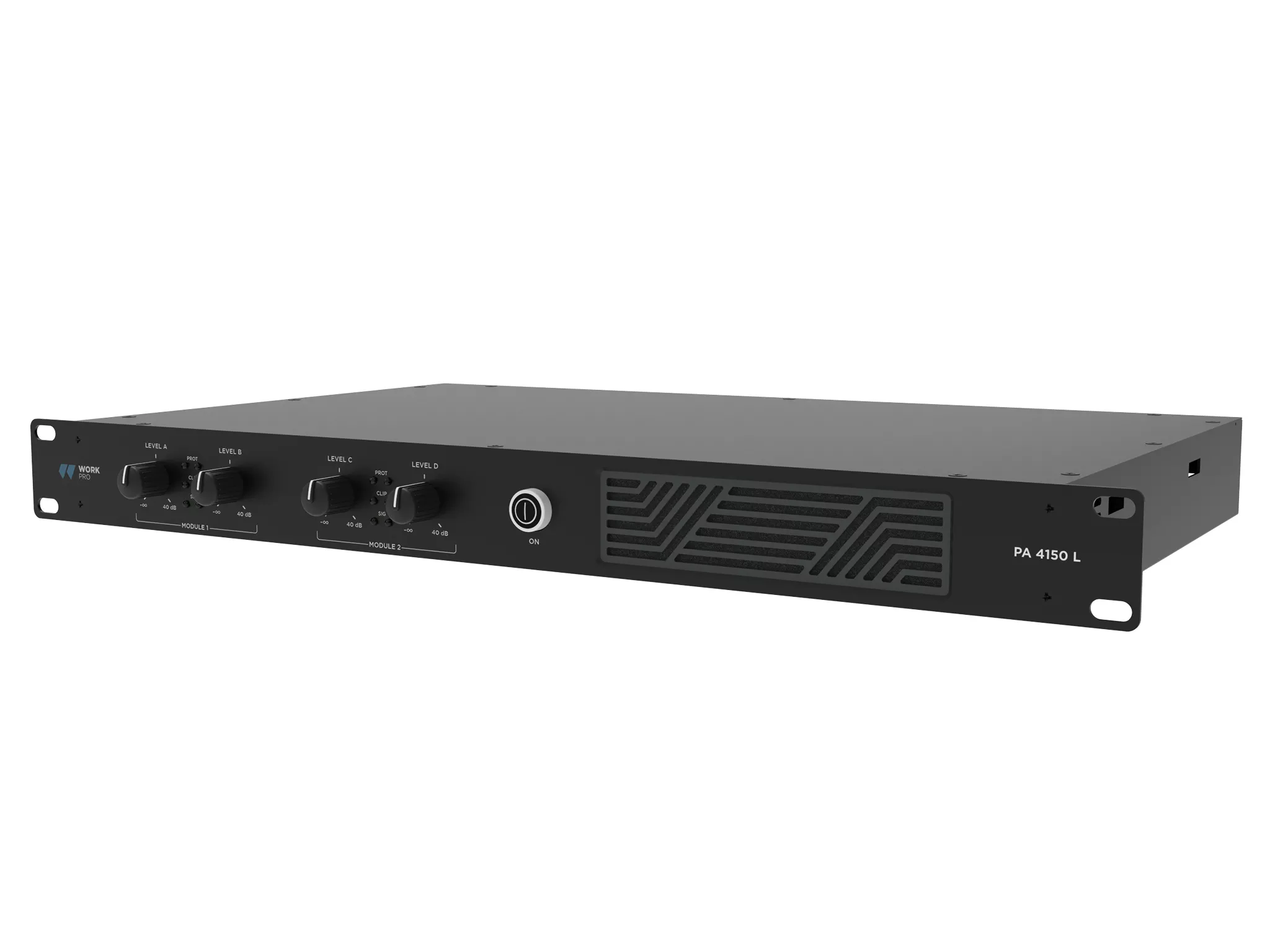

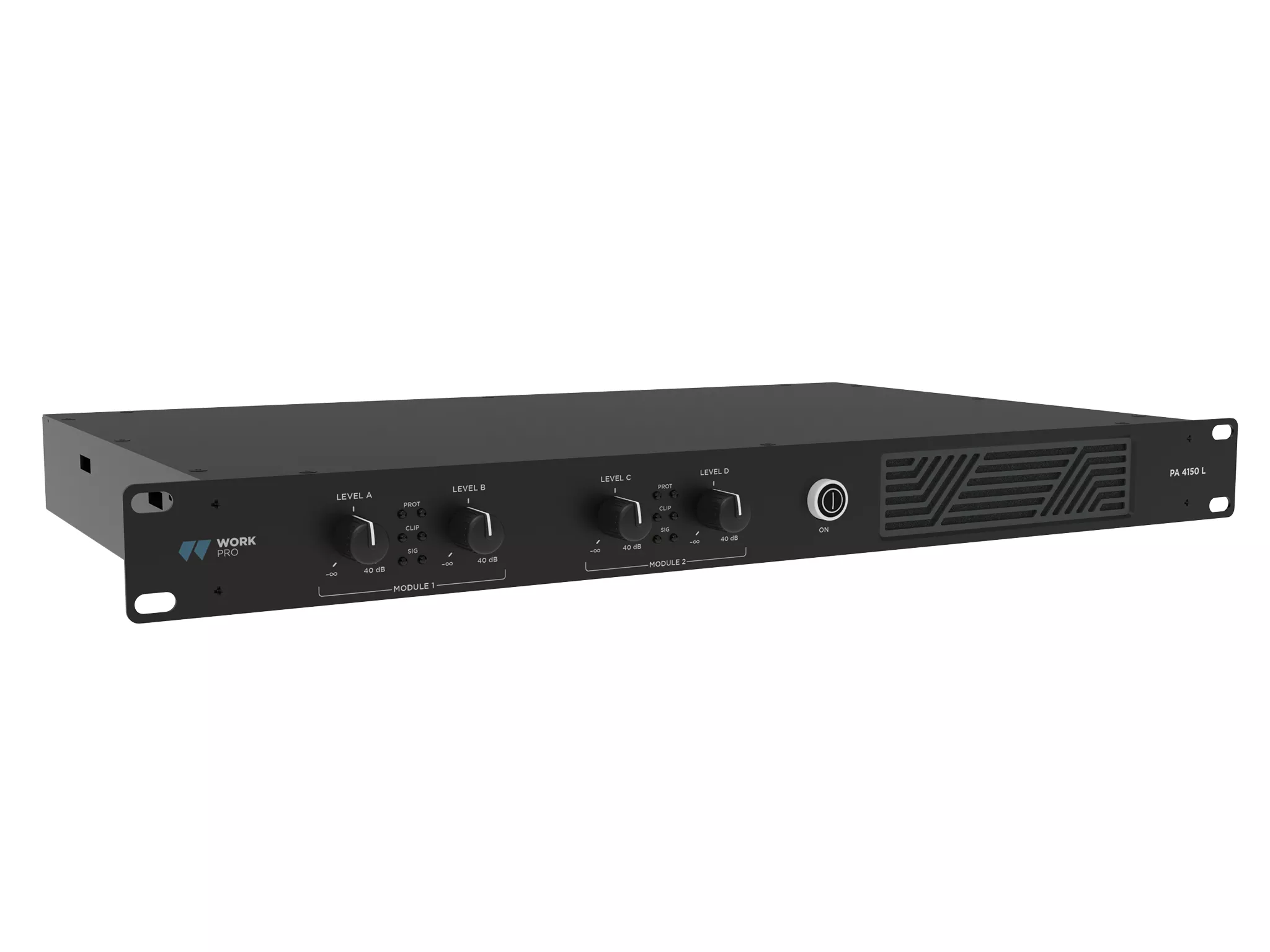

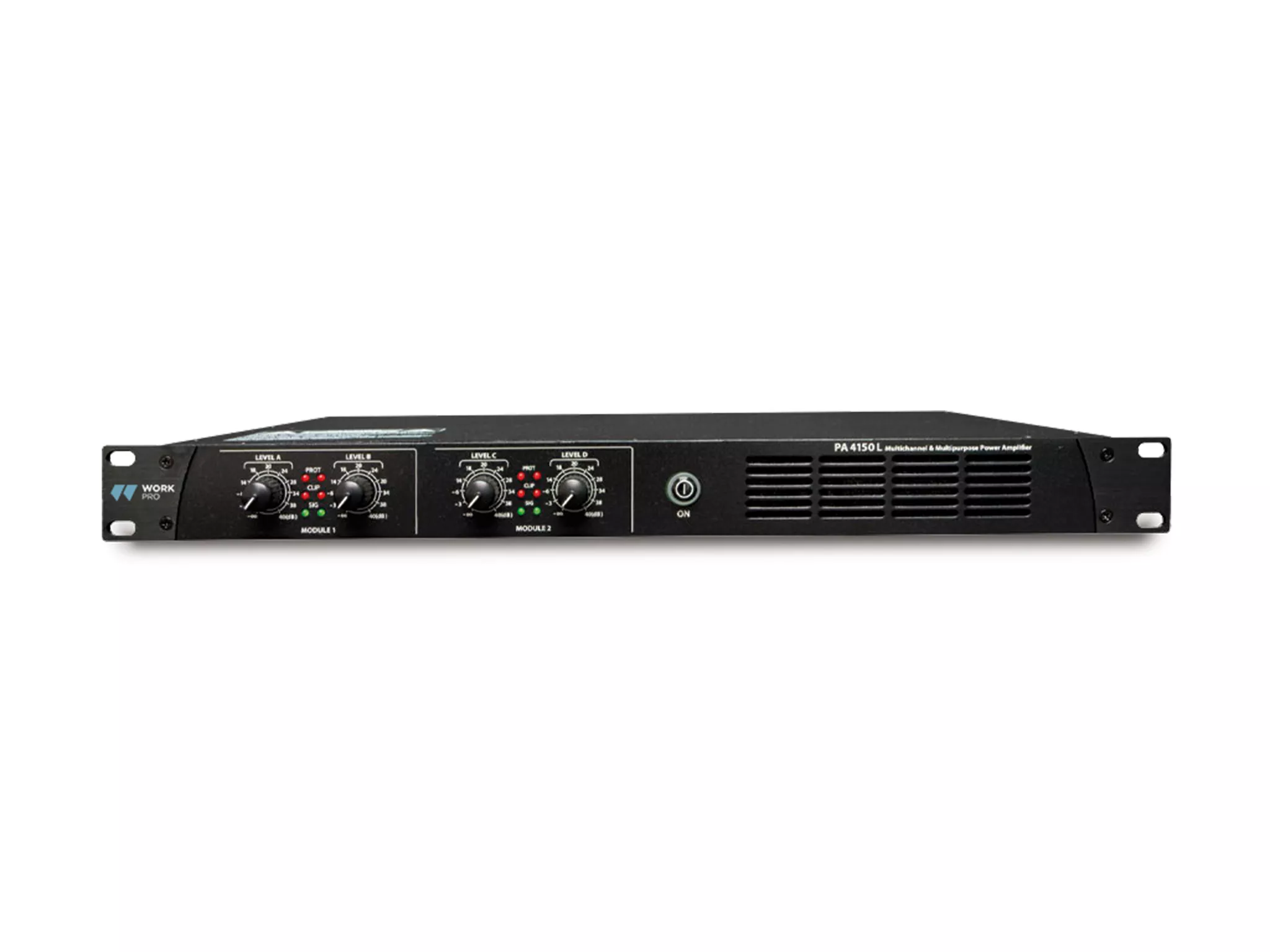

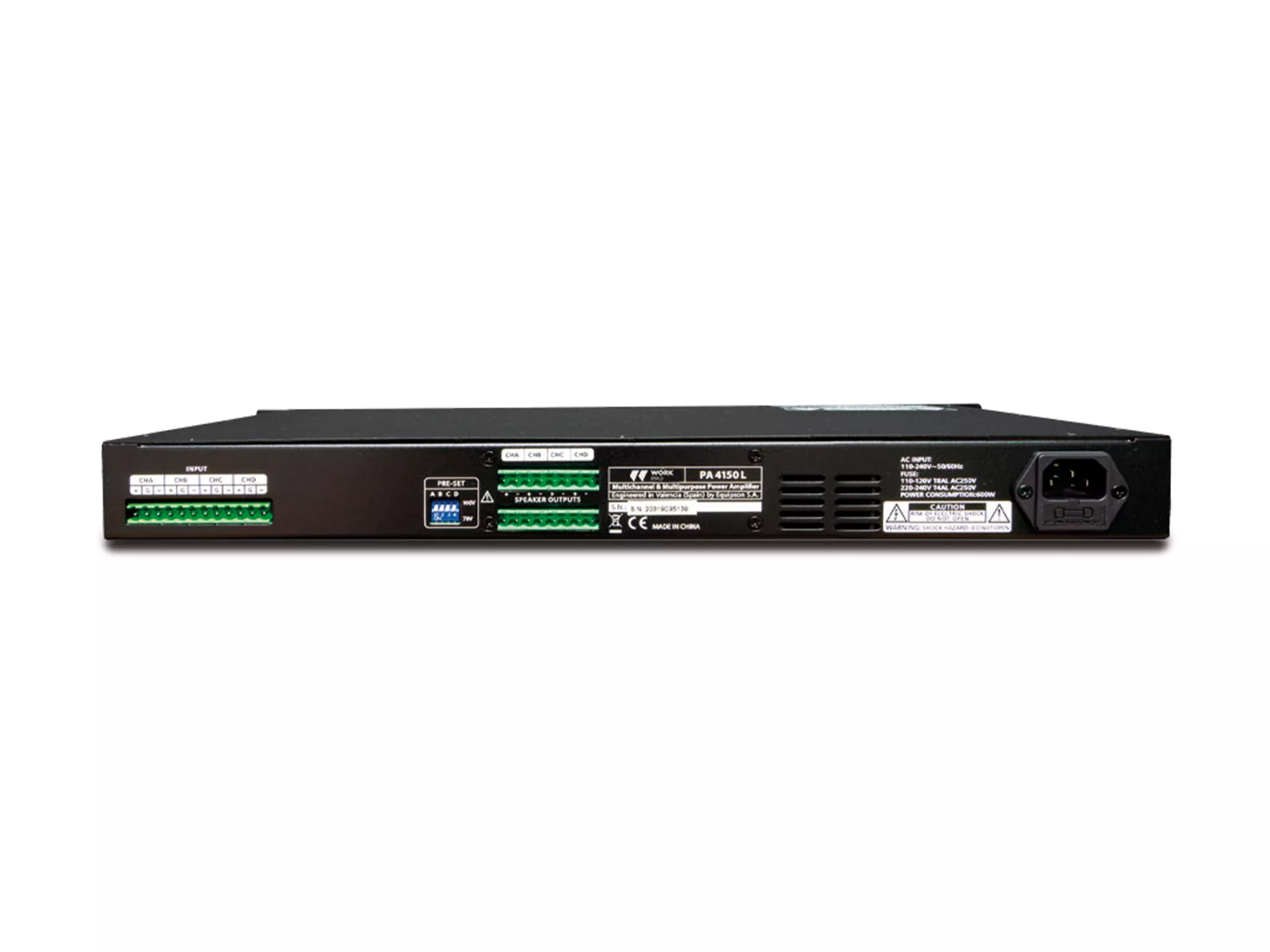

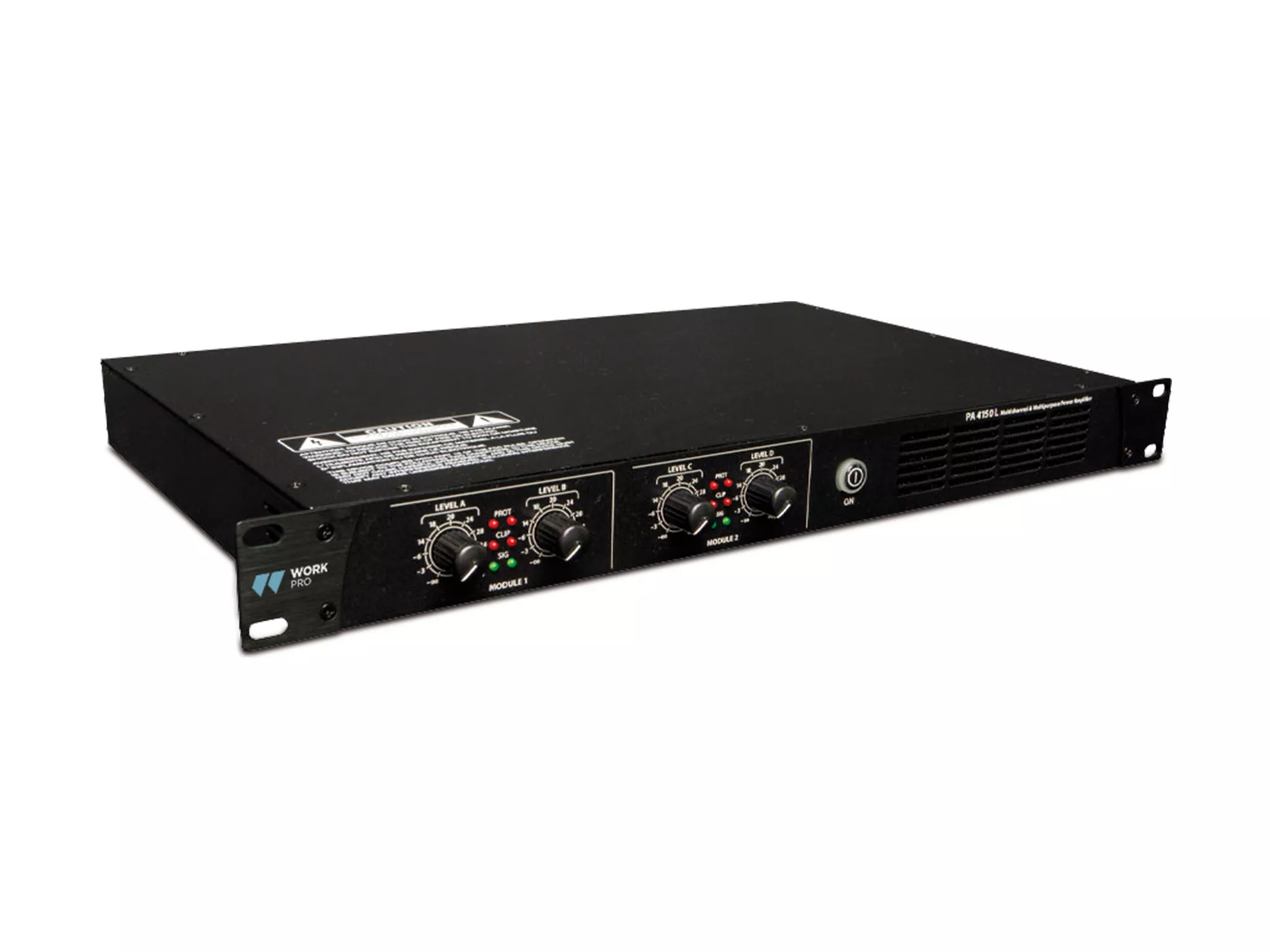

PA 4150 L is an installation amplifier with 4 channels of 150W each, class D. It can work both in 70V and 100V line (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip, and protect). The PA 4150 L amplifier integrates various protections such as short circuit, thermal, ultrasound and RF. Its inputs and outputs are connected through Euroblock terminals, and it has dimensions of 1 HU rack 19''.
Main information
- Switch mode power supply.
- 70 / 100V operation (selectable).
- Volume control on each channel.
- 1 HU rack 19 inch.
Product main measures (m)
0.29 x
0.48 x
0.04
| Type | 70/100 V line |
| Power | 4 x 150 W |
| Input Sensitivity | 1V (±0.1V) / 1V (±0.1V) |
| Input Impedance | 20 KOhm (balanceada) 10 KOhm (desbalanceada) / 20 KOhm (balanced) 10 KOhm (unbalanced) |
| Frequency Response | 100 Hz - 15 KHz |
| Gain | 40 dB / 40 dB |
| THD+N | < 0.1% |
| S/N ratio | > 95 dB |
| Damping Factor | > 200 |
| Crosstalk | > 70 dB |
| Connectors | INPUT and OUTPUT: Euroblock |
| Controls | Independent volume per channel |
| Protections | Short circuit, open circuit, overtemperature, ultrasonic and RF |
| Power supply | AC 110-240V, 50/60 Hz |
| Dimensions | 483 x 44 x 290 mm / 483 x 44 x 290 mm |
| Weight | 4.7 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.29 | 0.48 | 0.04 | 4.70 |
| Box | 0.38 | 0.55 | 0.11 | 5.96 |
| Master Carton | 0.39 | 0.47 | 0.57 | 24.94 |
