100v Amplifiers

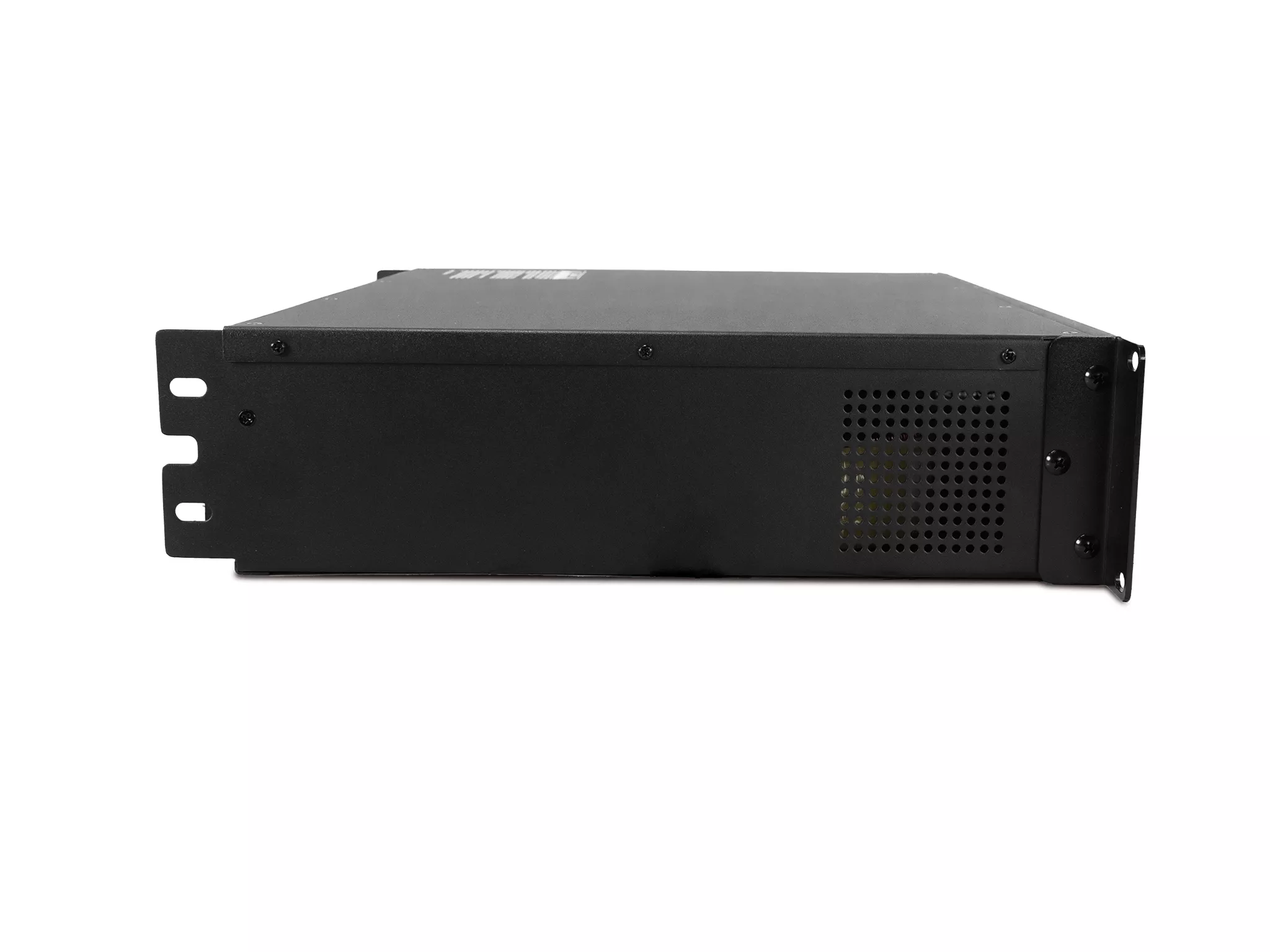

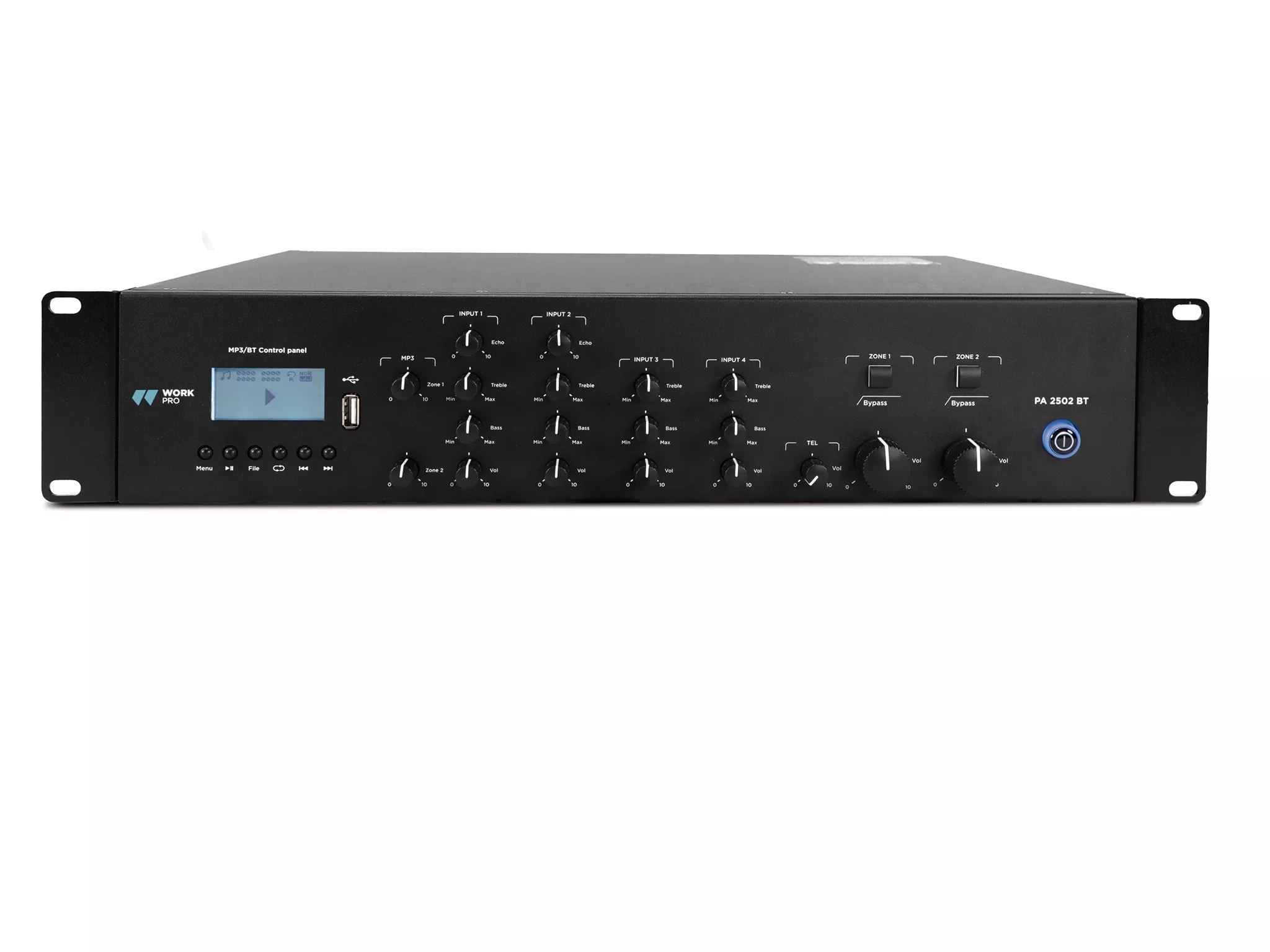

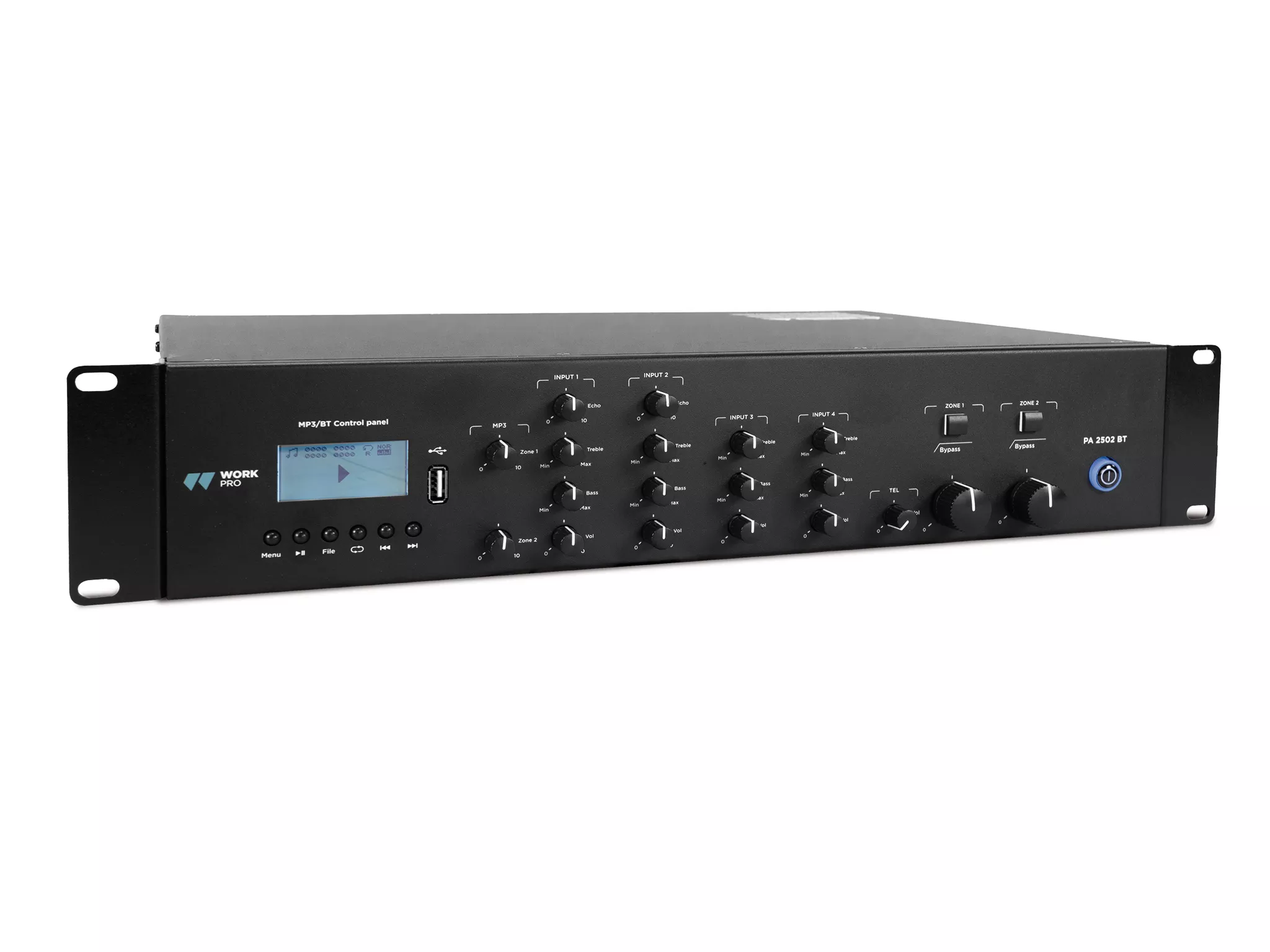

PA 2502 BT
#82MEG250
Amplifier with mixer/player. 2 x 250 W @ 4 Ohm, L70/100V. 2 zones. 4 MIC/LINE
PA 2502 BT is a 2-zone amplifier with 250 W each, for installation including a USB player and Bluetooth functionality. It incorporates 4 MIC/LINE inputs for audio control with independent volume control, master level control and bass/treble control. The inputs can be selected for phantom microphone power. Each of the outputs can be used with low impedance speaker (4-ohm load), or 70/100V line. There is a line out output for sending the mix to other amplifiers and a 1 W monitor output for connecting a loudspeaker for monitoring purposes. In addition, for maximum safety, it includes a TEL connection for emergency announcements and priority contact.
Main information
- 2-zones installation amplifier
- 2 x 250 W @4 Ohm, L70/100V.
- USB/Bluetooth
- 4 MIC/LINE/PH inputs
| Type | Installation amplifier |
| Audio input | 4 MIC/LINE |
| Output | 2 zonas/ 2 zones |
| Power | 2x 250W @ 4 ohm L70/100V |
| Input Sensitivity | -40dBv (MIC), -5 dBv (LINE) |
| Frequency Response | 80 Hz - 18 kHz |
| THD+N | <1 % |
| S/N ratio | >65dB (MIC) >75 dB (LINE) |
| Audio interface | MP3 USB/BT |
| Connectors | COMBI (input) Terminales (output) |
| Controls | 2x control de tono y ganancia por entrada, 2x echo, control zona y TEL/ 2x tone controls & gain per input. 2x echo entrada, 2x echo. 2x zone gain and TEL gain |
| Phantom Power | 18V |
| Other functions | TEL terminals, 1W monitor output, Priority terminals & TEL paging |
| Power supply | 110V - 220V 50 /60 Hz |
| Consumption | 1000W |
