100v Amplifiers
PA 2120 L
#82MEG212
Amplifier. 2 x 120 W @ L70 / 100V. Switch mode power supply. Volume control on each channel. 1 HU Rack 19''.

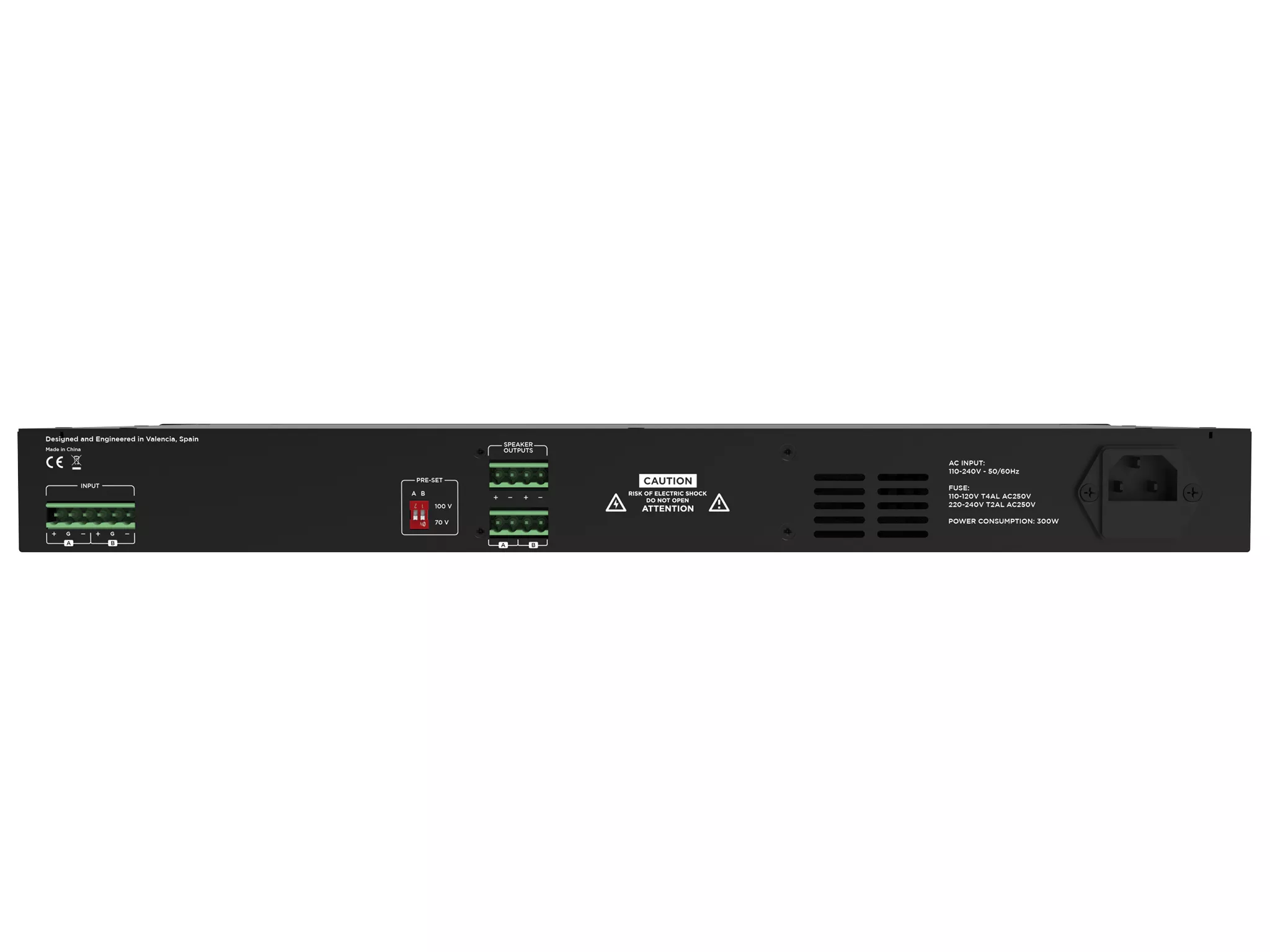

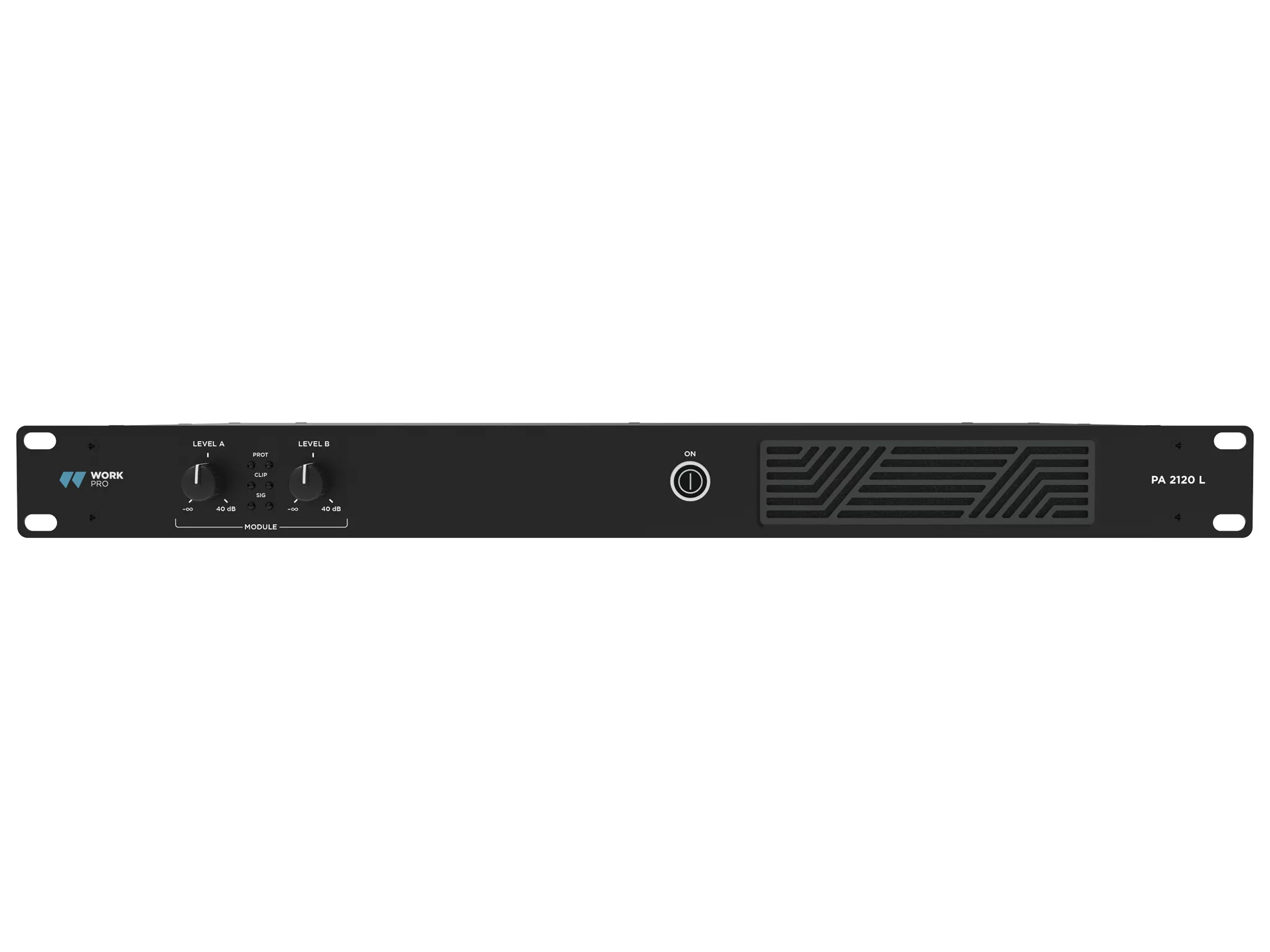

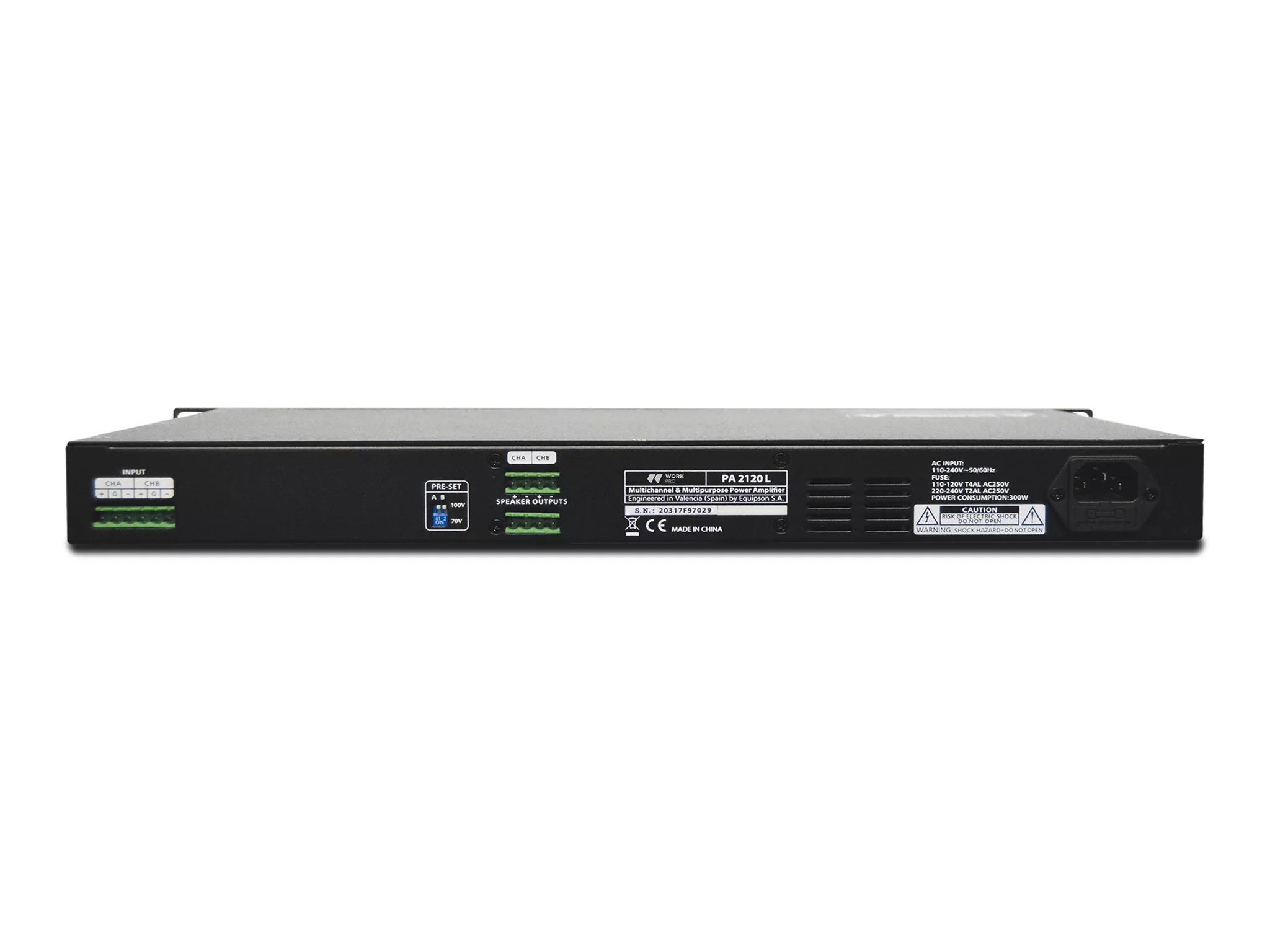

PA 2120 L is an installation amplifier with 2 channels of 120W each, class D. It can work both in 70V and 100V line (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip, and protect). The PA 2120 L amplifier integrates various protections such as short circuit, thermal, ultrasound and RF. Its inputs and outputs are connected through Euroblock terminals, and it has dimensions of 1 HU rack 19 ''.
Main information
- Switch mode power supply.
- 70 / 100V operation (selectable).
- Volume control on each channel.
- 1 HU Rack 19 inch.
Product main measures (m)
0.27 x
0.48 x
0.04
| Type | 70/100 V line |
| Power | 2 x 120 W |
| Input Sensitivity | 1V (±0.1V) / 1V (±0.1V) |
| Input Impedance | 20kOhm (balanceada) 10kOhm (desbalanceada) / 20kOhm (balanced) 10kOhm (unbalanced) |
| Frequency Response | 100 Hz - 15 kHz |
| Gain | 40 dB |
| THD+N | < 0.1% |
| S/N ratio | > 95 dB |
| Damping Factor | > 200 |
| Crosstalk | > 70 dB |
| Connectors | IN and OUT: Euroblock |
| Controls | Independent volume per channel |
| Protections | Short circuit, open circuit, over temperature, ultrasonic and RF |
| Power supply | AC 110-240V, 50/60 Hz |
| Dimensions | 483 x 44 x 272 mm |
| Weight | 4 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.27 | 0.48 | 0.04 | 4.00 |
| Box | 0.34 | 0.54 | 0.11 | 5.14 |
| Master Carton | 0.39 | 0.56 | 0.47 | 21.54 |
