100v Amplifiers
PA 200 MX
#82MEG210
Amplifier. 2 x 100W @ 8 Ohm, 200W L70 / 100V. RJ45 (RS485). Bluetooth.

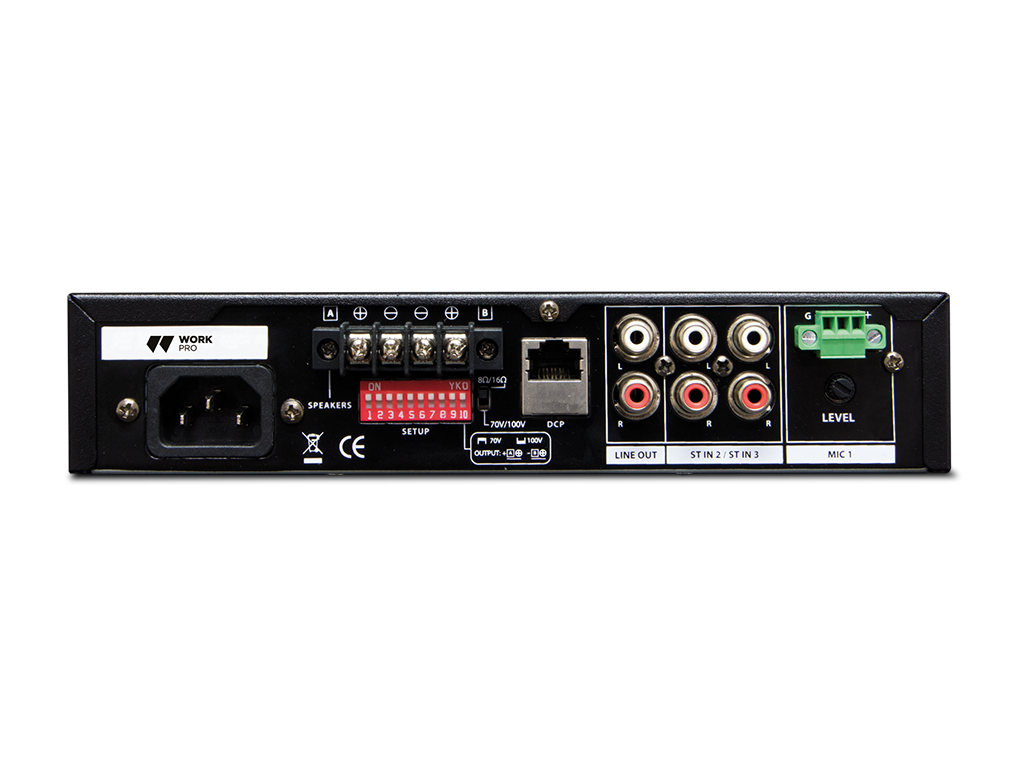

PA 200 MX is a 200 W amplifier for installation, which can work in low impedance or in 70/100 V line. It incorporates 3 LINE inputs (LINE 1 with BLUETOOTH functionality) with selector, volume, and 2 tone controls. It also has a microphone input with Euroblock connector. The rear panel has a dipswitch selector that allows selecting the operating mode (feedback suppression, microphone gain, microphone priority, stereo / mono input, low impedance or L70 / 100V), and an RJ45 connection that supports RS485 commands. from an external device.
Main information
- Switch mode power supply.
- 3 LINE input with selector and own volume.
- Bluetooth.
- RJ45 (RS485 commands).
Product main measures (m)
0.26 x
0.22 x
0.04
| Type | Low impedance / 8/16 Ohm), Line 70/100 V |
| Power | 2 x 100W @ 8 Ohm / 200W (70/100V Line)/ 2 x 100W @ 8 Ohm / 200W (70/100V Line) |
| THD+N | <0.1% @ 1 kHz, 15W, 8 Ohm / 16 Ohm, <0.2% 1 kHz, 30W, 70V / 100V |
| Frequency Range | 20 Hz - 20 KHz |
| Controls | Line volume, Mic gain, Tone control (bass, treble), Master volume, Function selector |
| Connections | Mic: 3 pin euroblock, Line in: RCA, Minijack, Line out: RCA, Amp out: terminals, RS485: RJ45 |
| Other functions | Bluetooth, RS485 commands, antifeedback, micro priority |
| Power supply | 100-240 V - 50/60Hz |
| Dimensions | 215 x 48 x 264 mm |
| Weight | 2.3 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.26 | 0.22 | 0.04 | 2.30 |
| Box | 0.10 | 0.10 | 0.10 | 4.00 |
| Master Carton | 0.39 | 0.66 | 0.37 | 30.20 |
PA 200 MX | Acoustic Simulator
Optimise your PA 200 MX with our Acoustic Simulator
With this online tool you can quickly design your PA system, calculating how many speakers and amplifiers you need and where to place them.
