Installation Loudspeakers
NGS 80 L
#50EBJ019

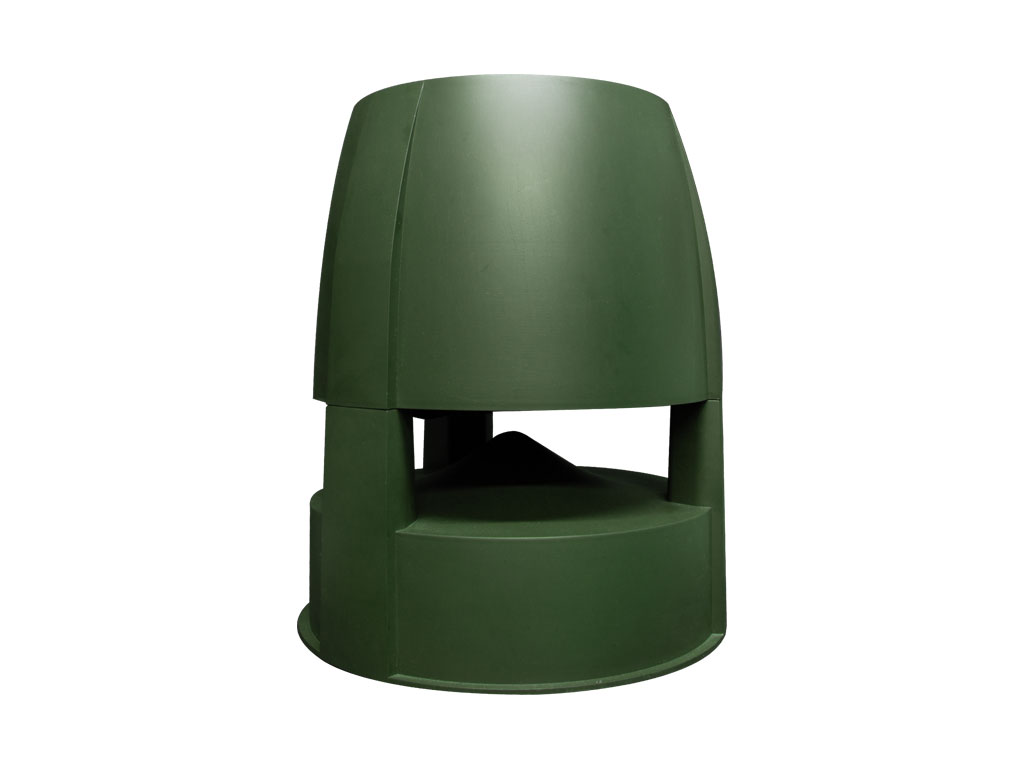

Garden speaker. 120 W @ 8 Ohm. 60/40/20 W @ L100V. 8'' Woofer + 1.4'' Tweeter. ABS plastic.
WORK PRO presents its series of garden speakers for low impedance installations. The series consists of the NGS 80 L model with its 2-way system, and the NGS 80 S which acts as a subwoofer. NGS 80 L has been designed to obtain an omnidirectional sound dispersion, covering a wide area with perfectly integrated elements.
Main information
- ABS high resistance plastic.
- Low impedance and 70/100 V line.
- Suitable for outdoor installation.
Product main measures (m)
0.34 x 0.34 x 0.40
| Type | 2 vías. Pasivo/ Passive. 2 ways |
| LF Transducer | Woofer 8" |
| HF Transducer | Tweeter 1.4" |
| Low Impedance Power | 60 Wrms @ 8 Ohm |

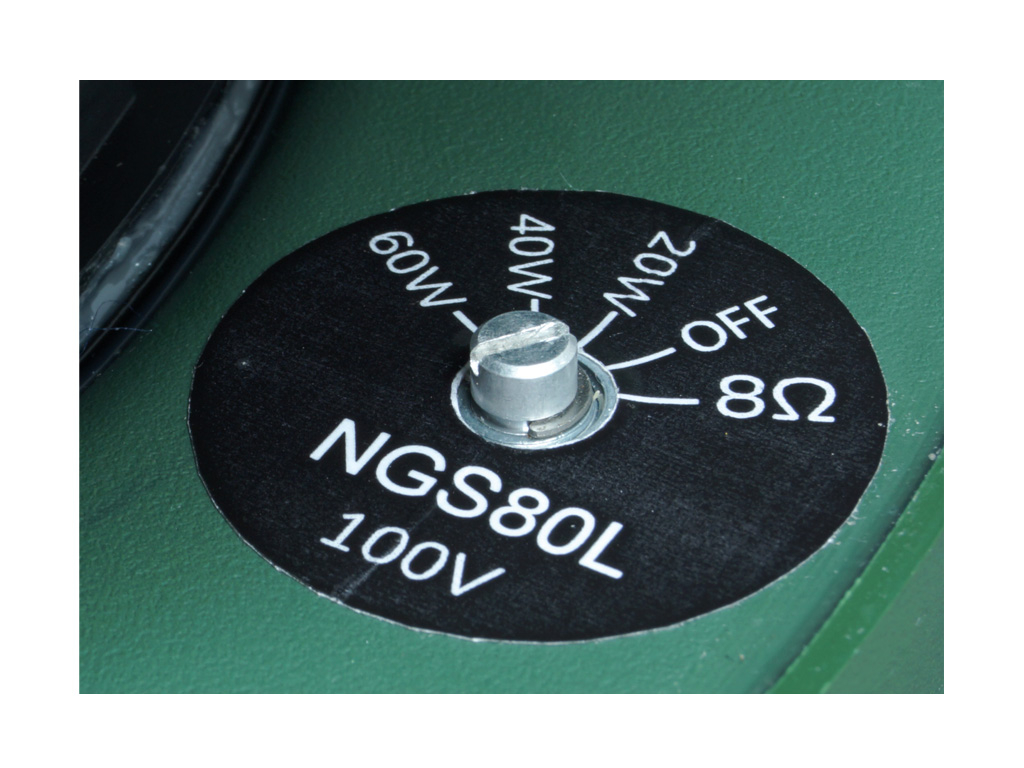

| L100V Power | 60 W / 40 W / 20 W |
| L70V Power | 40 W / 20 W / 10 W |
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W @ 1m) | 85 dB |
| SPL Max | 112 dB |
| Frequency Range | 53Hz/90 Hz - 22 KHz (con presets recomendados) / 53Hz/90 Hz - 22 KHz |
| Coverage | 360º |
| HPF filter recommended | Butterworth 24 dB/Oct, 50Hz |
| Enclosure material | ABS |
| Colour | Green |
| IP Protection | IP56 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.34 | 0.34 | 0.40 | 4.40 |
| Box | 0.36 | 0.36 | 0.44 | 7.00 |
