Installation Loudspeakers
NEO 6A
#50EBS119
#50EBS118
Active + passive loudspeaker 2 x 30 W RMS. 6.5'' Woofer + 1'' Tweeter. Sold in pairs.

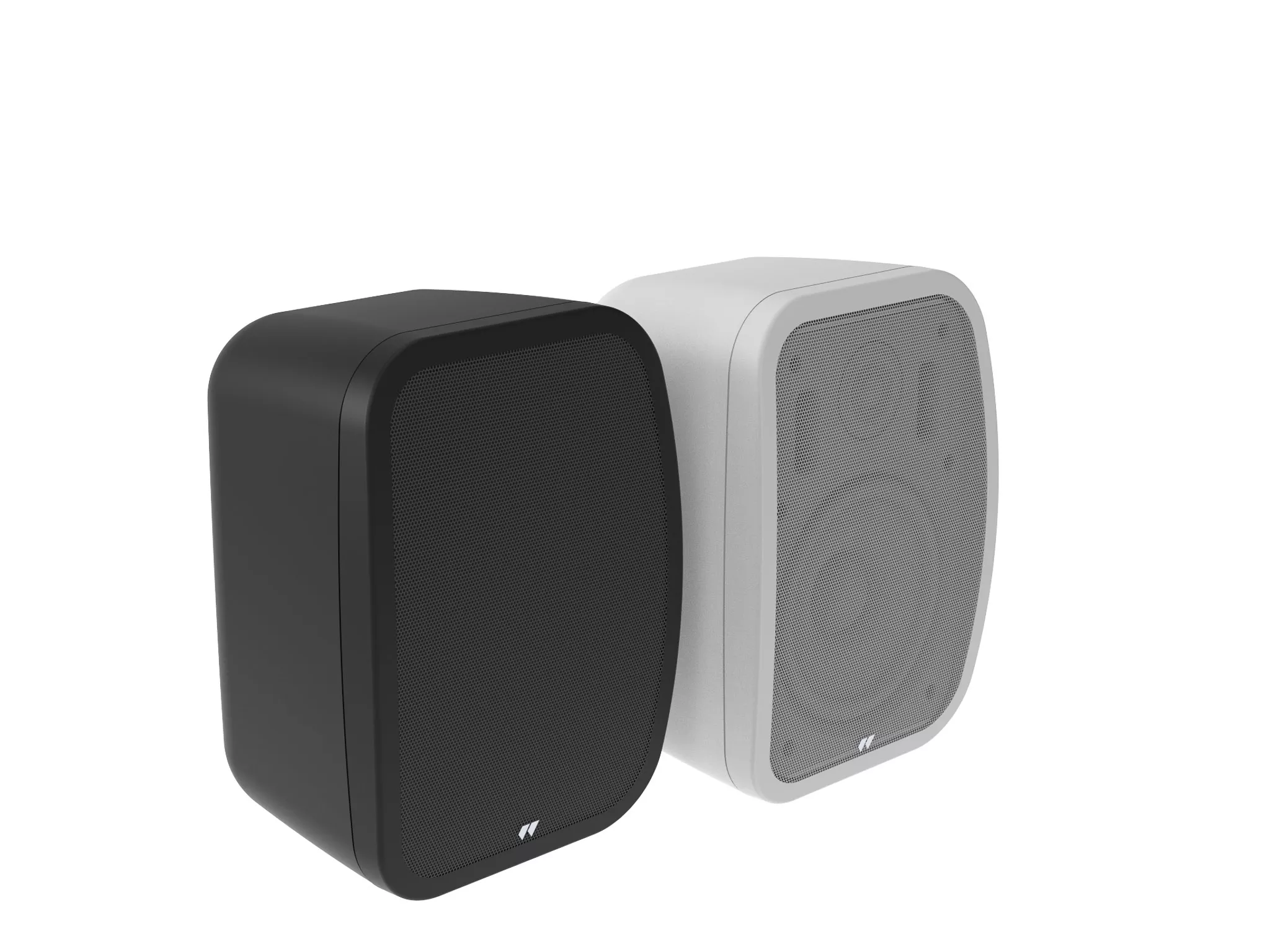

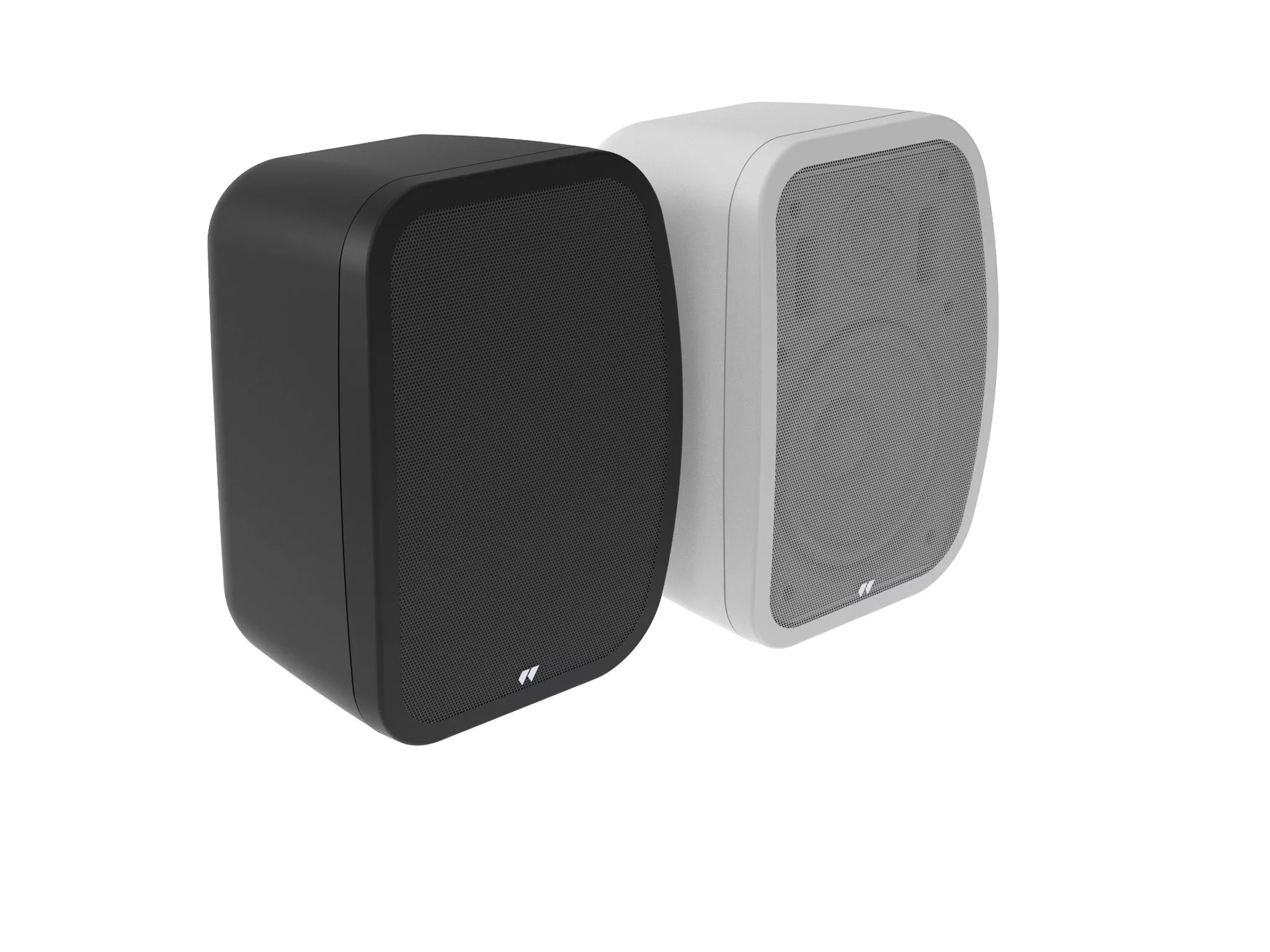

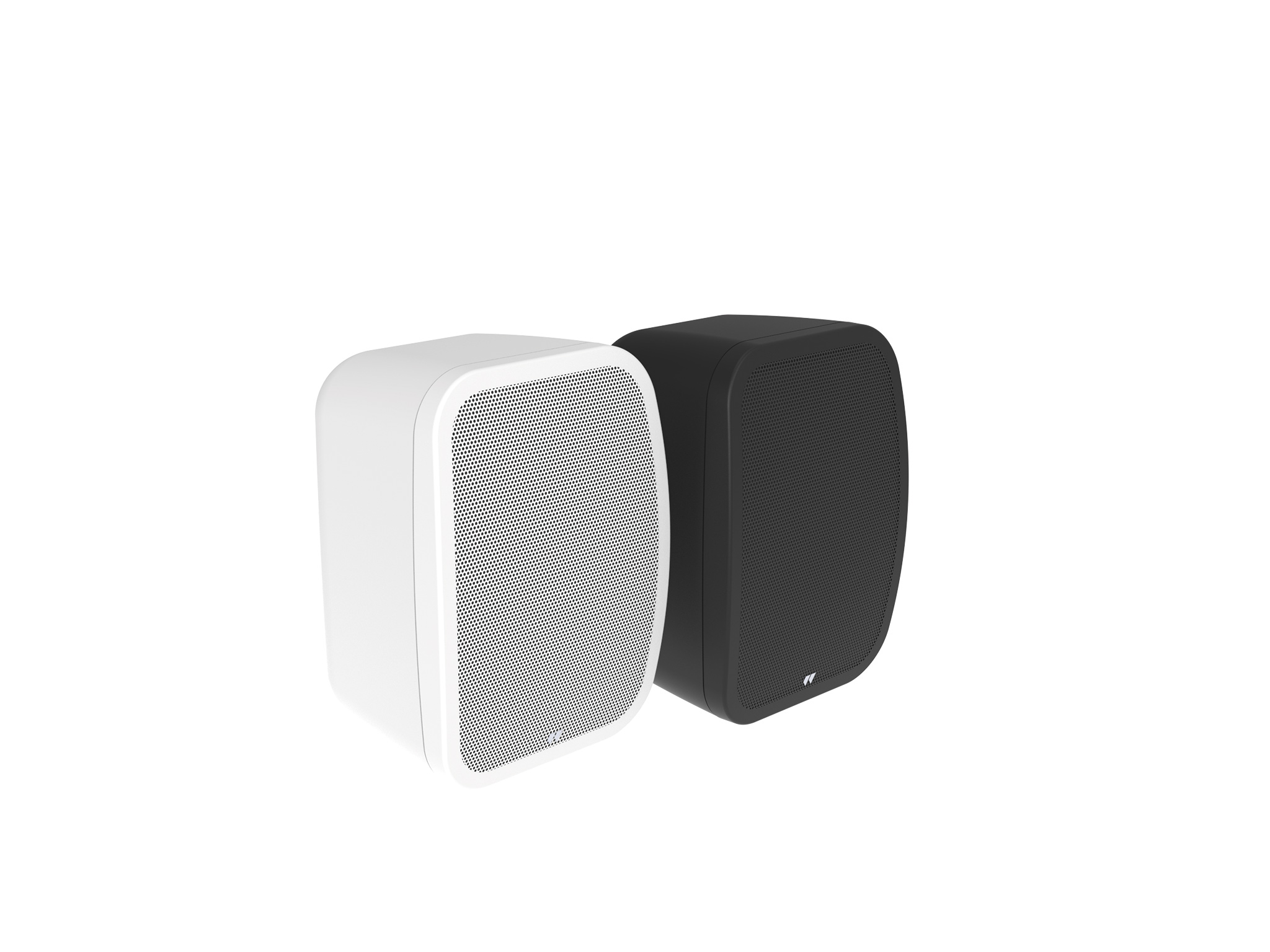

NEO 6A is an amplified loudspeaker made of ABS plastic and a white or black aluminum grille, composed of a 6.5'' speaker and a 1'' tweeter. The set consists of an active box that contains a 30 W 2-channel amplifier that powers the same box that houses it and the passive box of the system.
NEO 6A is also very simple and quick to install, thanks to the new support designed exclusively for this model, which also allows a quick orientation of the loudspeaker in both axes.
Sold in pairs (active + passive loudspeaker).
Main information
- Passive loudspeaker powered from active loudspeaker.
- Wall brackets included.
- IP 54 range.
- Black and white colour.
Product main measures (m)
0.18 x
0.20 x
0.29
| Type | 2 vías. Activa + pasiva/ 2 ways. Active + passive |
| Power | 2 x 30 W RMS |
| LF Transducer | 6.5" Woofer |
| HF Transducer | 1" Tweeter |
| Input Sensitivity | 1V / 2.21 dBu |
| Sensitivity (1W @ 1m) | 92 dB |
| SPL Max | 107 dB |
| Coverage Angle (H x V) | 120º x 90º |
| Frequency Range | 80 Hz - 20 KHz |
| Connections | Audio In: 2 x RCA, 1 x Minijack 3.5 mm, Amp Out: Euroblock 2 pin, Passive: 2 x Binding post |
| Controls | Power switch, Volume, Tone control (high, low), Voltage selector |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP 54 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.18 | 0.20 | 0.29 | 5.10 |
| Box | 0.25 | 0.42 | 0.37 | 8.50 |
| Master Carton | 0.44 | 0.50 | 0.39 | 18.00 |
