Installation Loudspeakers
NEO 6 MAX
#50EBS146
Passive loudspeaker 80 W @ 8 Ohm, 80/40/20/10 W @ L100V. 6.5' Woofer + 1' Tweeter. Sold in pairs.

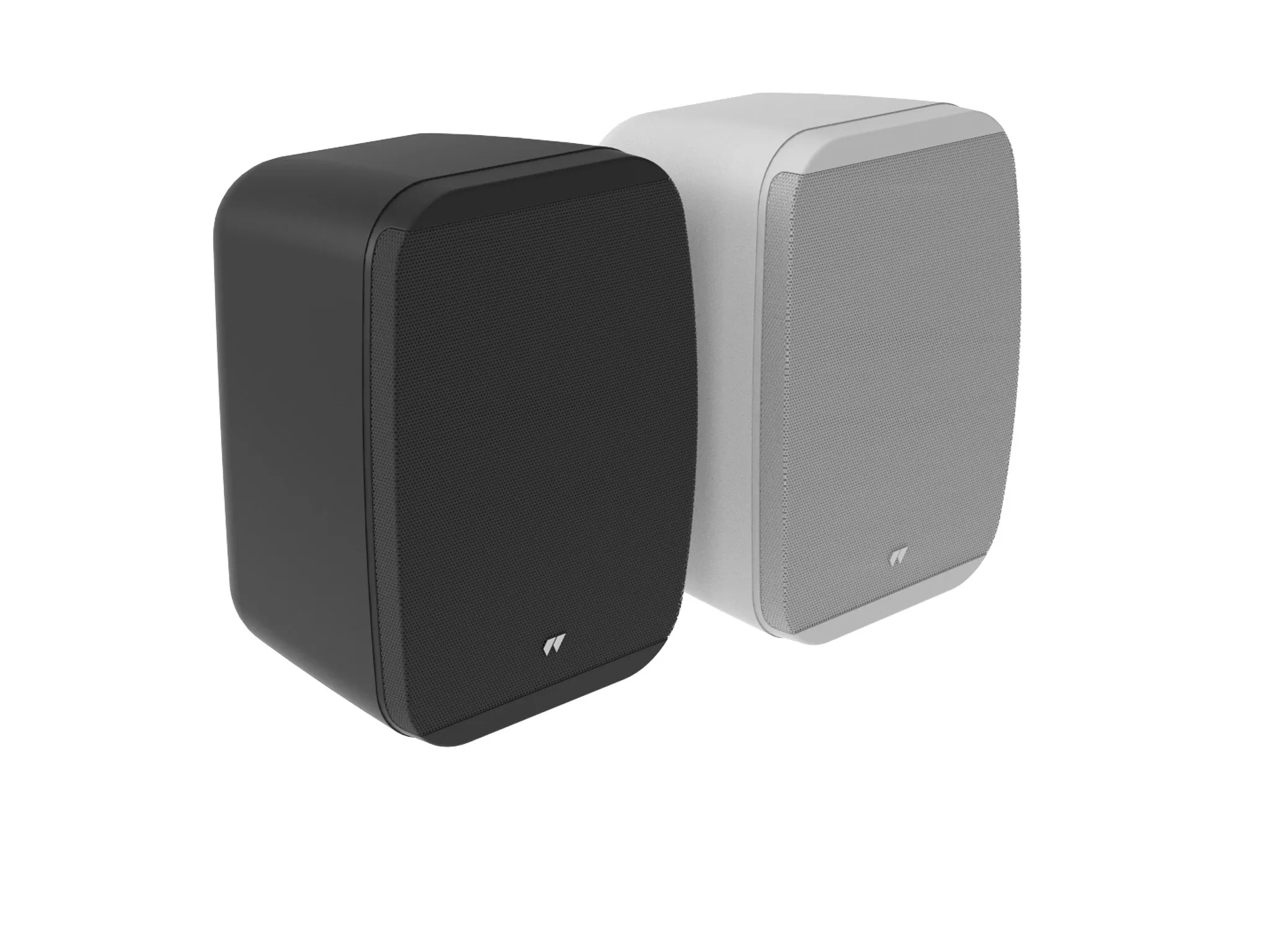

NEO 6 MAX is 2-way loudspeaker made of ABS plastic and aluminum grille. It consists of a 6.5” woofer and a 1” tweeter.
It stands out especially for the possibility of use both in 70/100 V installations and in low impedance installations.
NEO 6 MAX offer up to 80W power output (low impedance and 100V)

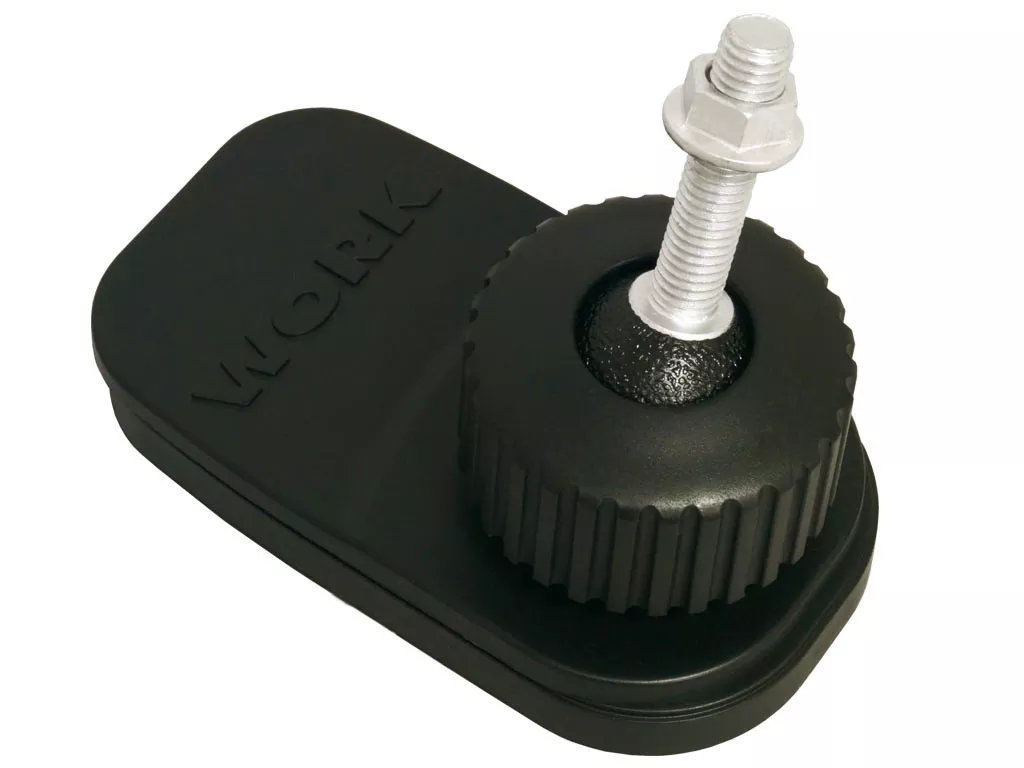

NEO 6 MAX is also very simple and quick to install, thanks to the new support designed exclusively for this model, which also allows a quick orientation of the box in both axes.
Sold in pairs (two passive loudspeaker).
Main information
- 80 W @ 8 Ohm, 80/40/20/10 W @ L100V.
- Wall brackets included.
- Price per couple.
- Black colour.
| Type | 2 vías. Pasivo/ 2 ways. Passive |
| Low Impedance Power | 80 W @ 8 Ohm |
| L100V Power | 80/40/20/10W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 6.5" Woofer |
| HF Transducer | 1" Tweeter |
| Sensitivity (1W @ 1m) | 89 dB |
| SPL Max | 109 dB |
| Coverage Angle (H x V) | 120º x 90º |
| Frequency Range | 80 Hz - 20 KHz |
| Connections | Euroblock |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Colour | Black (RAL 9004) |
| IP Protection | IP54 |
