Mixers
MMX 60
#52MMX060
Analog audio mixer. 6 mic/line st. Phantom. Talkover function. 1 HU 19''.

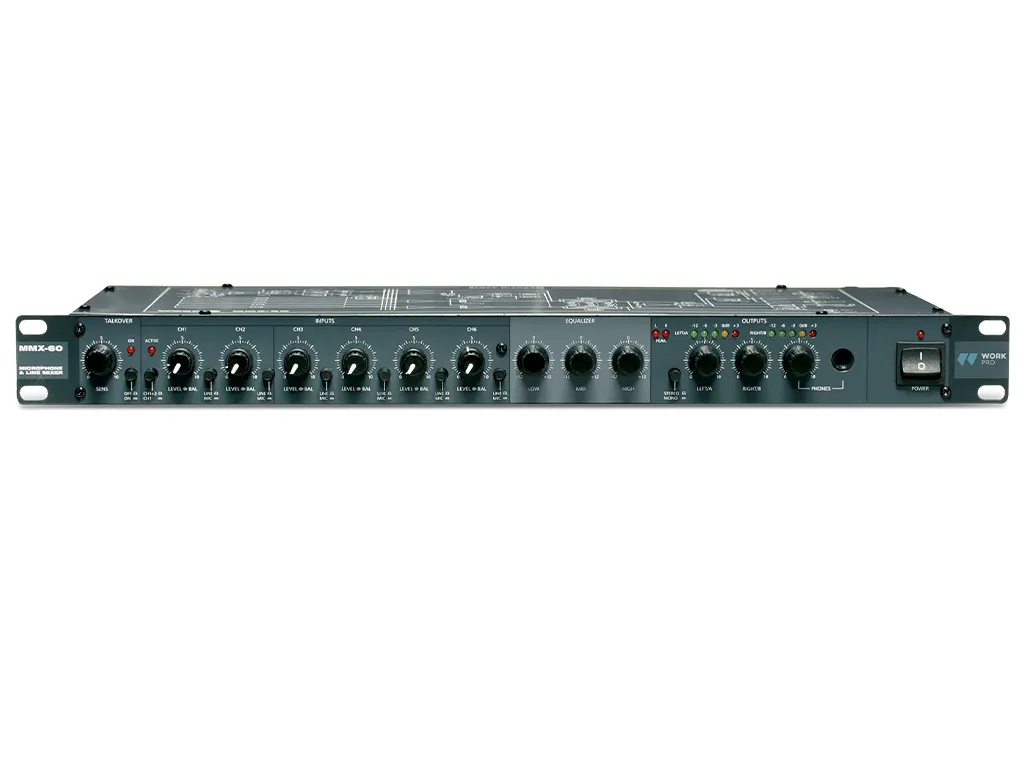

MMX 60 is a mixer that incorporates 6 Mic (mono)/Line (stereo) channels (XLR3/RCA) with +12V phantom power and balanced outputs with XLR3 connectors and unbalanced with RCA connectors. It is built in a metal casing with 1 19" rack unit. It has a 3-band equalizer on its Master stereo output. The first channel incorporates a sensitivity adjustment potentiometer to establish the Talkover level.
Main information
- 1 HU 19 in Rack.
- Talkover channel 1 with sensitivity adjust.
- Phantom power.
Product main measures (m)
0.21 x
0.48 x
0.05
| Input Channels | 6 Mic / Línea (estéreo)/ 6 Mic/Line Stereo |
| Output | 1 estéreo balanceada (XLR3), 1 estéreo desbalanceada (RCA), 1 auriculares (Jack 1/4" TRS)/ 1 balanced stereo (XLR3), 1 unbalanced stereo (RCA), 1 headphone (1/4" TRS Jack) |
| Equalization | Bass: ±12 dB/50 Hz, Mid: ±12 dB/1 KHz, Treble: ±12 dB/10 KHz |
| Phantom Power | +12 V |
| Input Sensitivity | 100 mV |
| S/N ratio | 85 dB ponderación A/ 85 dB ponderation A |
| THD+N | < 0.1% |
| Impedance | Input: 10 KOhm, Output: 600 Ohm |
| Maximum output level | 1 V |
| Other functions | Talkover for channel 1 with sensitivity adjustment |
| Power supply | AC 230V 50/60 Hz |
| Dimensions | 483 x 47 x 208 mm |
| Weight | 3.1 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.21 | 0.48 | 0.05 | 3.10 |
| Box | 0.27 | 0.54 | 0.10 | 3.82 |
| Master Carton | 0.56 | 0.56 | 0.30 | 24.22 |
