MINO 6 E2
#50MIN033
#50MIN034
Passive loudspeaker. 300 W @ 8 Ohm. Woofer 6.5‘’ + Driver 1.3‘’.

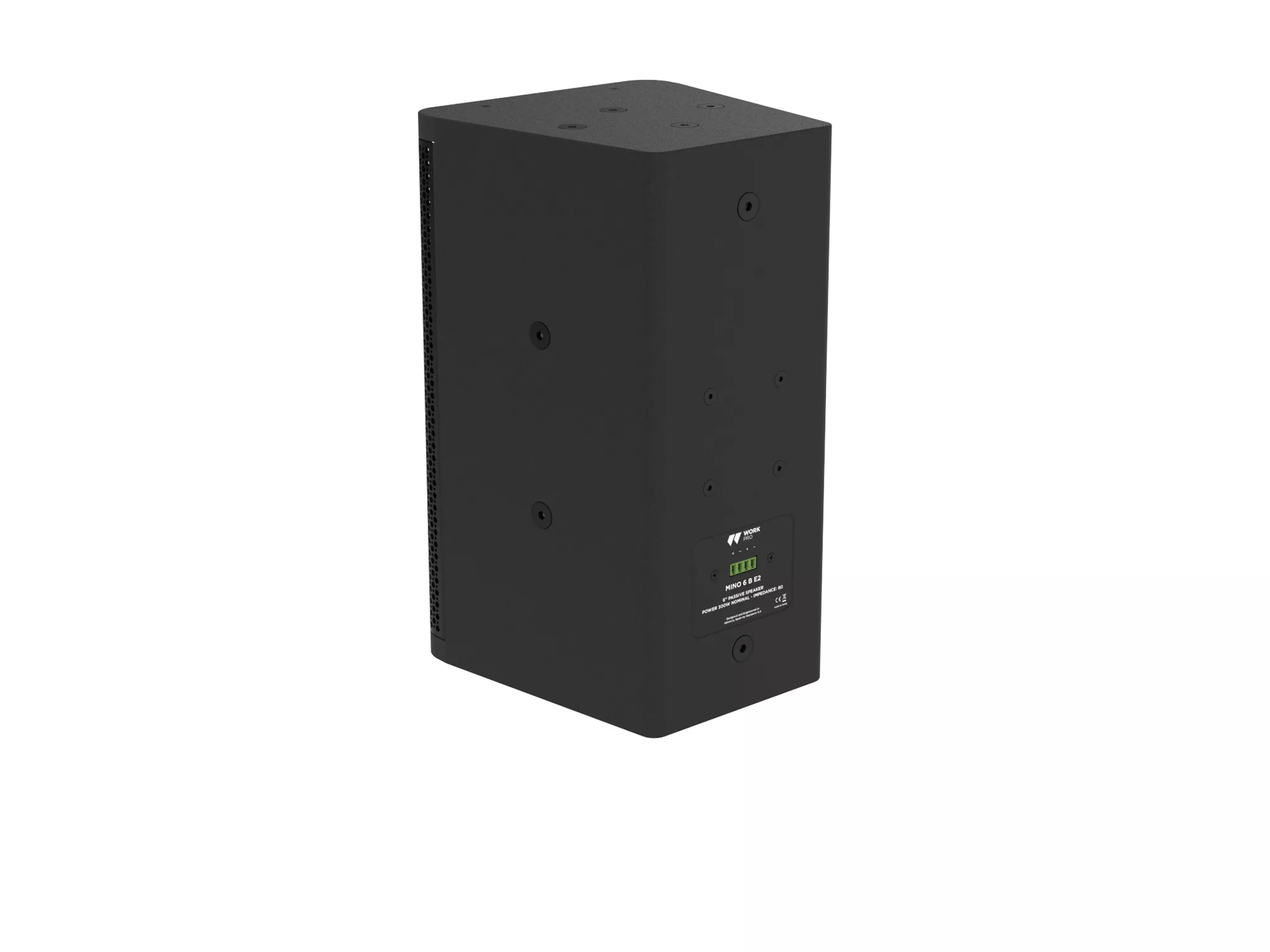

MINO 6 E2 is a two-way passive loudspeaker with 300 W power handling at 8 Ohm, made of high-density fiberboard. It consists of a 6.5‘ loudspeaker and a 1.3’ compression driver and is equipped with terminal connections. This model is perfectly suited for the musical ambience of a multitude of spaces. The MINO E2 loudspeakers substantially improve the sound quality and have been specifically designed for installation and, as part of the refurbishment, the enclosures have been improved with multiple mounting points. In addition, the two available colours (black and white) make it easy to integrate the loudspeakers into any installation, whether it is a commercial space, a corporate environment or a leisure space.
Main information
- Passive loudspeaker. 300W power handling.
- High density fiberboard.

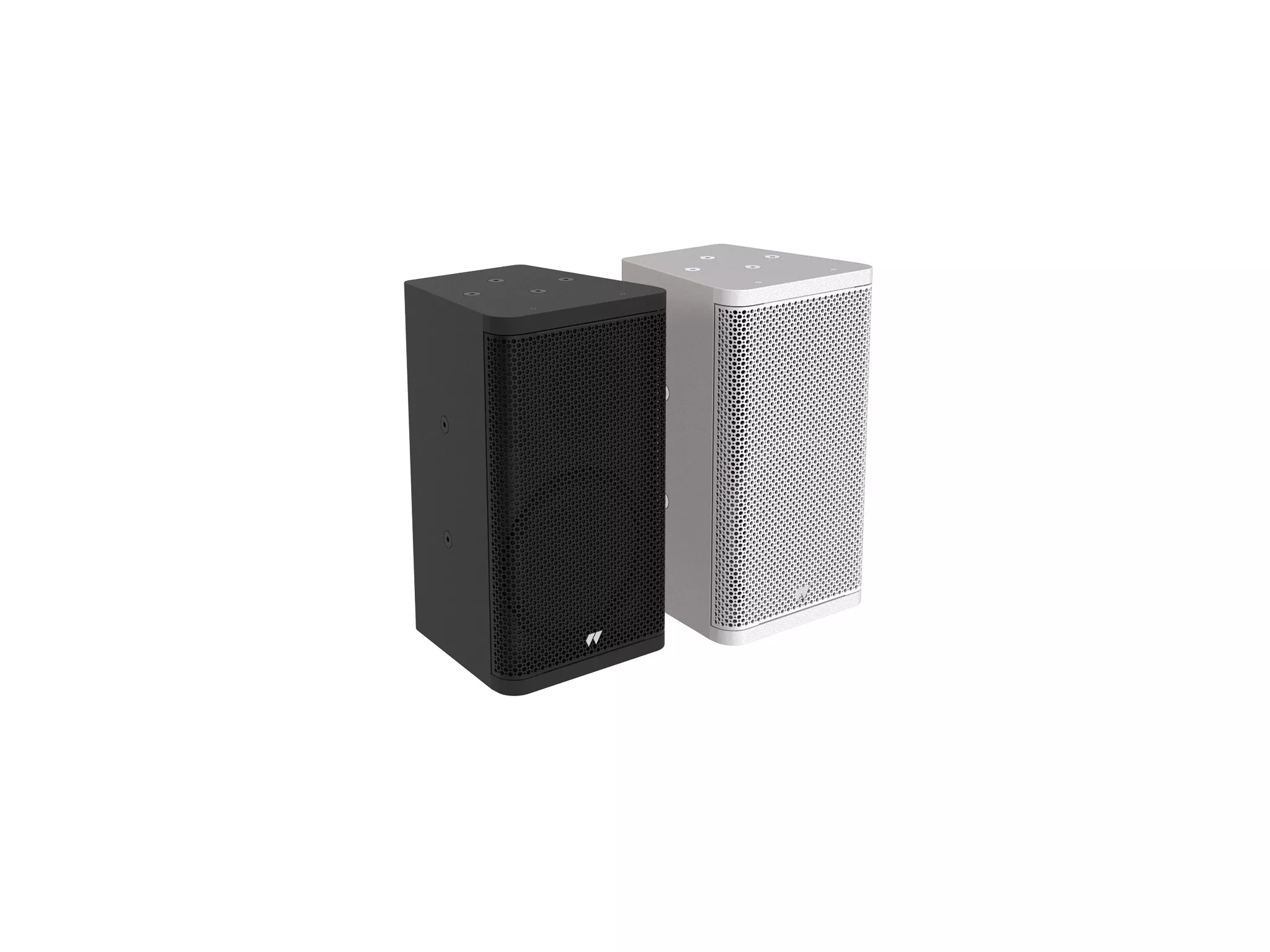

- Available in black and white.
| Type | 2-Way Passive Speaker |
| Power | 150 W RMS / 300 W Program |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 6,5" Woofer (1 3/8 " Voice Coil)/ 6.5" Woofer (1 3/8 " Voice Coil) |
| HF Transducer | 1,3" Compression Driver (1" Voice Coil)/ 1.3" Compression Driver (1" Voice Coil) |
| Sensitivity | 88 dB |
| Max SPL | 112 dB |
| Frequency Range | 75 Hz - 18 kHz |
| Coverage Angle (H x V) | 80º x 50º |

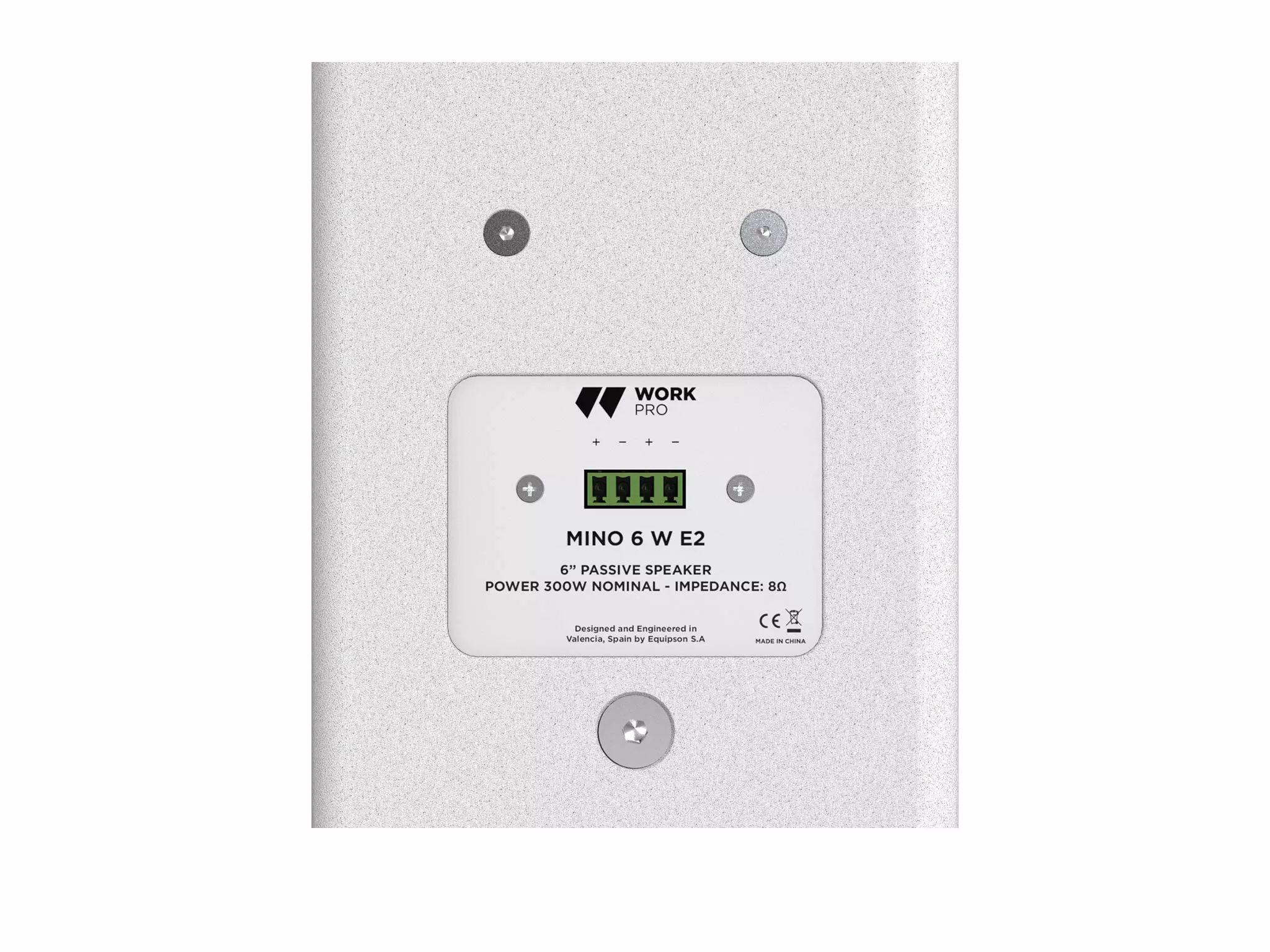

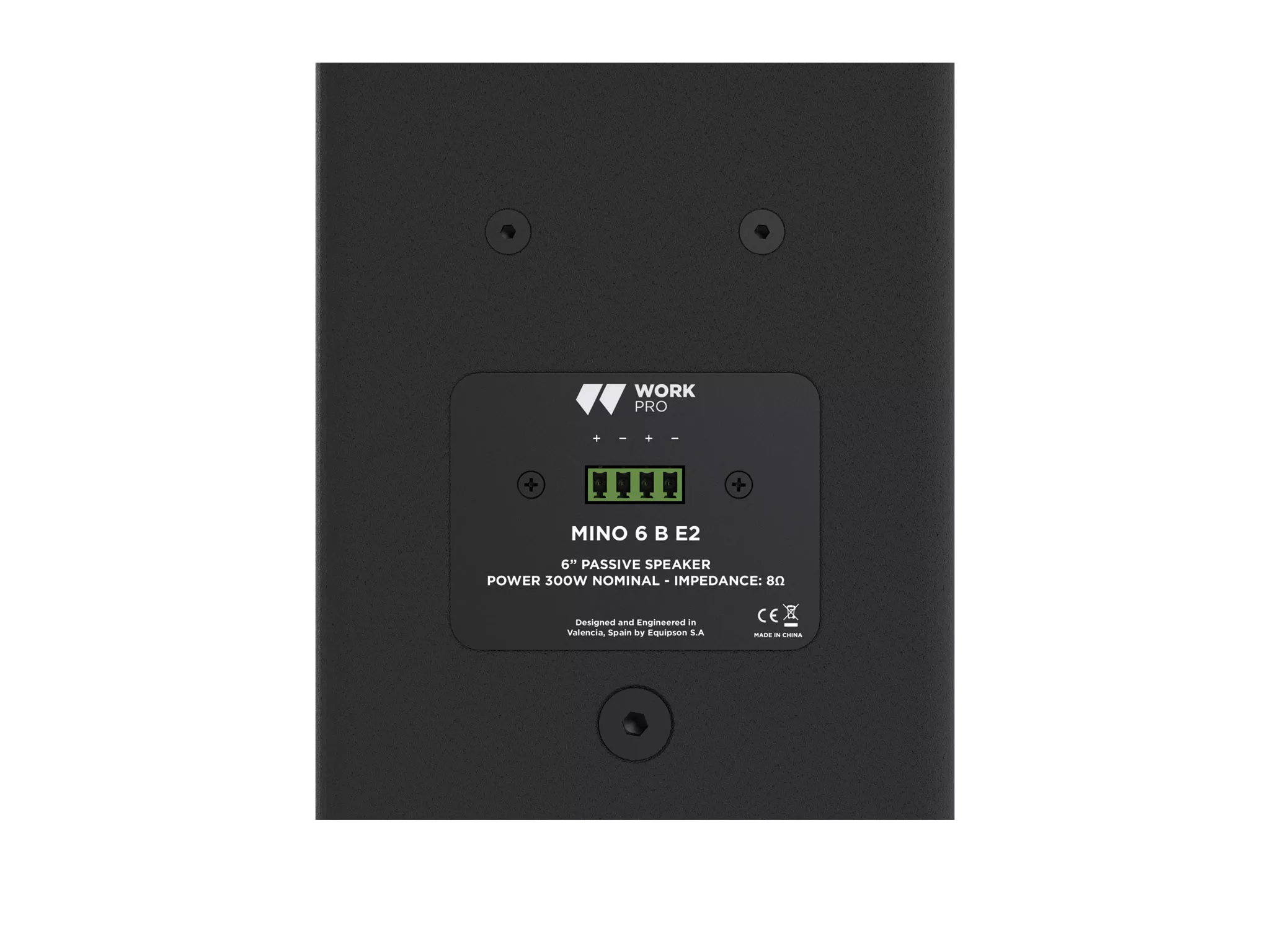

| Connectors | Euroblock (4 pin) |
| Enclosure material | High density fiberboard |

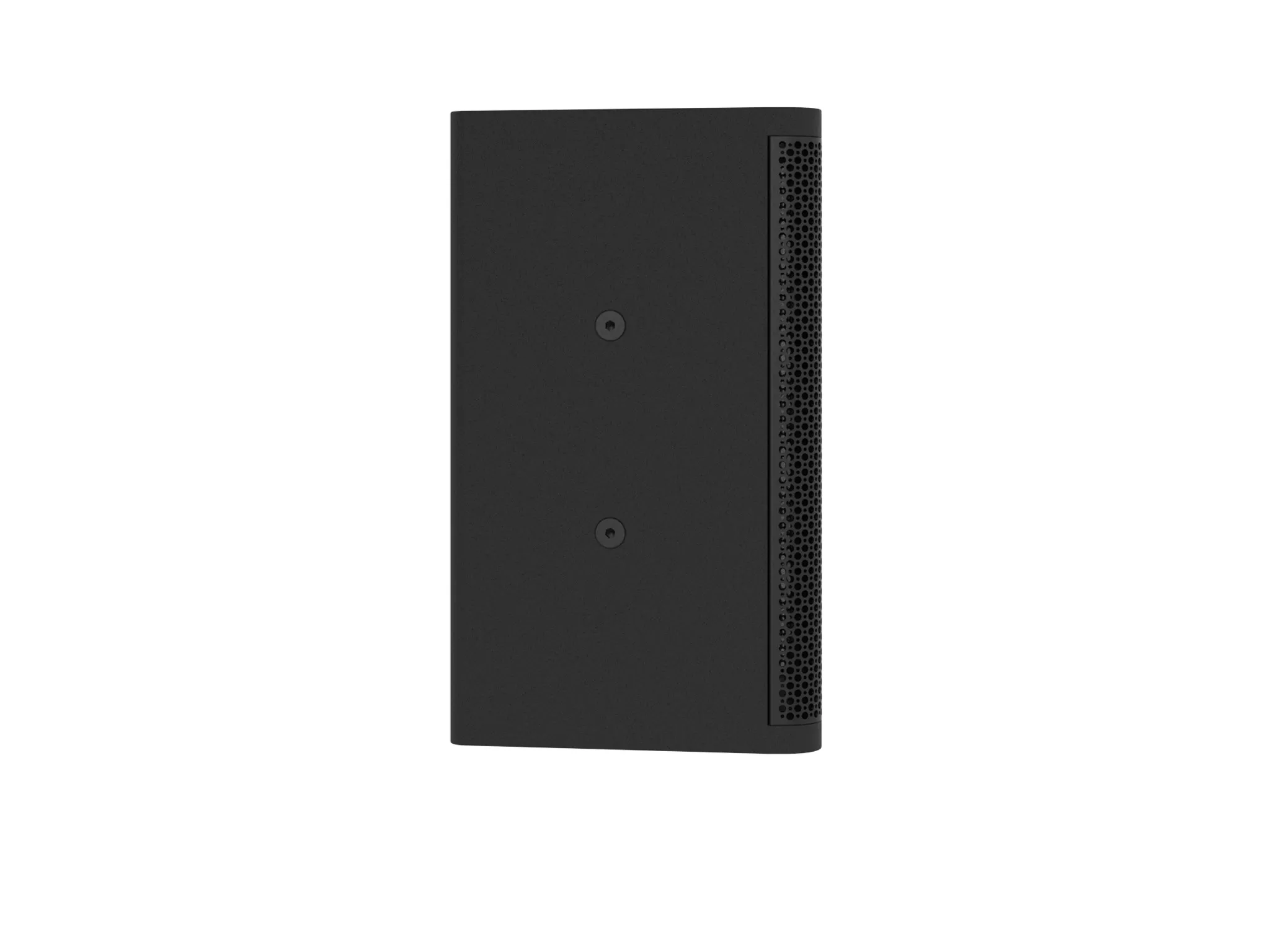

| Useful Metric Points | 14 x M8 |
| Available Colors | Black and White |
| Other Information | Rotatable Diffuser (2 Positions) |
