Loudspeakers
MINO 5CX E2
#50MIN031
#50MIN032
Passive loudspeaker. 200 W @ 8 Ohm. 5‘’ coaxial.

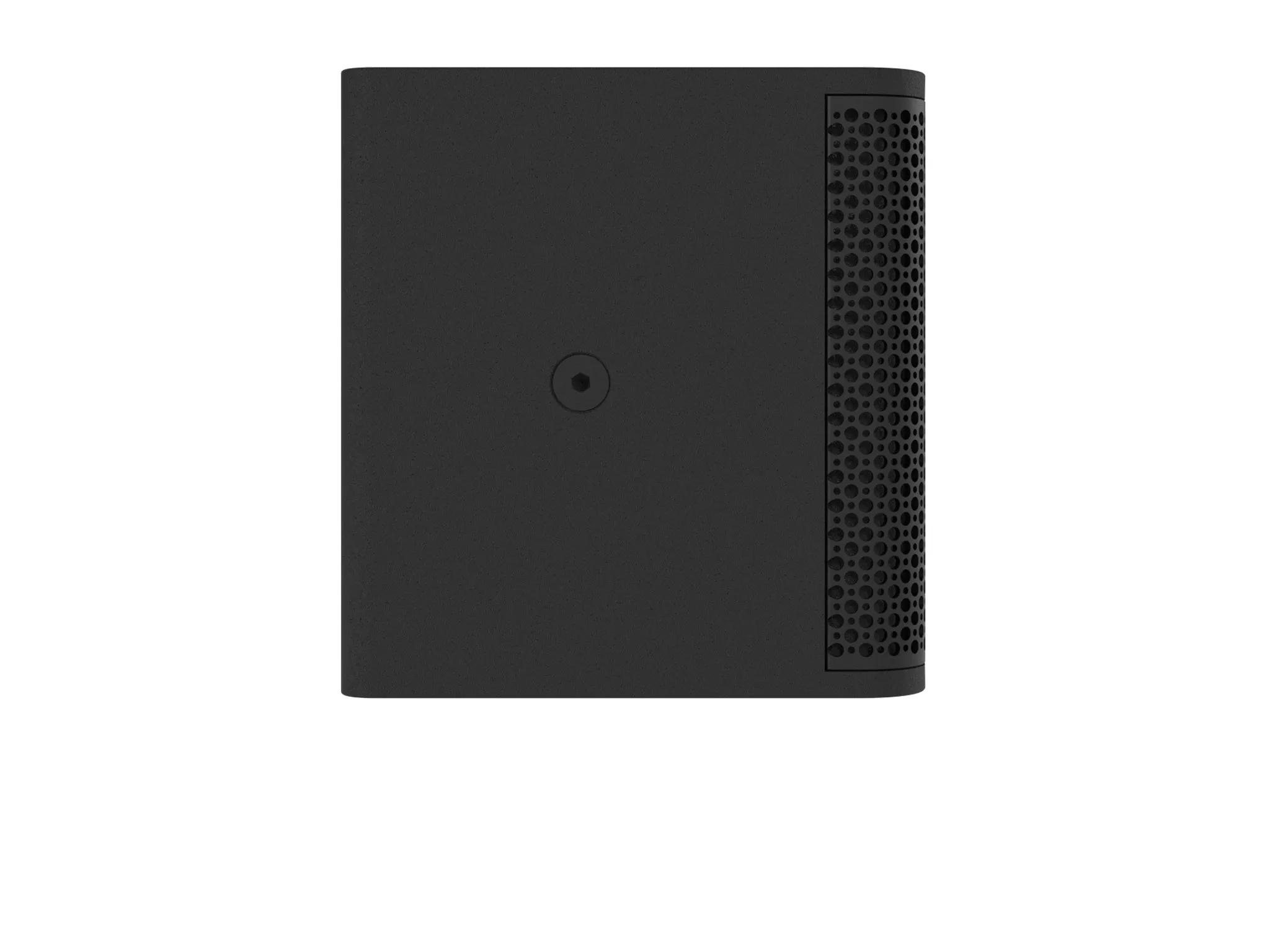

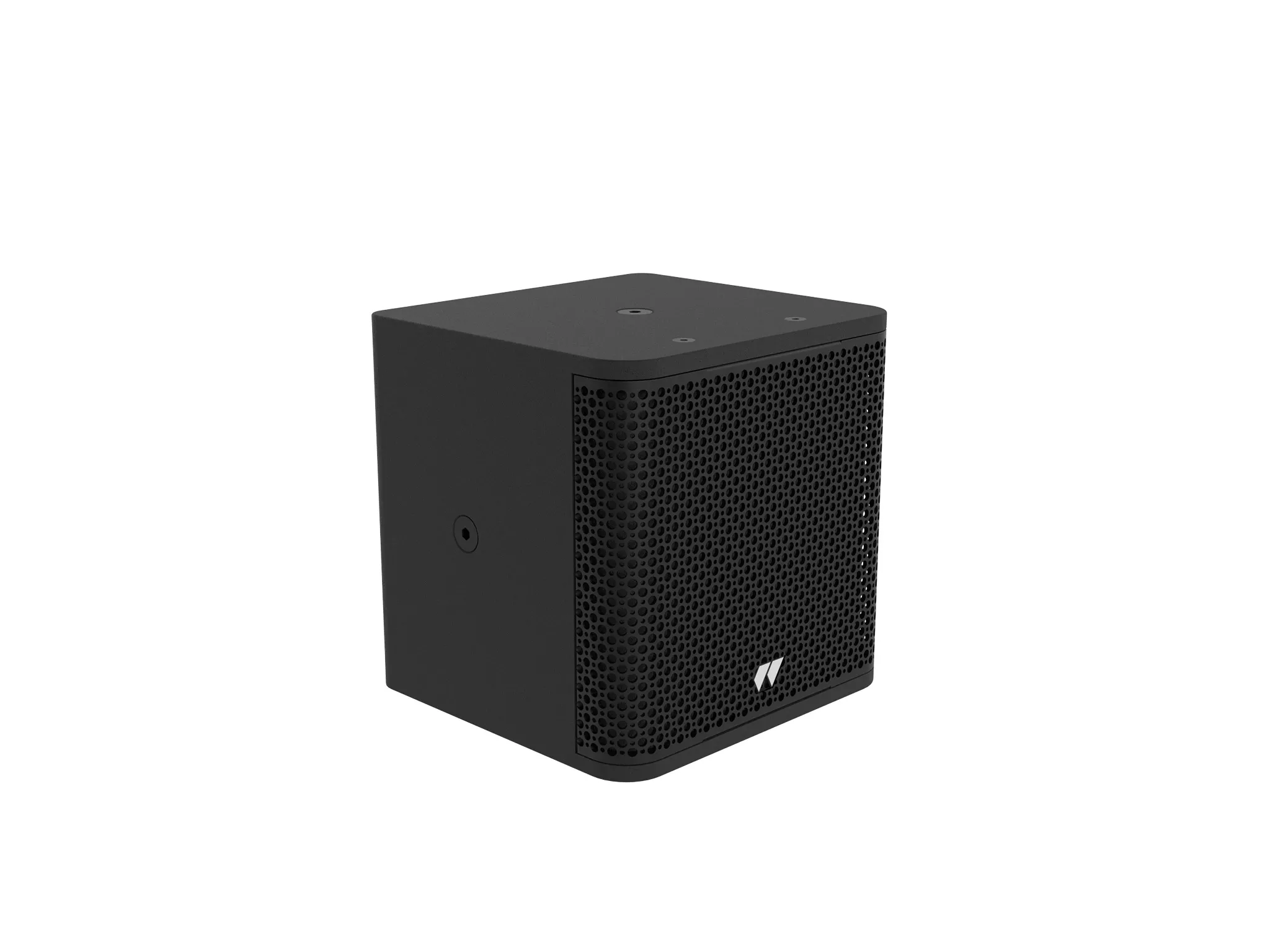

MINO 5 CX E2 is a passive coaxial loudspeaker with 200 W power handling and made of high density plywood. It consists of a 5" coaxial loudspeaker and has Euroblock and XLN4 connections. This model is perfectly suited for the musical ambience of a multitude of spaces. The MINO E2 speakers substantially improve the sound quality and have been specifically designed for installation and, as part of their refurbishment, the enclosures have been upgraded with multiple mounting points. In addition, the two available colours (black and white) make it easy to integrate the loudspeakers into any installation, whether it is a commercial space, a corporate environment or a leisure space.
Main information
- Passive loudspeaker. 200W power handling.
- High density poplar plywood

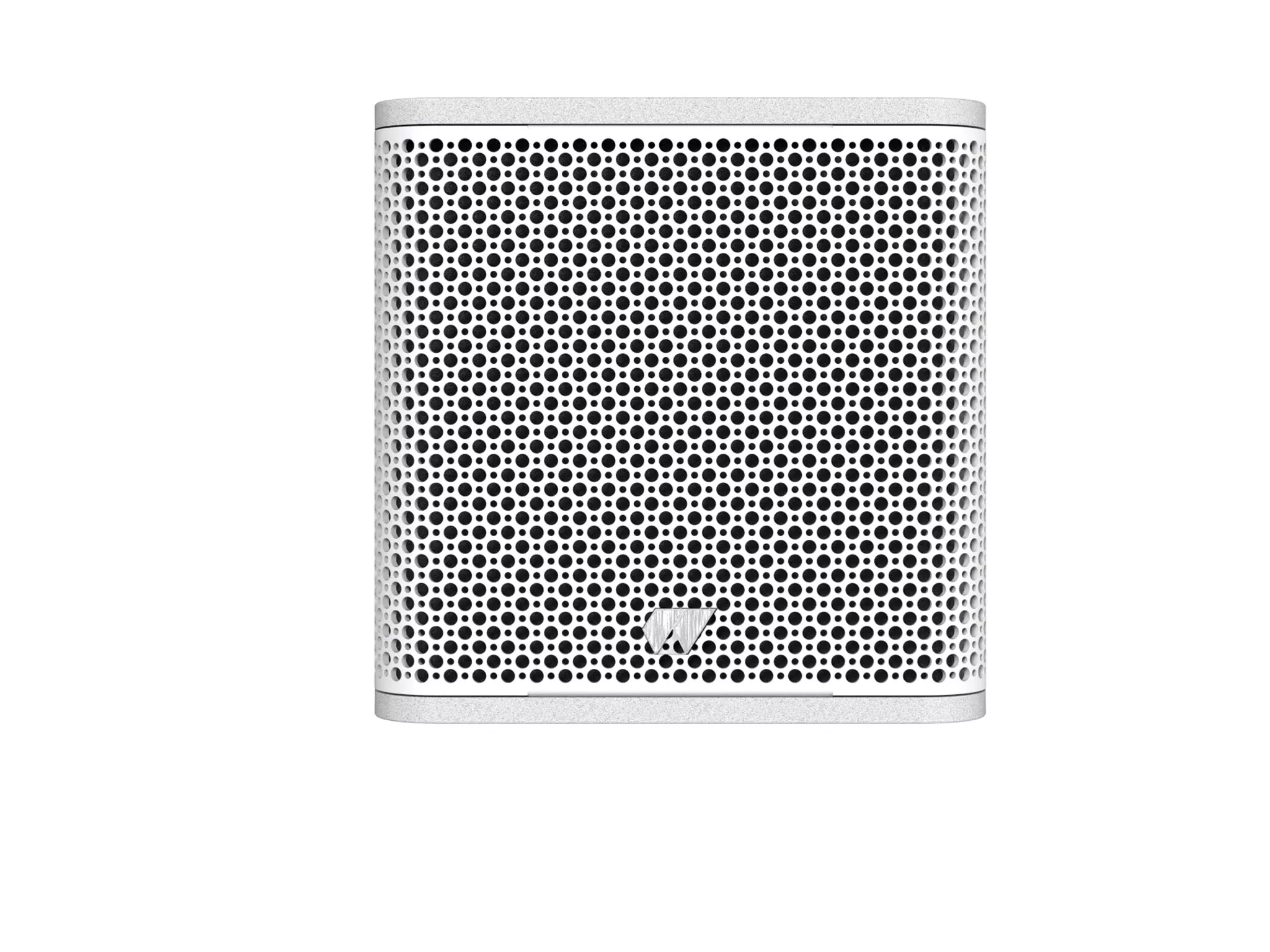

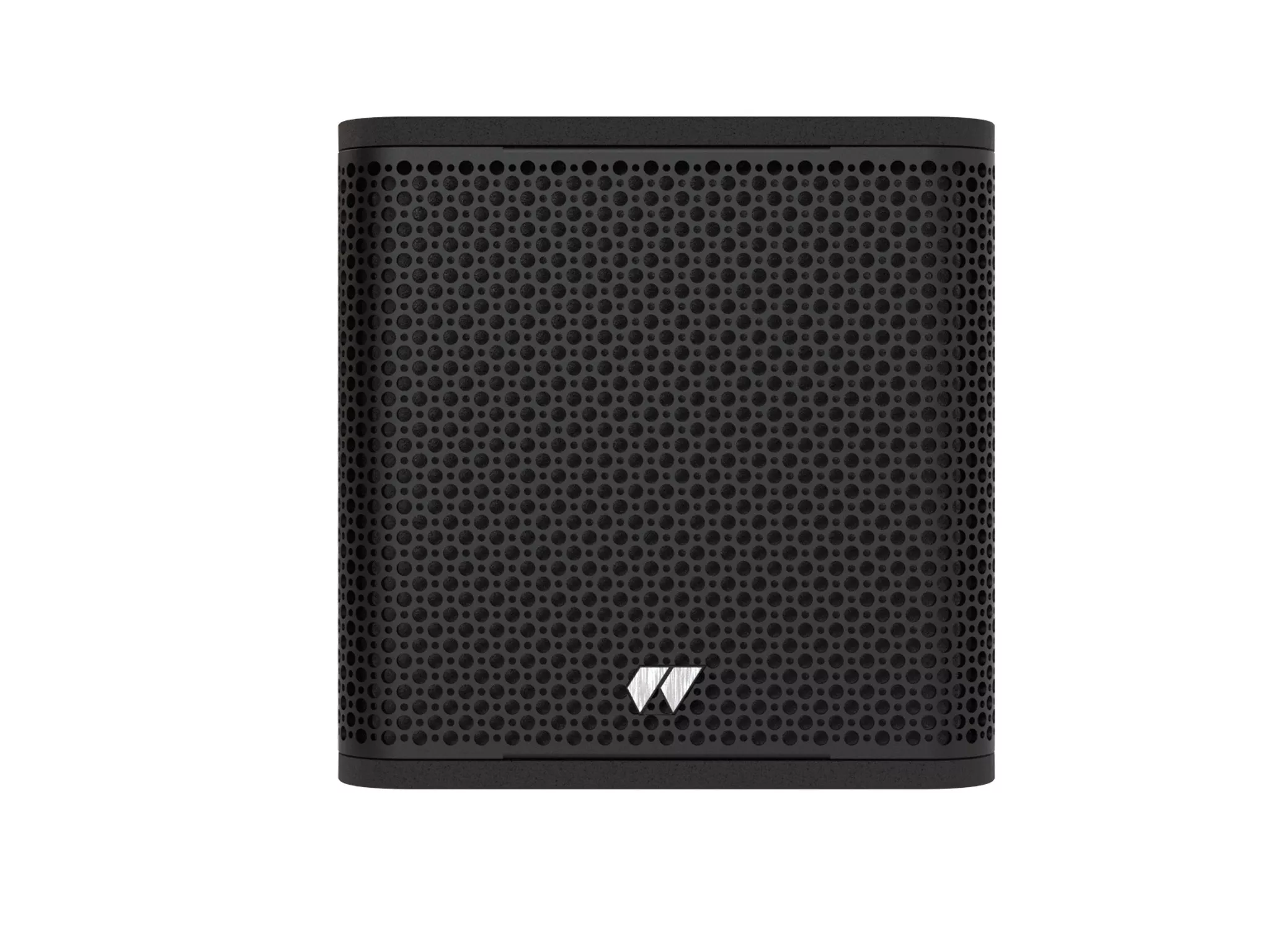

- Available in black and white.
| Type | Passive Coaxial Loudspeaker |
| Power | 100 W RMS / 200 W Program |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 5" Woofer (1,25" Voice Coil)/ 5" Woofer (1.25" Voice Coil) |
| HF Transducer | 0,94 " Tweeter (0,59" Voice Coil)/ 0.94 " Tweeter (0.59" Voice Coil) |
| Sensitivity | 85 dB |
| Max SPL | 108 dB |
| Frequency Range | 70 Hz - 20 kHz |
| Coverage Angle (H x V) | 110º x 110º |

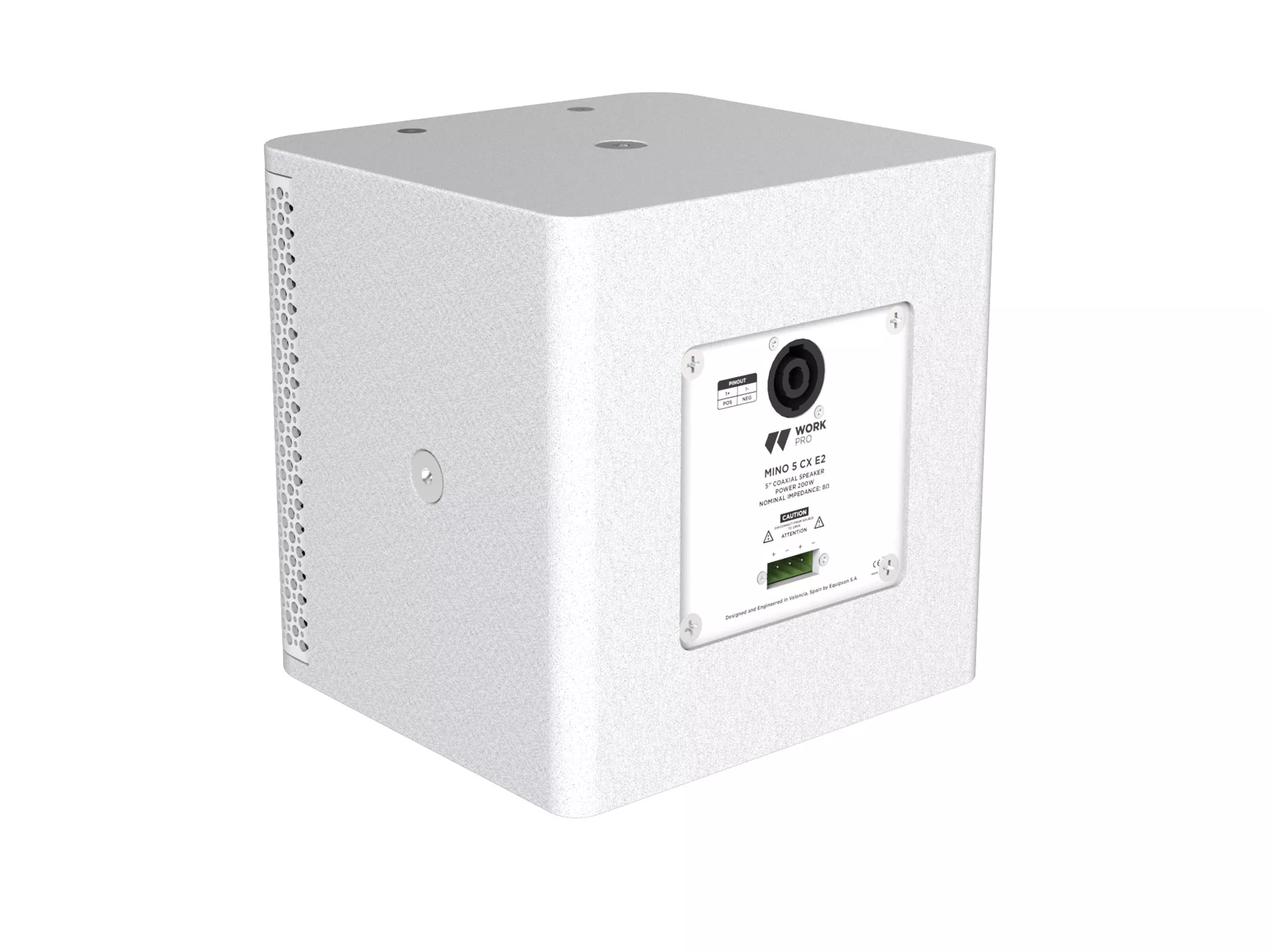

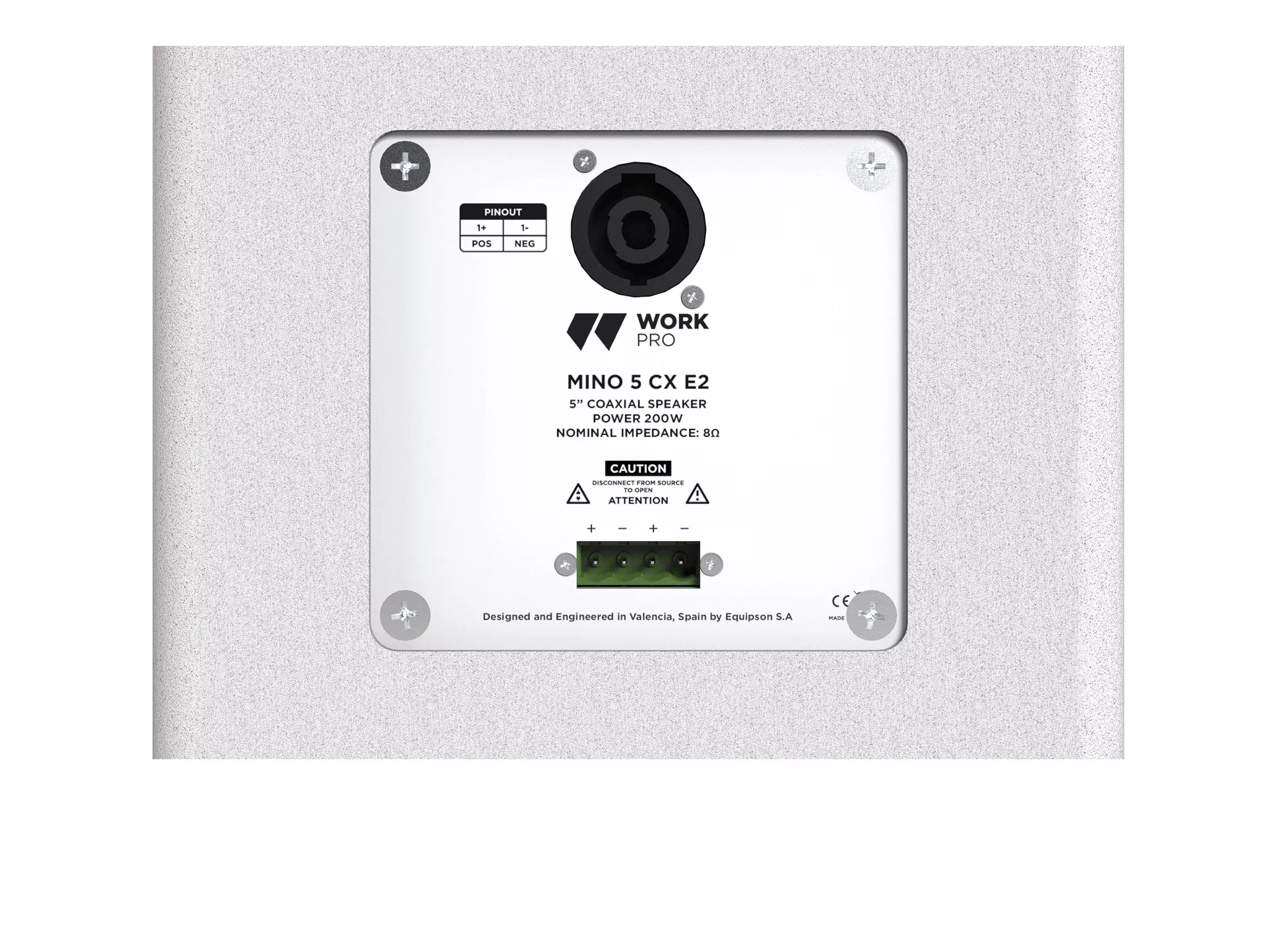

| Connectors | Euroblock (4 pin) / XLN4 |
| Enclosure material | High density plywood |
| Useful Metric Points | 4 x M8 |

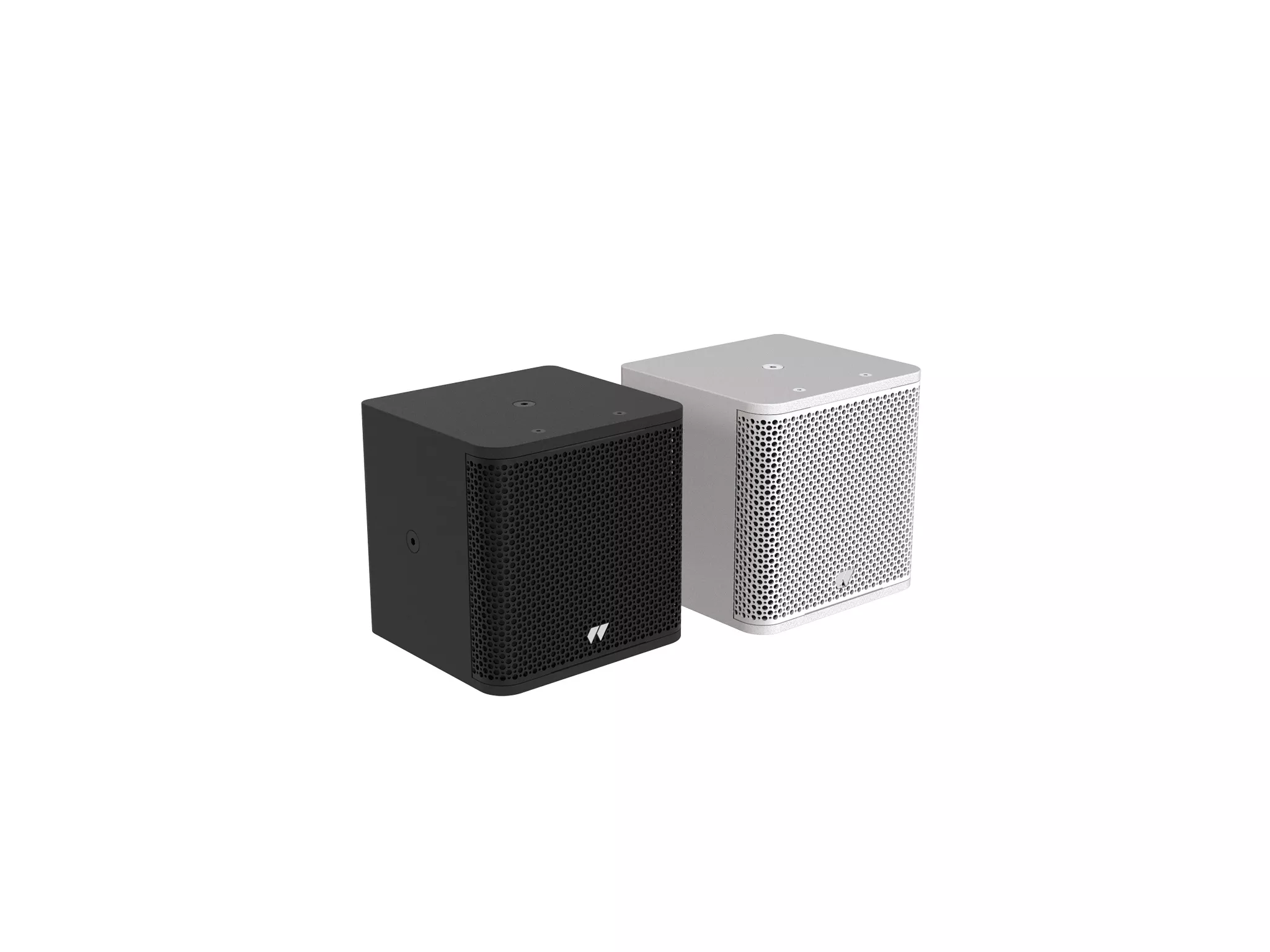

| Available Colors | Black and White |

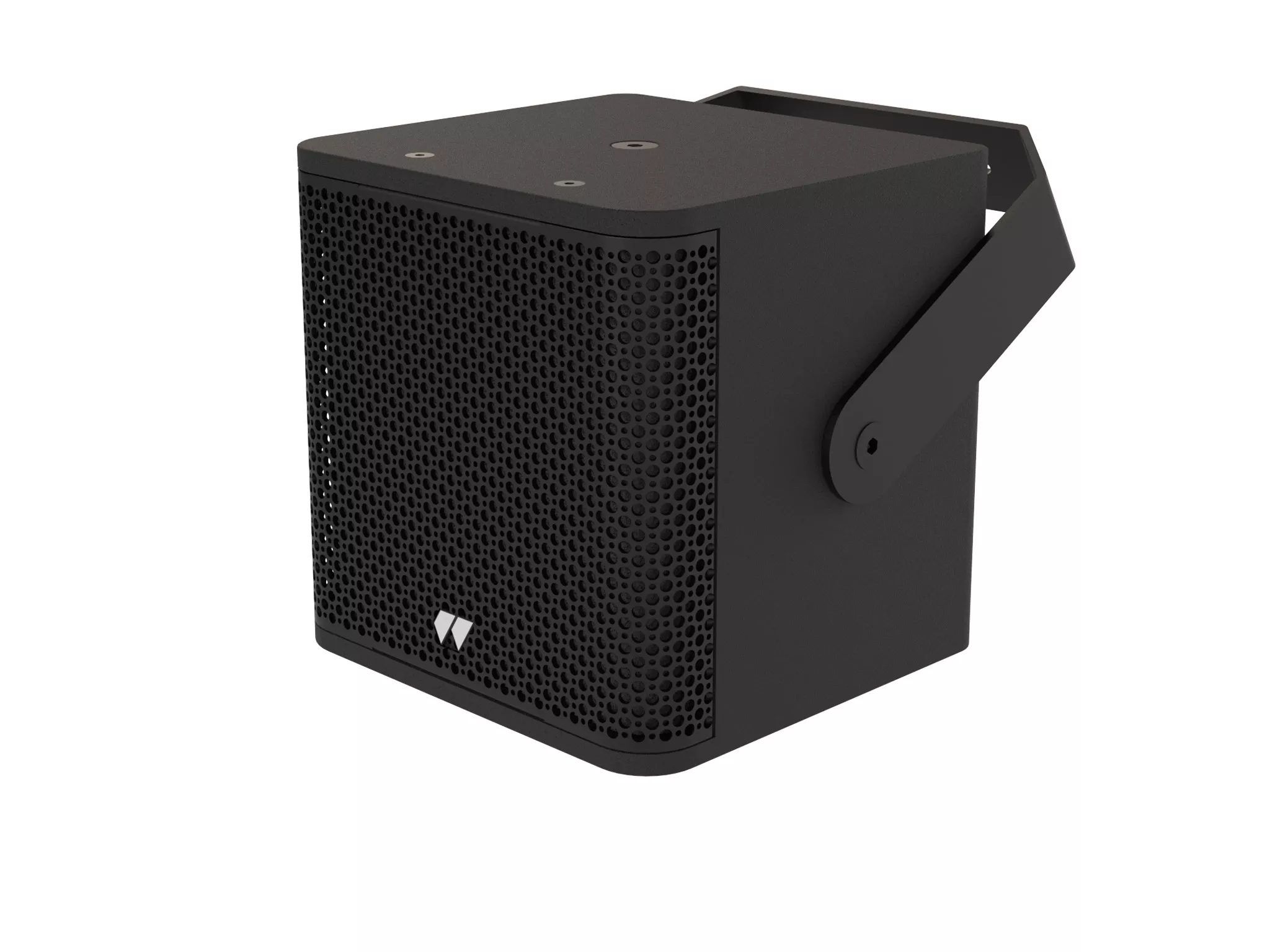

| Other Information | Two-position yoke mount |
