Loudspeakers
MINO 10 E2
#50MIN037
#50MIN038
Passive loudspeaker. 600 W @ 8 Ohm. Woofer 10‘’ + Driver 1.3‘’.

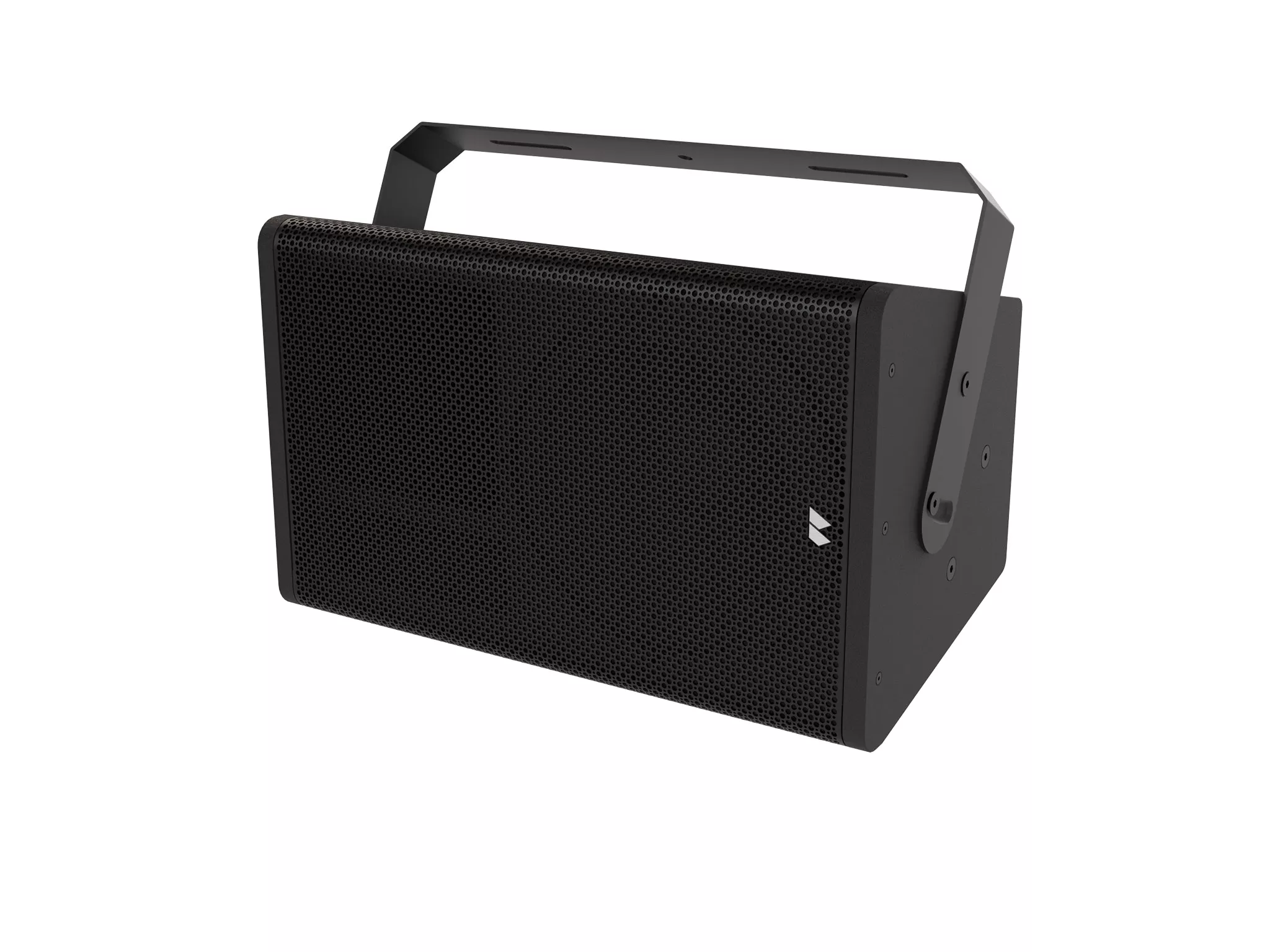

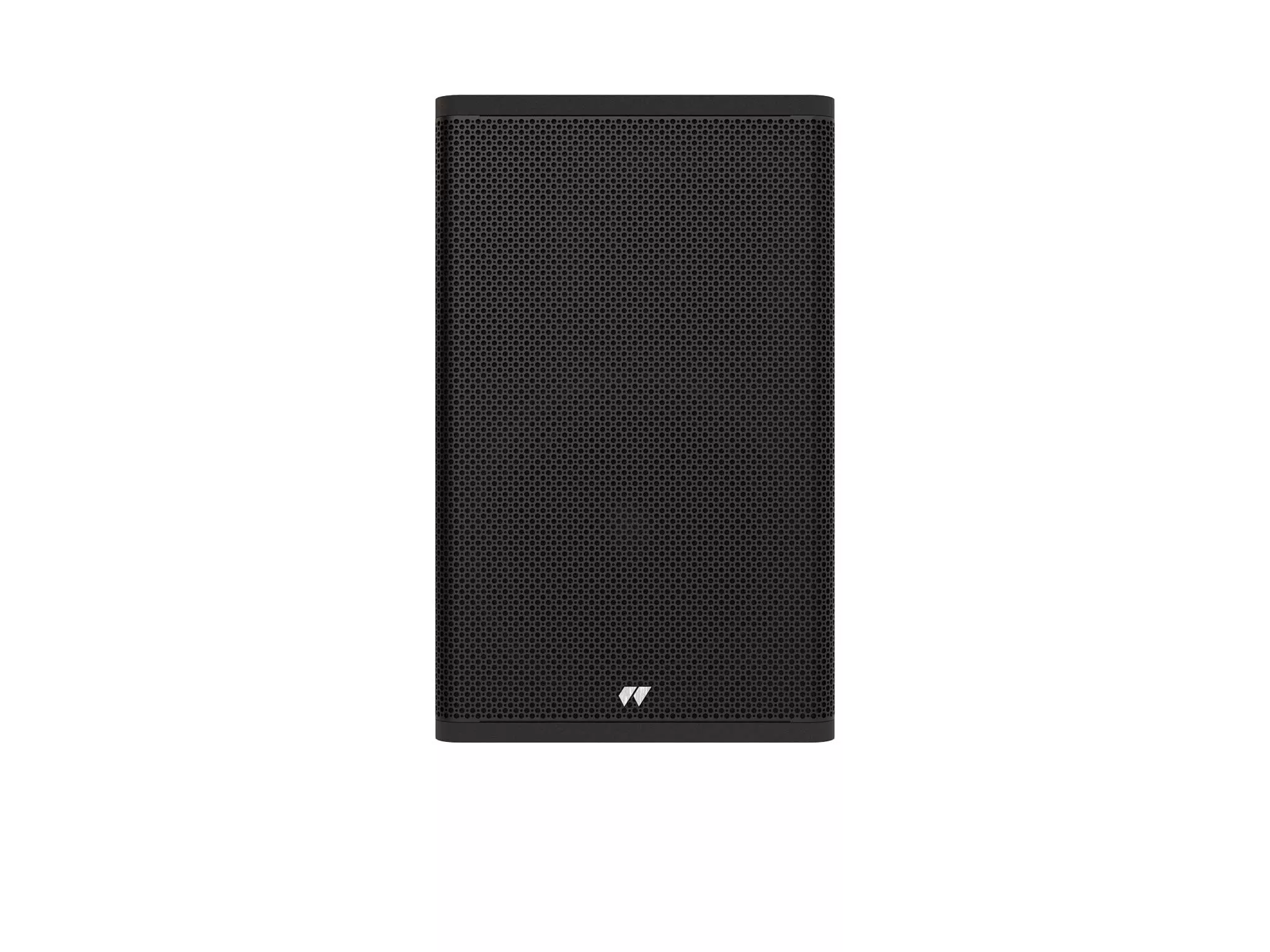

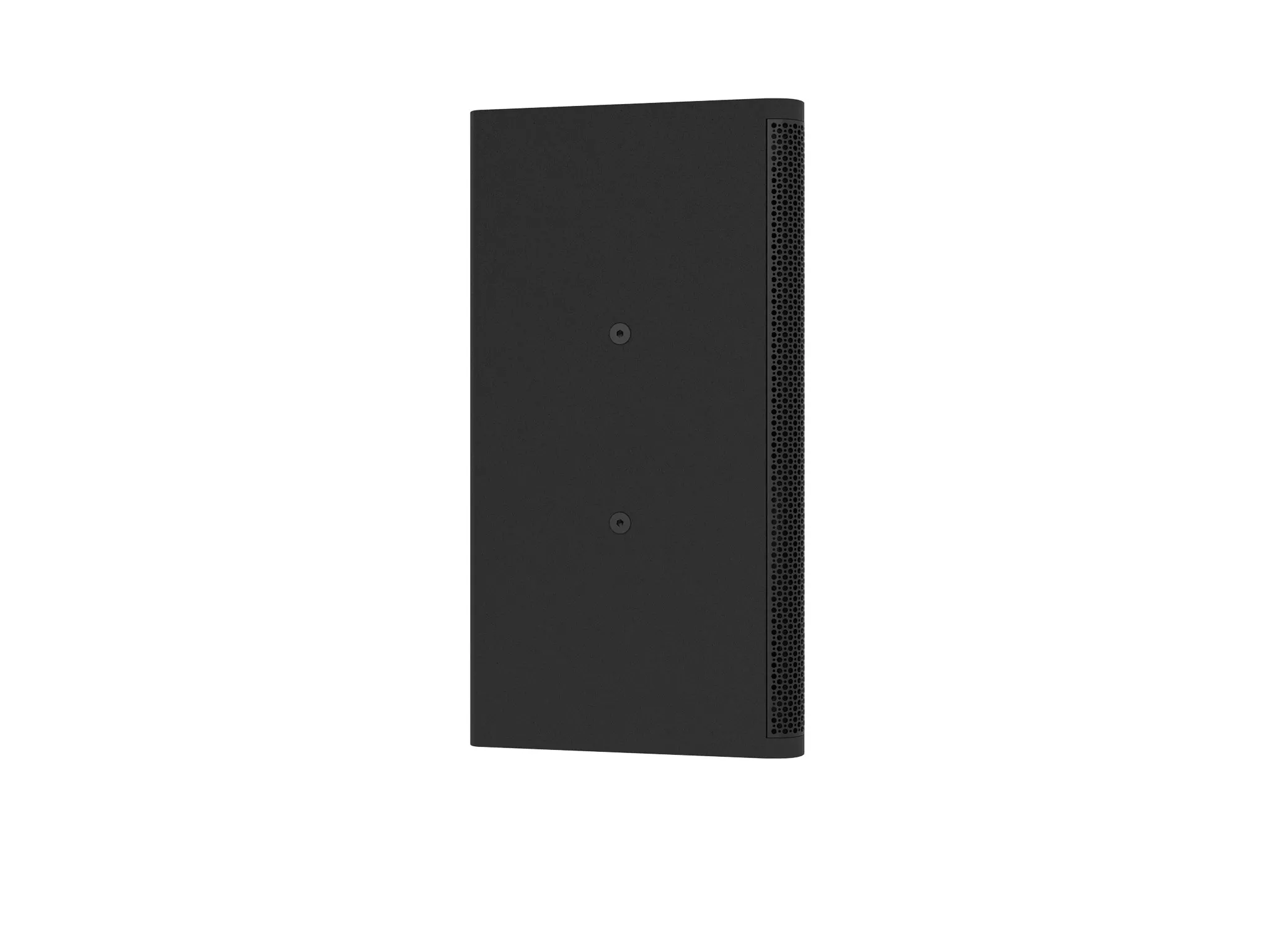

MINO 10 E2 is a two-way passive loudspeaker with 600 W power handling at 8 Ohm, made of high-density fiberboard. It consists of a 10" loudspeaker and a 1.3" compression driver and is equipped with terminal connections. This model is perfectly suited for the musical ambience of a multitude of spaces. The MINO E2 loudspeakers substantially improve the sound quality and have been specifically designed for installation and, as part of the refurbishment, the enclosures have been improved with multiple mounting points. In addition, the two available colours (black and white) make it easy to integrate the loudspeakers into any installation, whether it is a commercial space, a corporate environment or a leisure space.
Main information
- Passive loudspeaker. 600W power handling.
- High density fiberboard.

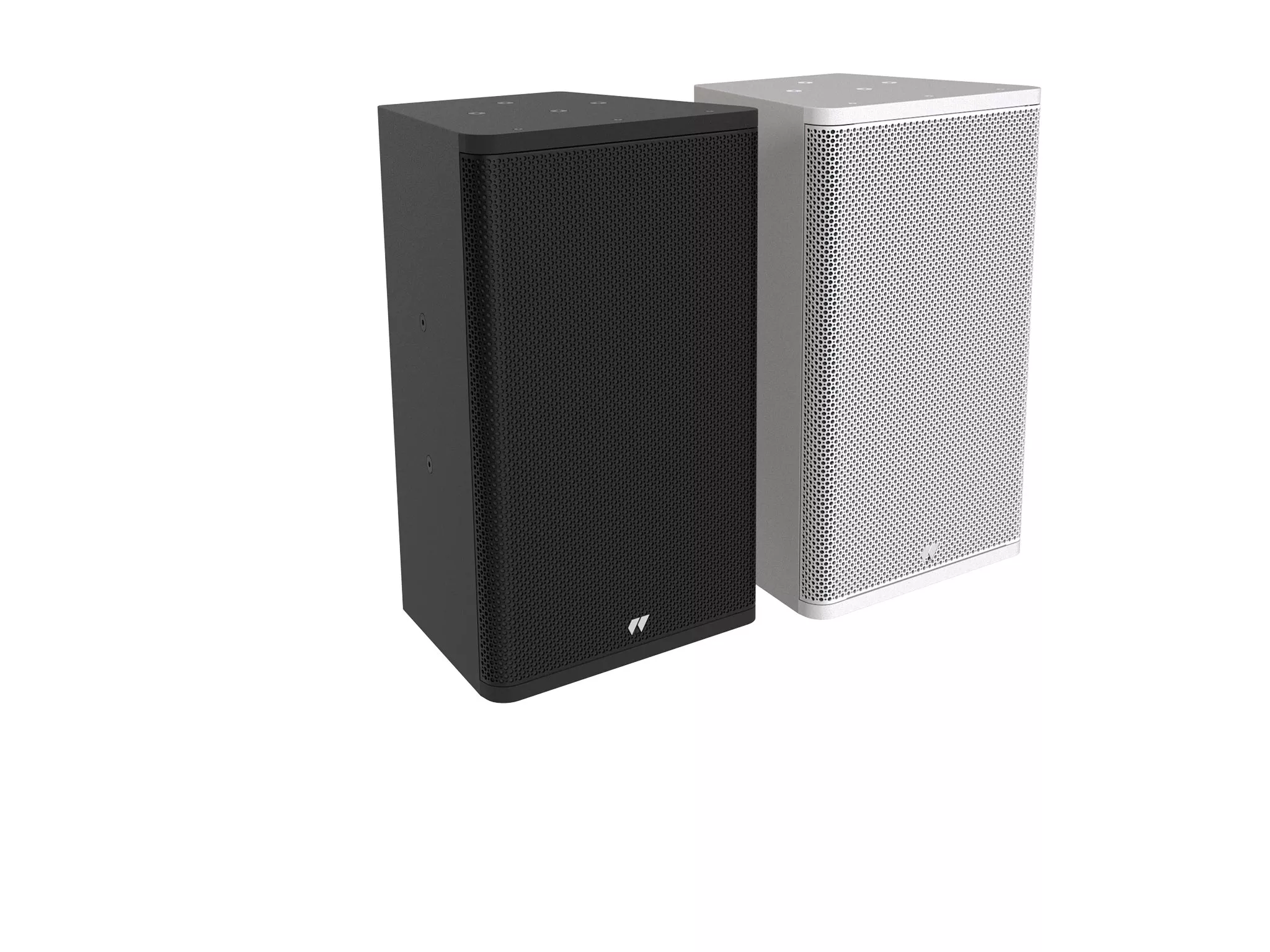

- Available in black and white.
| Type | Two ways. Passive |
| Power | 300 W RMS / 600 W Program |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 10 " Woofer (2" Voice Coil) |
| HF Transducer | 1,3" Compression Driver (1" Voice Coil)/ 1.3" Compression Driver (1" Voice Coil) |
| Sensitivity | 91 dB |
| Max SPL | 118 dB |
| Frequency Range | 65 Hz - 19 kHz |
| Coverage Angle (H x V) | 70º x 100º |

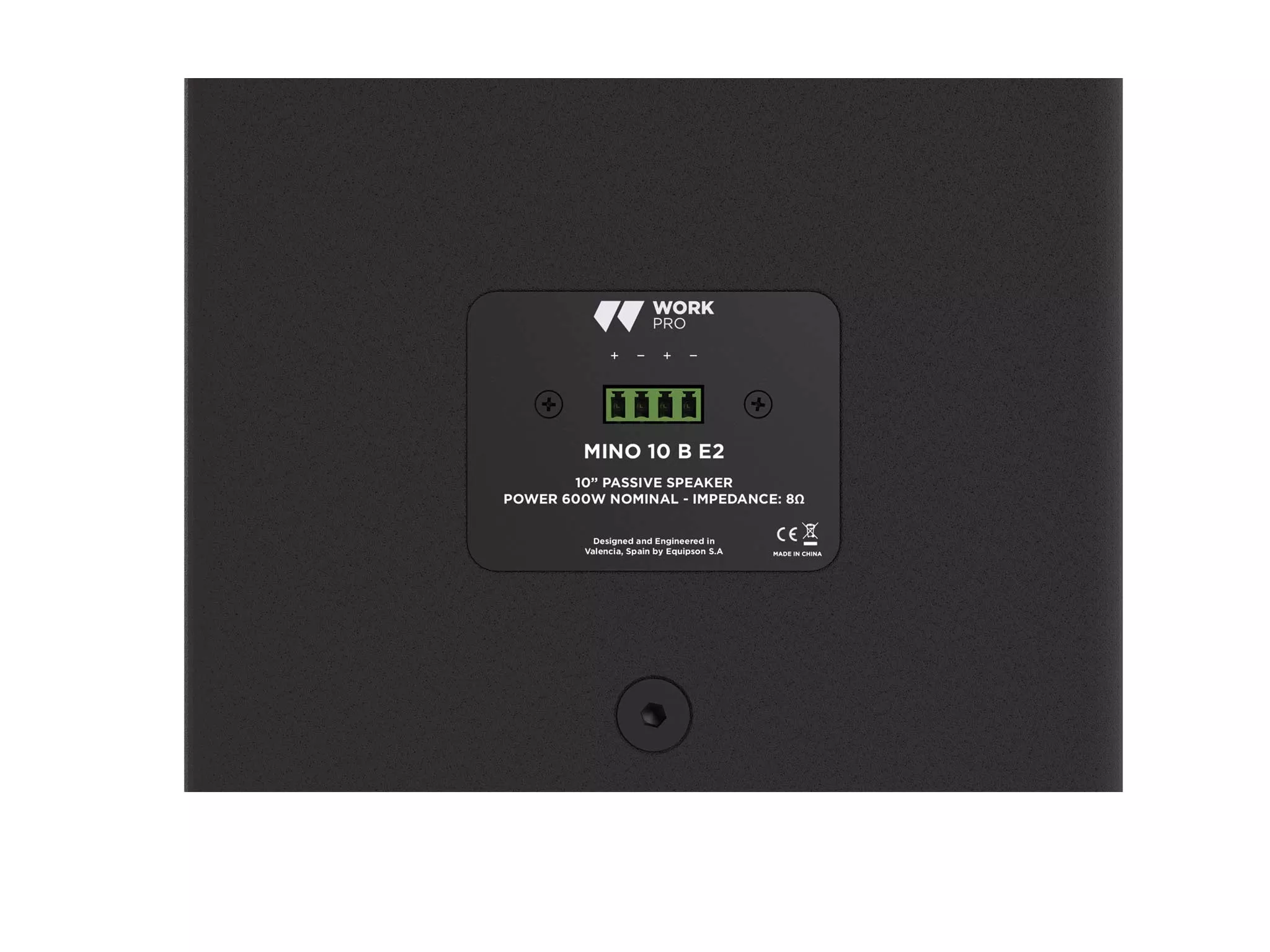

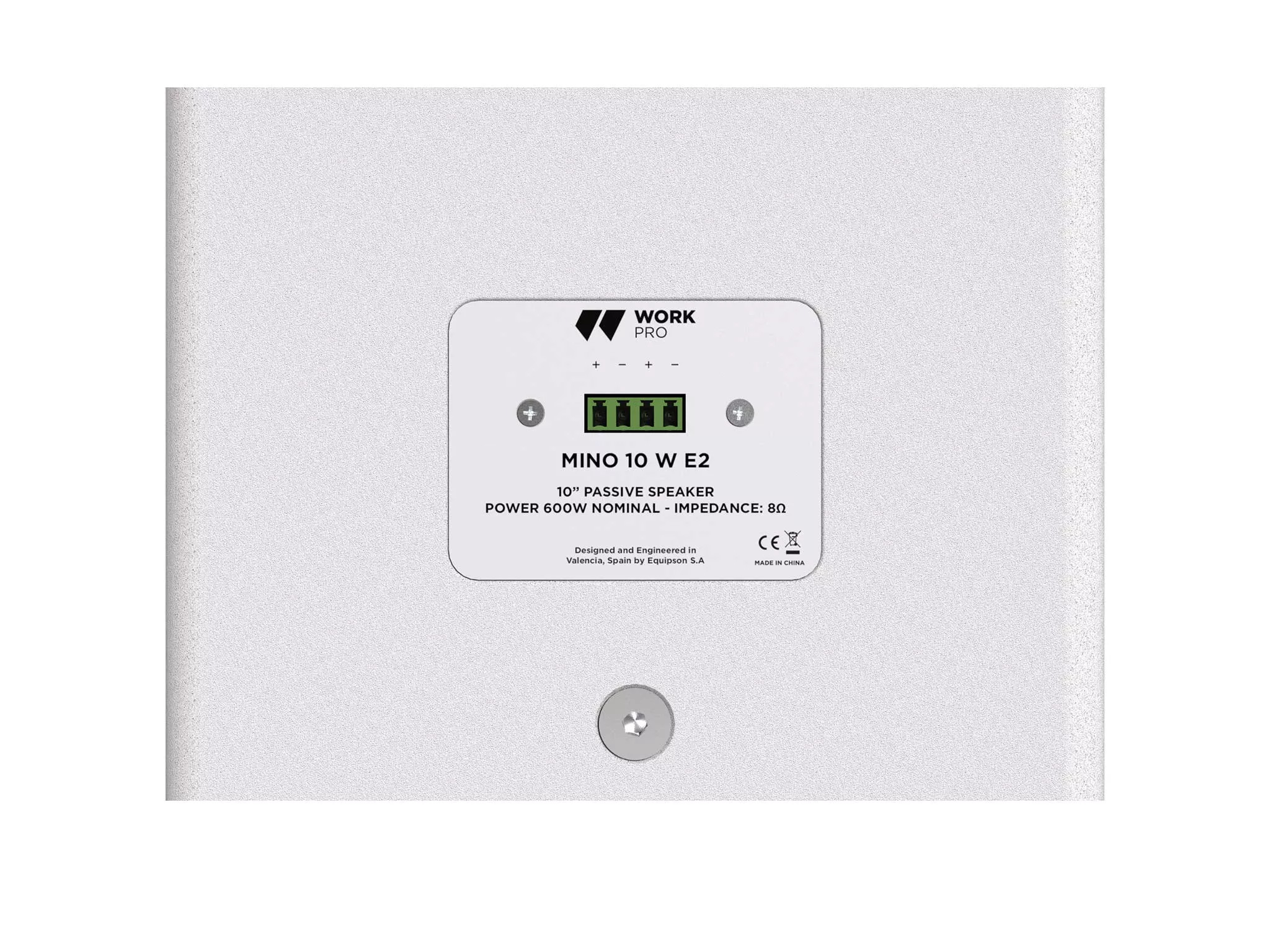

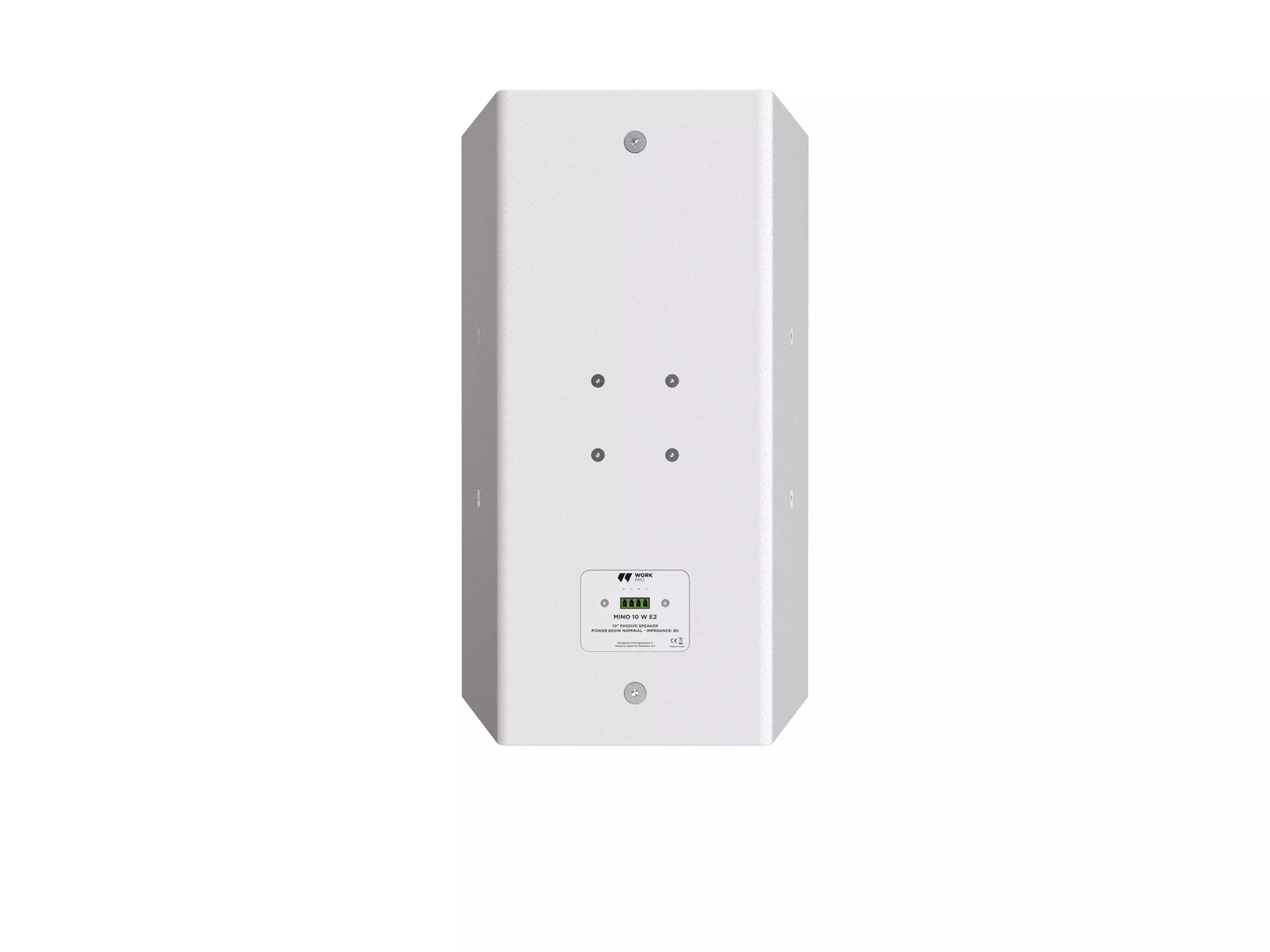

| Connectors | Euroblock (4 pin) |
| Enclosure material | High density fiberboard |

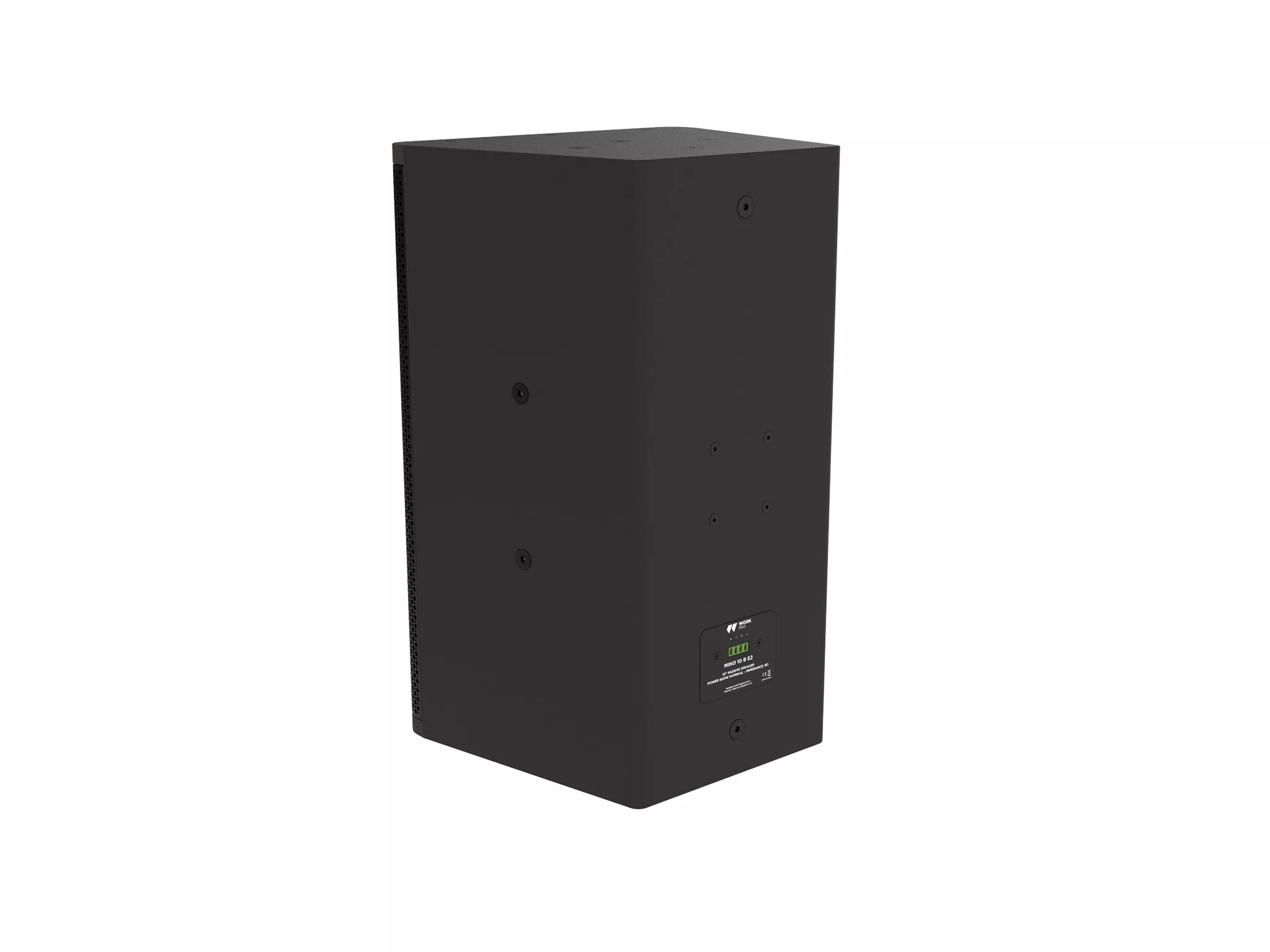

| Useful Metric Points | 14 x M8 |

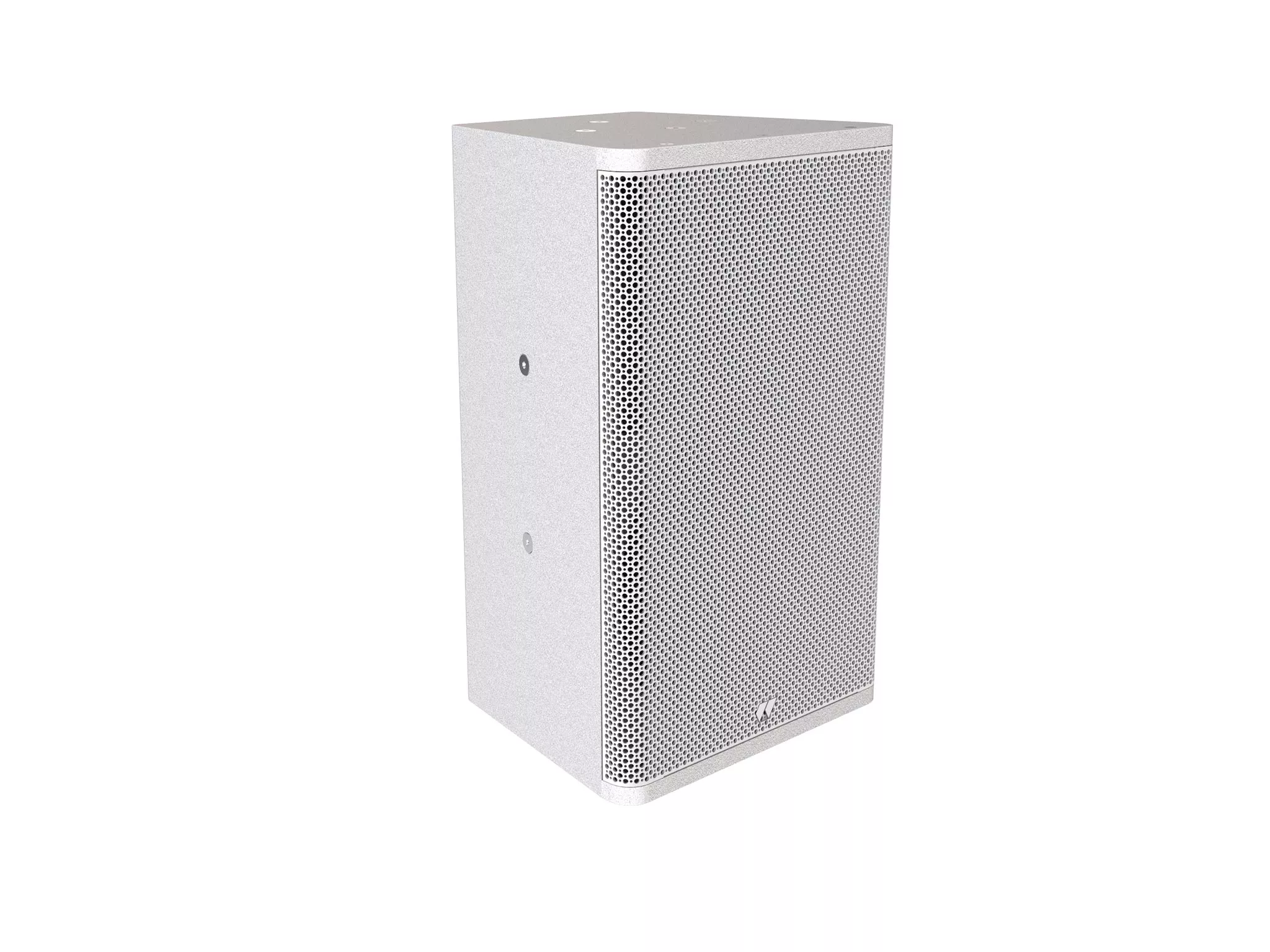

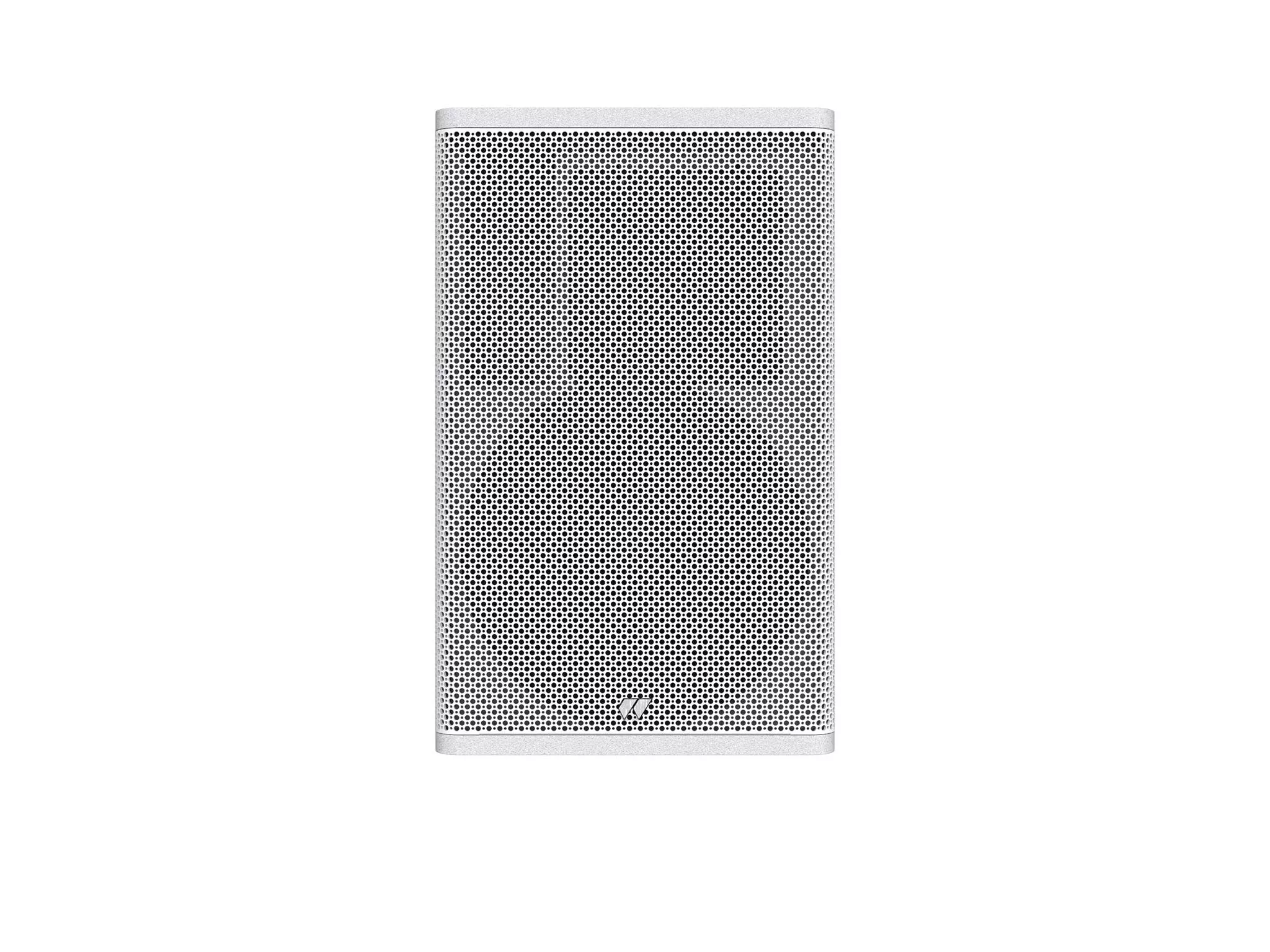

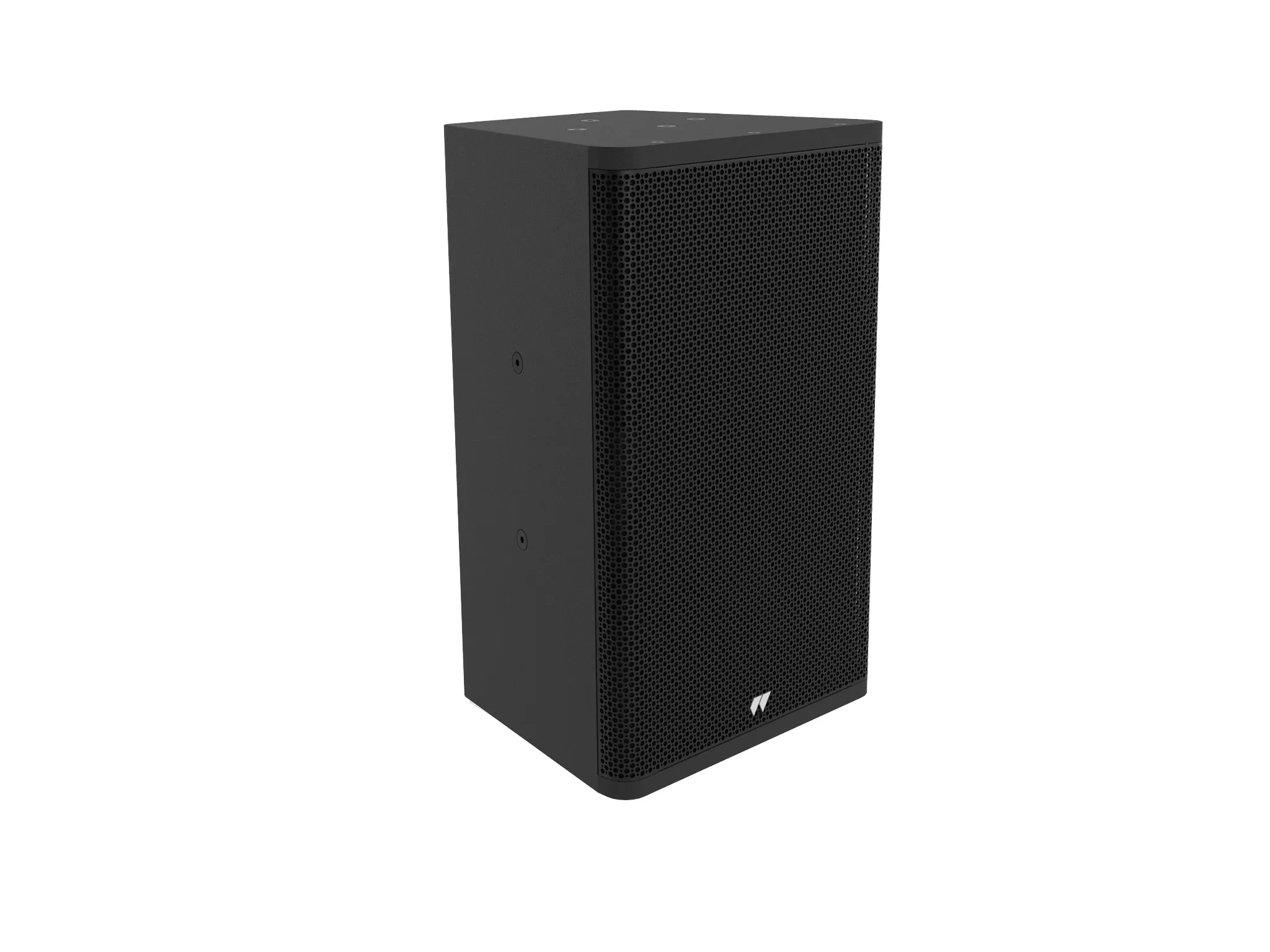

| Available Colors | Black and White |
| Other Information | Rotatable Diffuser (4 Positions) |
