Mixers

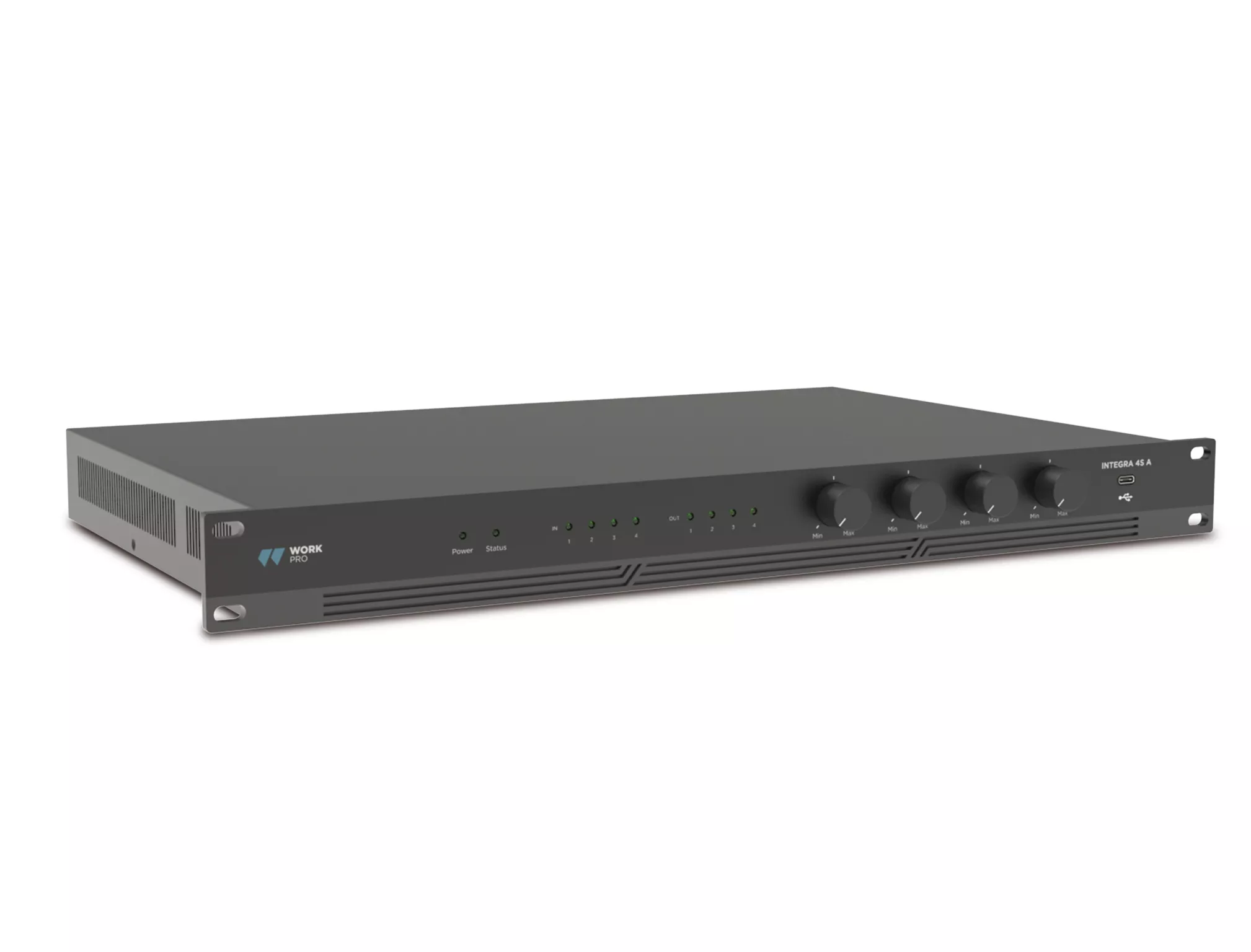

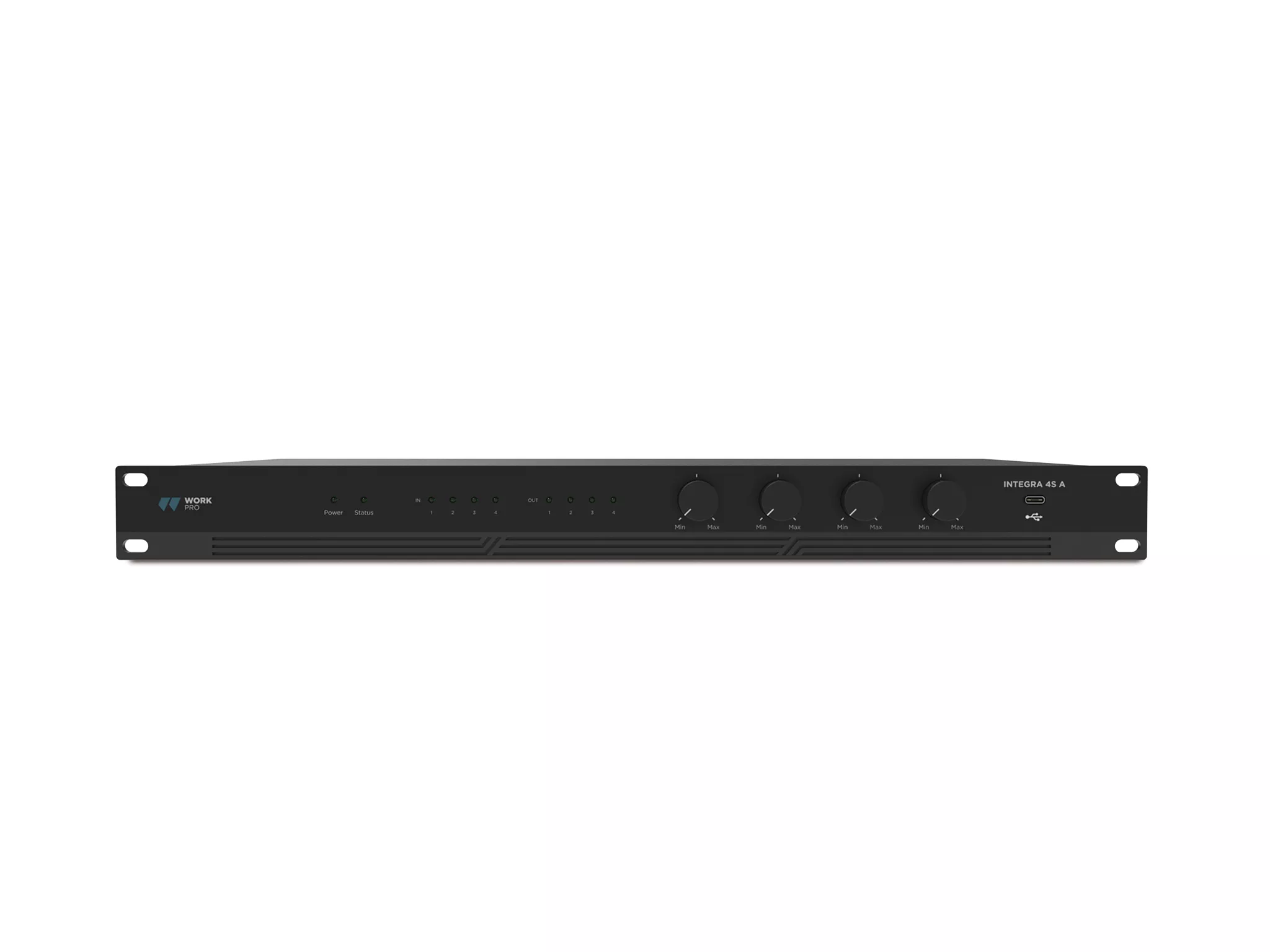

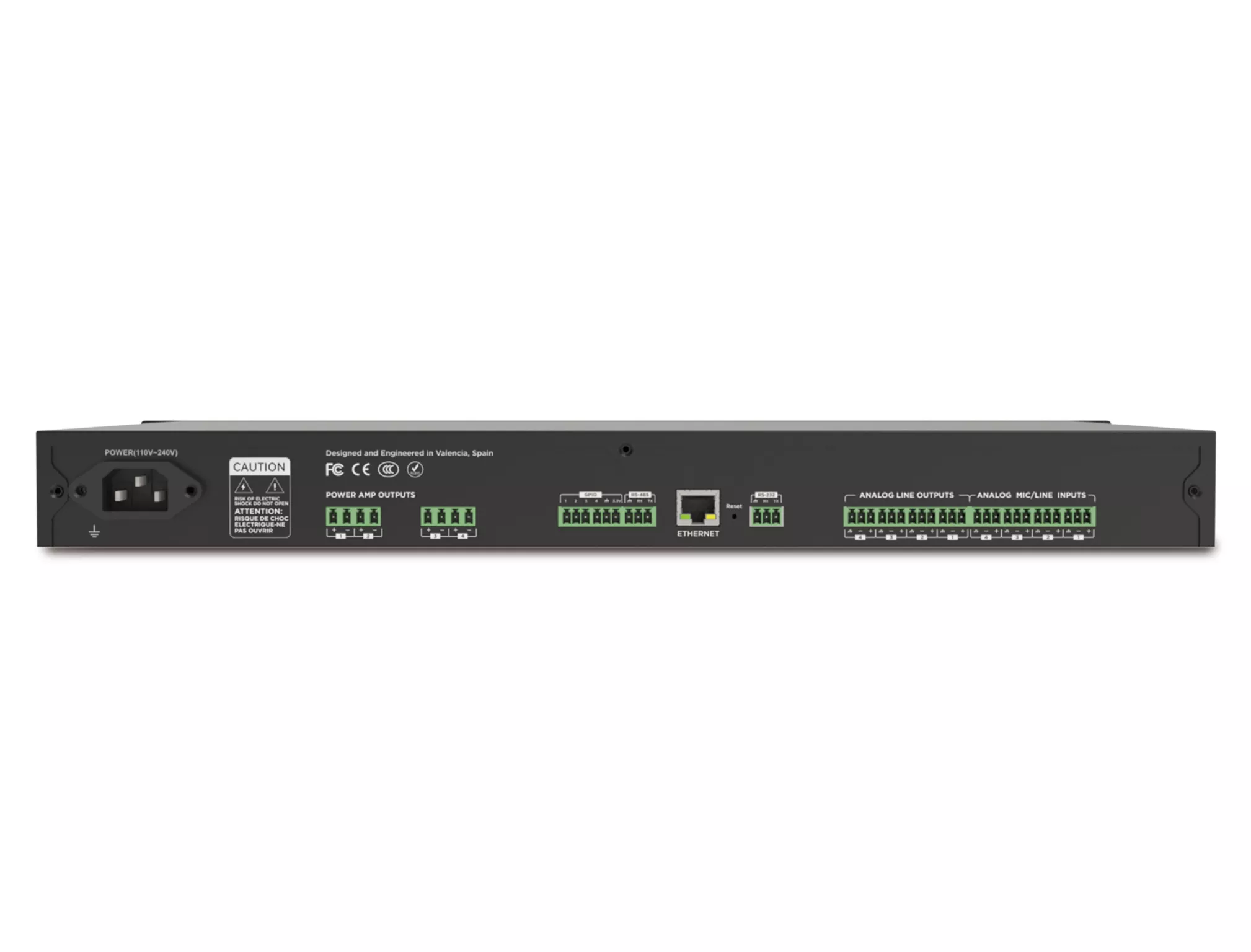

INTEGRA 4S A
#58WIN020
Digital audio matrix 4 x 4 channels amplified, DSP and PC/App control. 300W@4 Ohm
INTEGRA 4S A adds amplification to the INTEGRA concept. In this case, 4 outputs of 300W each.
With configurable DSP architecture per channel, it adjusts gain, EQ, compression, limiting and more, all with the ease of a click. The visual matrix and auto-mix module give you unparalleled flexibility as well as the addition of amplified outputs. Our free and powerful native management software puts the power in your hands.
Filter bank on the inputs, independent compression/limiting on each output and an APP for mobile devices to control everything from your pocket.
Main information
- 4 x 4 analog channels 300W @ 4 Ohm per output
- Programmable DSP architecture per channel
- Customizable control software and APP
- Audio processor IC 24 bit / 48kHz Shark 450 MHz
| Audio input | 4 Analógicas Balanceadas (Euroblock)/ 4 Analog Balanced (Euroblock) |
| Power | 4 x 300W @ 4 Ohm |
| Processing per input channel | Expander, Compressor, Auto Gain Compensation, EQ 8 bands, |
| Audio Output | 4 Analógicas Balanceadas (Euroblock) Amplificadas 300W/ 4 Analog Balanced (Euroblock) 300W amplified per output |
| Output channel processing | Filtrer, EQ, Delay, Limiter |
| THD+N | 0.003%@4dBu |
| Maximum output level | +18dBu |
| Sampling frecuency | 24 bit / 48 kHz |
| Filter types | essel, Butterworth, Linkwitz-riley |
| No. Memories | 16 Presets |
| Control protocols | RS232, RS485, UDP, TCP, 4 GPIOs |
| Network Ports | RJ45 |
| Ethernet | UTP |
| Power supply | 230V 50Hz |
| Consumption | <40W |
| Dimensions | 482 x 260 x 45mm |
| Weight | 3 kg |
| Functions | Signal matrix, Automix, 3 filters per output, Polarity inversion, Noise gate, Compressor, Delay, 5 types of EQ in 8 in/OUT parameters, Sine wave generator and Pink and White noise, Acoustic Echo Cancellation and Automatic Noise Supressor |
| Control software | Integra DSP for PC and Integra REMOTE for Tablet/Smartphone |
