Ceiling Loudspeakers
IC 800 T
#82MEG186
Ceiling speaker. 6 W @ 8 Ohm. 6/3 W @ L100V. 8'' woofer.

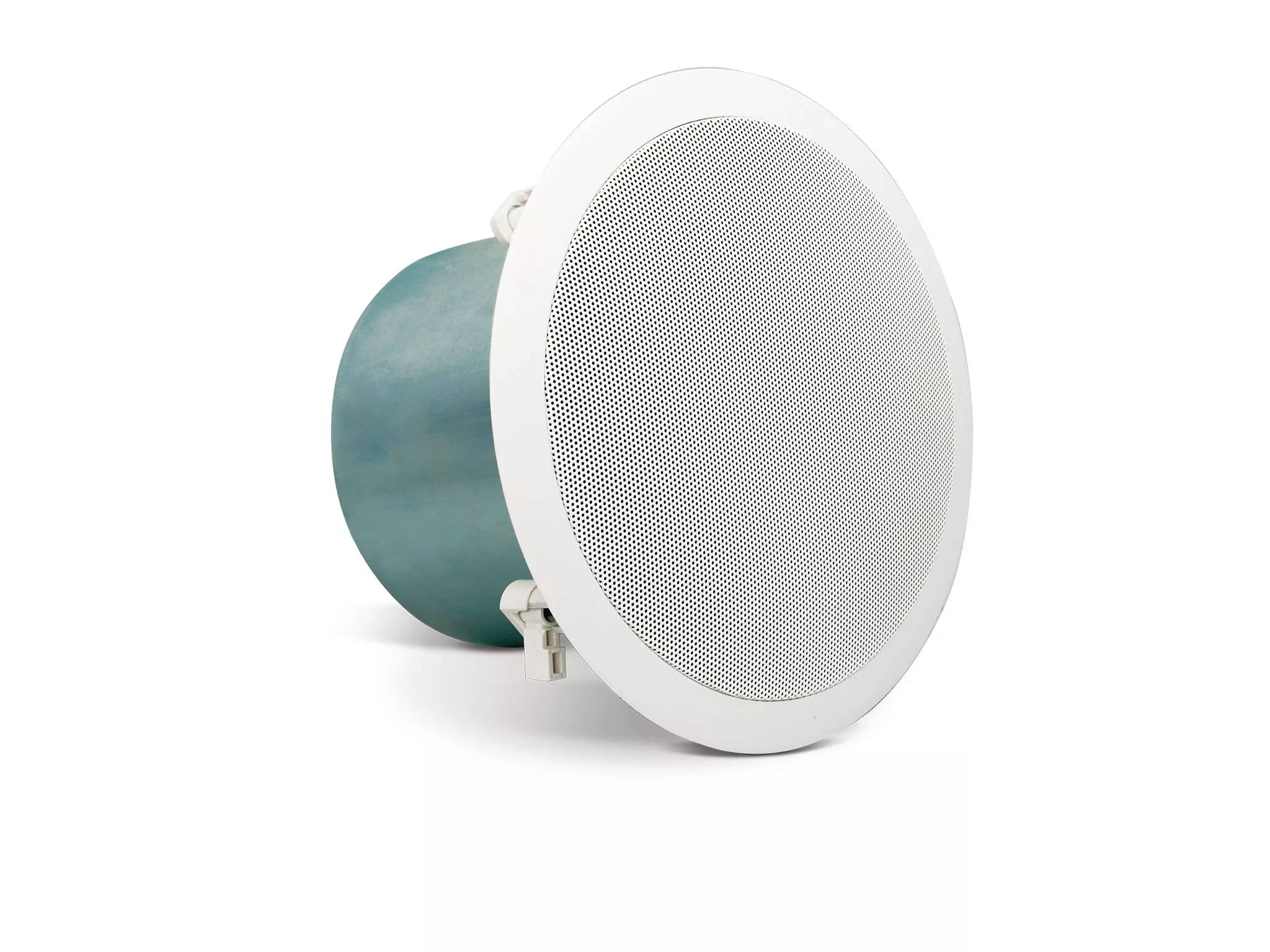

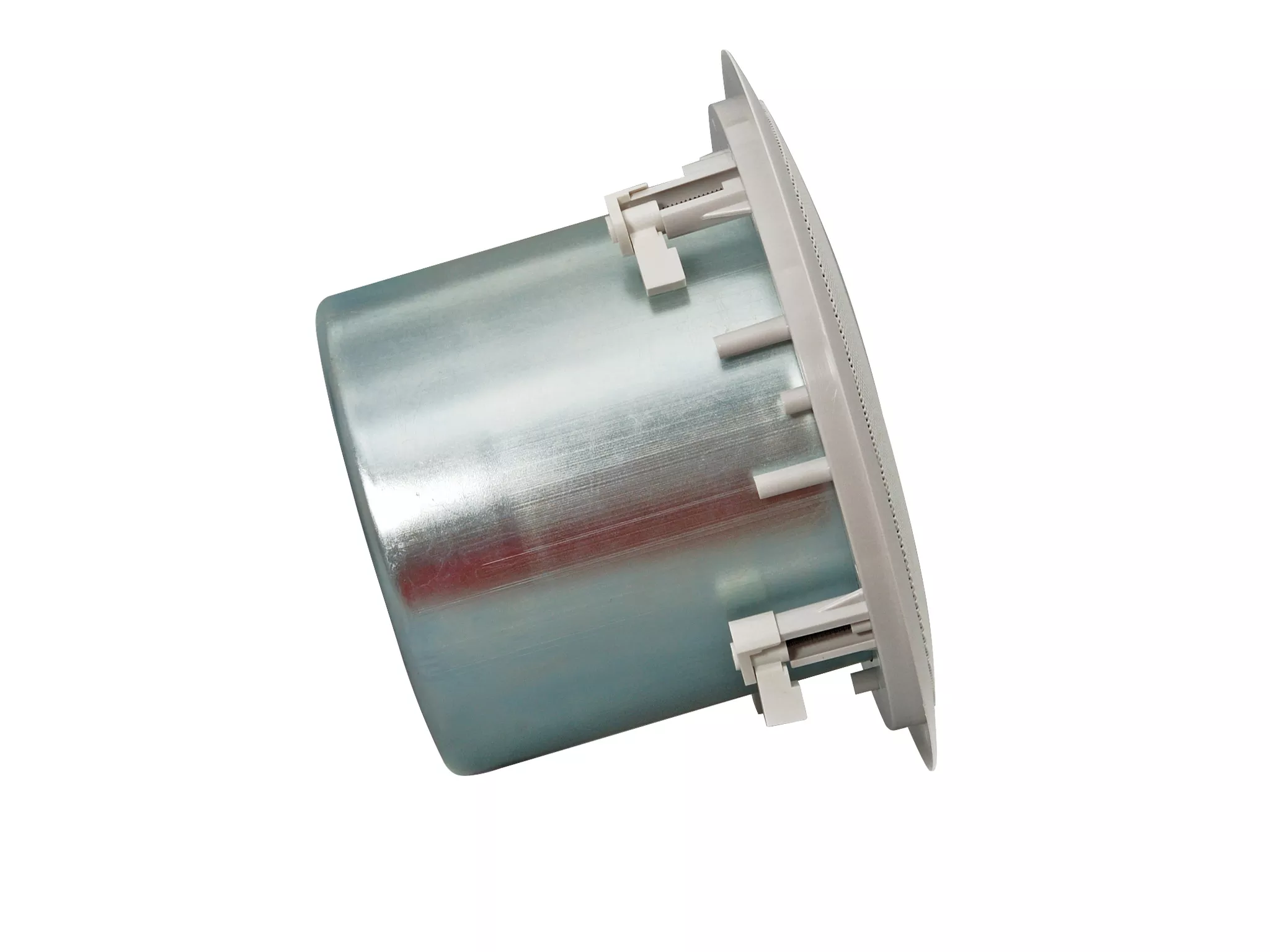

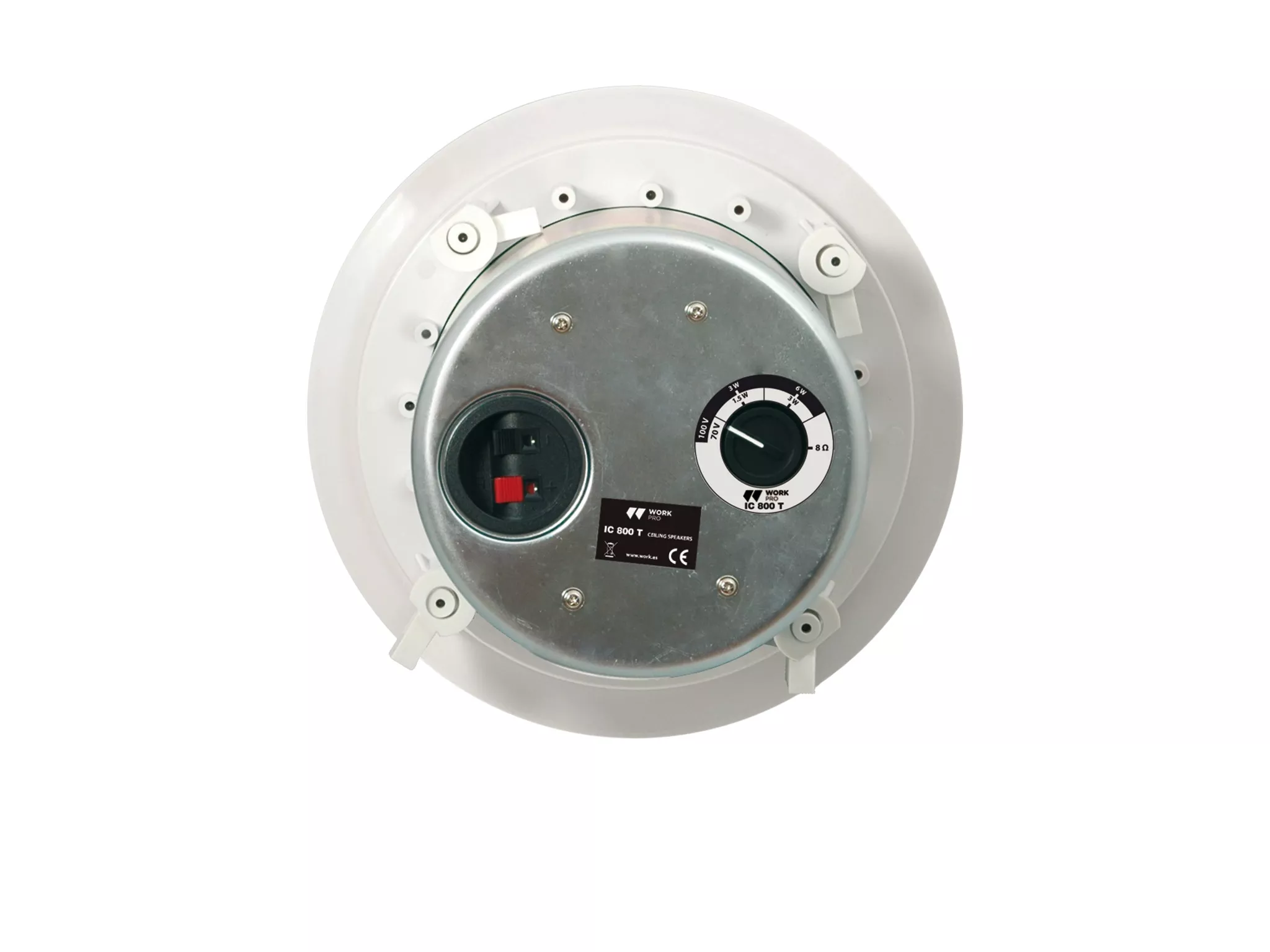

IC 800 T is a ceiling loudspeaker composed of 8 "woofer, which can work in low impedance installations supporting a power of 6 W @ 8 Ohm, and in 70/100 volt line installations, having a select of powers (6/3 / 1.5 W.) It is built with a metal casing and ABS plastic grille, and has rotating anchors.
Main information
- Low impedance and 70/100 V line.
- Metal enclosure.
- 8´woofer
Product main measures (m)
0.27 x
0.27 x
0.17
| Type | Passive |
| Low Impedance Power | 6 W @ 8 Ohm |
| L100V Power | 6 W / 3 W |
| L70V Power | 3 W / 1.5 W |
| Transducer | Woofer 8" |
| Sensitivity | 92 dB |
| Max SPL | 99 dB |
| Mounting diameter | 240 mm |
| Fixation | Rotating anchors |
| Material | Enclosure: Metal; Grille: ABS plastic |
| Colour | White (RAL 9016) |
| Dimensions | Ø270 x 170 mm |
| Weight | 2.3 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.27 | 0.27 | 0.17 | 2.30 |
| Box | 0.32 | 0.31 | 0.22 | 2.80 |
| Master Carton | 0.64 | 0.34 | 0.48 | 13.00 |
IC 800 T | Acoustic Simulator
Optimise your IC 800 T with our Acoustic Simulator
With this online tool you can quickly design your PA system, calculating how many speakers and amplifiers you need and where to place them.
