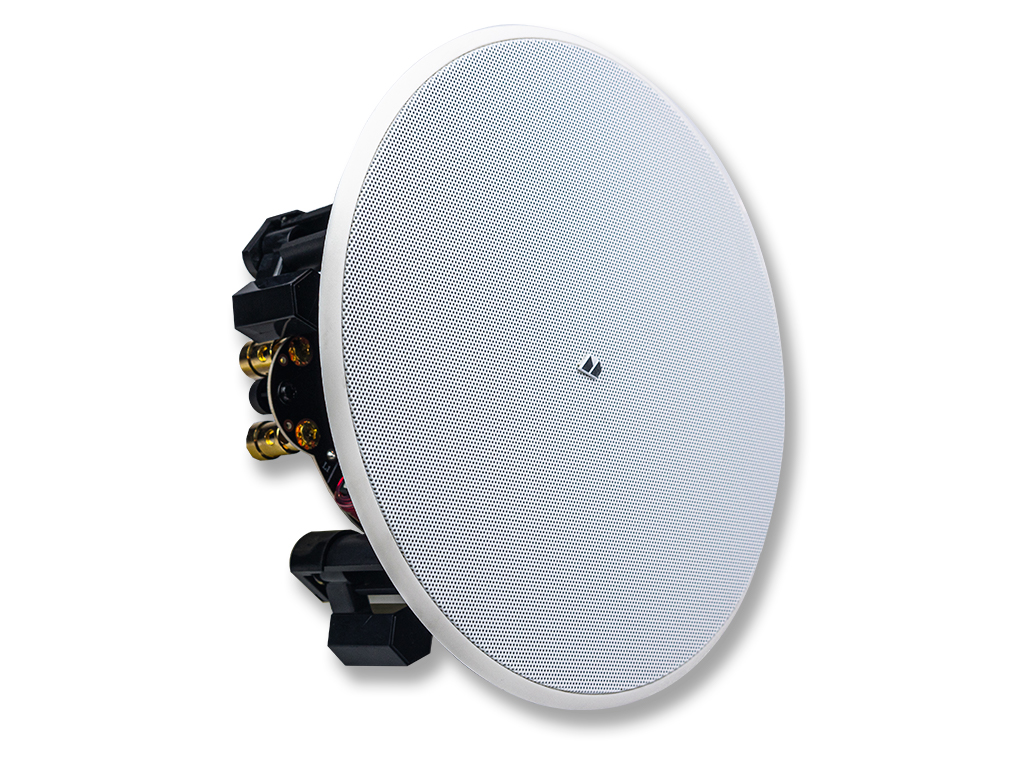

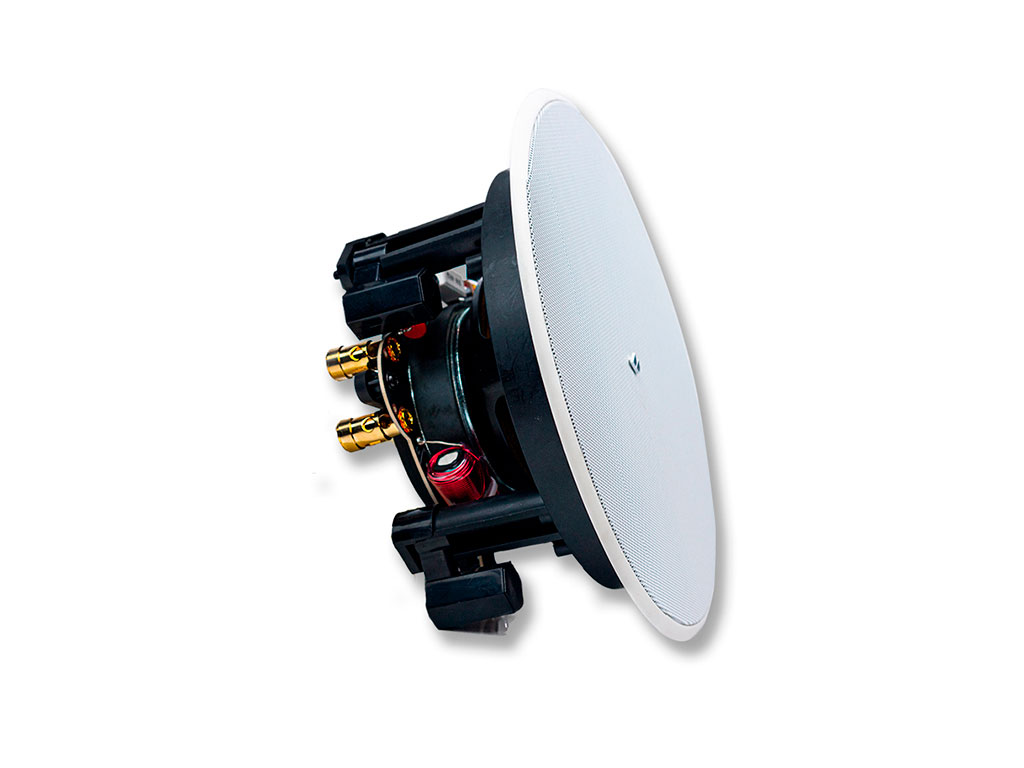

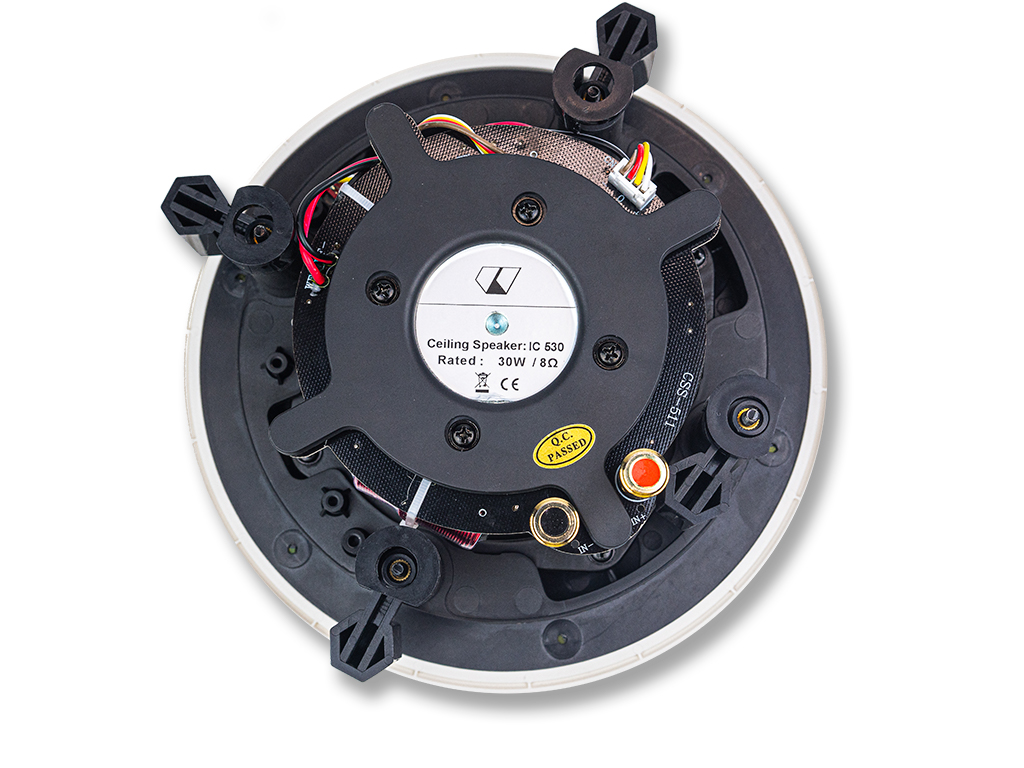

Ceiling Loudspeakers
IC 530
#82MEG431
Ceiling speaker. 30 W @ 8 Ohm. Woofer 5'' + Tweeter 3.4''.
The IC 530 is ideal for creating ambience in spaces with excellent sound quality, thanks to a state-of-the-art woofer and tweeter. Its filter system ensures the great resistance of the speakers. It can be connected to low impedance installations. The ceiling speakers have a selector with -12dB/Oct low-pass filter o -18dB/Oct high-pass filter, allowing each speaker to work in a better frequency band. Also, the tweeter can be tilted by 30º due to the site environment.
The body of the speaker is made of ABS plastic and its metal grille, covering almost the entire speaker, configuring a discrete element in any installation.
Main information
- Ceiling speaker 30 W @ 8 Ohm.
- Woofer 5' + Tweeter 3.4'.
- ABS plastic and metal grille.
- High-pass, low-pass filter selector.
Measures (Box) (m)
0.24 x 0.23 x 0.14
| Type | 2-way ceiling speaker |
| Low Impedance Power | 30W@ 8 ohm/ 30W@8 ohm |
| LF Transducer | 5" |
| HF Transducer | 3/4" |
| Frequency Range | 50 Hz - 20 kHz |
| Coverage | 165º |
| Sensitivity | 86 dB |
| Max SPL | 101 dB |
| Mounting diameter | 172 mm |
| Mounting depth | 30 mm |
| Material | ABS /Metal |
| Colour | White RAL9016 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.24 | 0.23 | 0.14 | 2.00 |
| Master Carton | 0.50 | 0.25 | 0.33 | 7.00 |
