Loudspeakers
ENTAR 8A
#50ENT009
Self-powered loudspeaker. 700W amplifier. DSP. Woofer 8' + turnable Driver 1'. Plywood. Black color.
ENTAR 8A is a two-way self-powered loudspeaker that incorporates a 700W amplifier, made of wood. It consists of a 8" woofer with a 1.5" voice coil and a 1" turnable compression driver, and incorporates a signal processing DSP. Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support. It has an insertion vessel for a 35 mm support and rigging fixation points. Incorporates 1 Mic/Line input with level control.
Main information
- 700W amplifier.
- 8-inch Woofer + 1-inch turnable Driver.
- Signal processing DSP.
- Made of plywood.
Measures (Box) (m)
0.34 x 0.34 x 0.55
| Type | 2-Way. Class D amplifier |
| Power | 350W RMS/700W Program/ 700W amplifier. |
| LF Transducer | 8" Woofer; 1.5" Voice Coil |
| HF Transducer | 1" turnable compression driver |
| DSP | 4 Presets, 3 Filtros HPF, Ajuste curva bass/treble/ 4 Presets, 3 HPF Filters, Bass / Treble Curve Adjustment |
| SPL Max | 124 dB |
| Coverage Angle (H x V) | 73,8º x 53º/ |
| Frequency Range | 70 hz - 20 Khz |

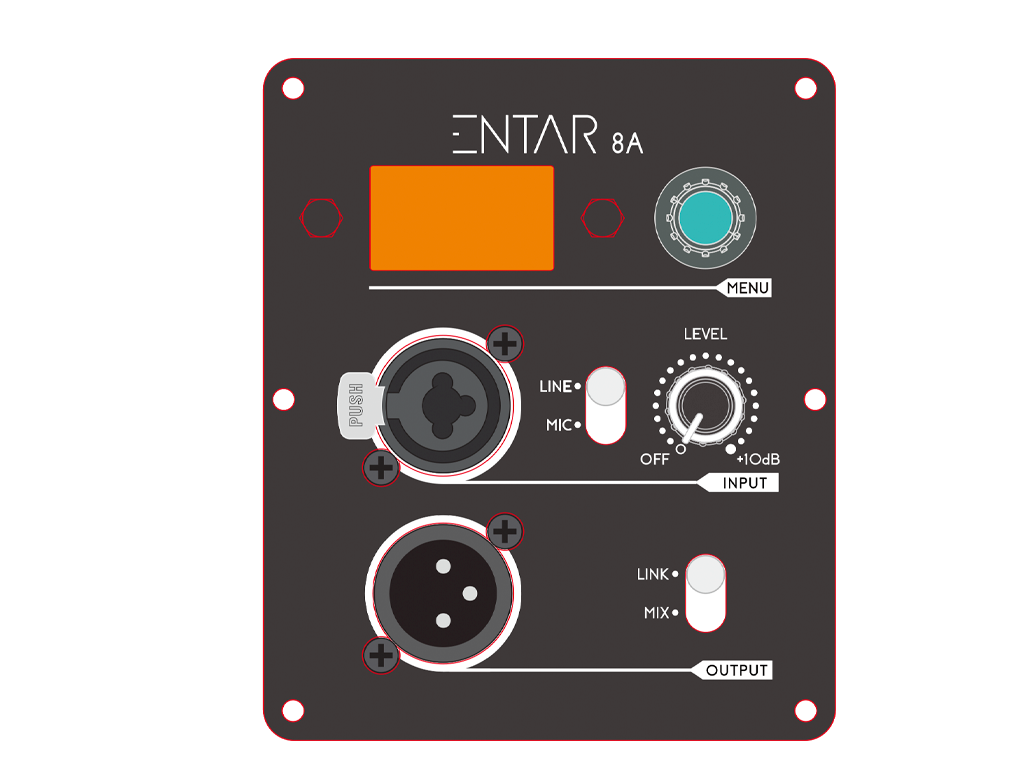

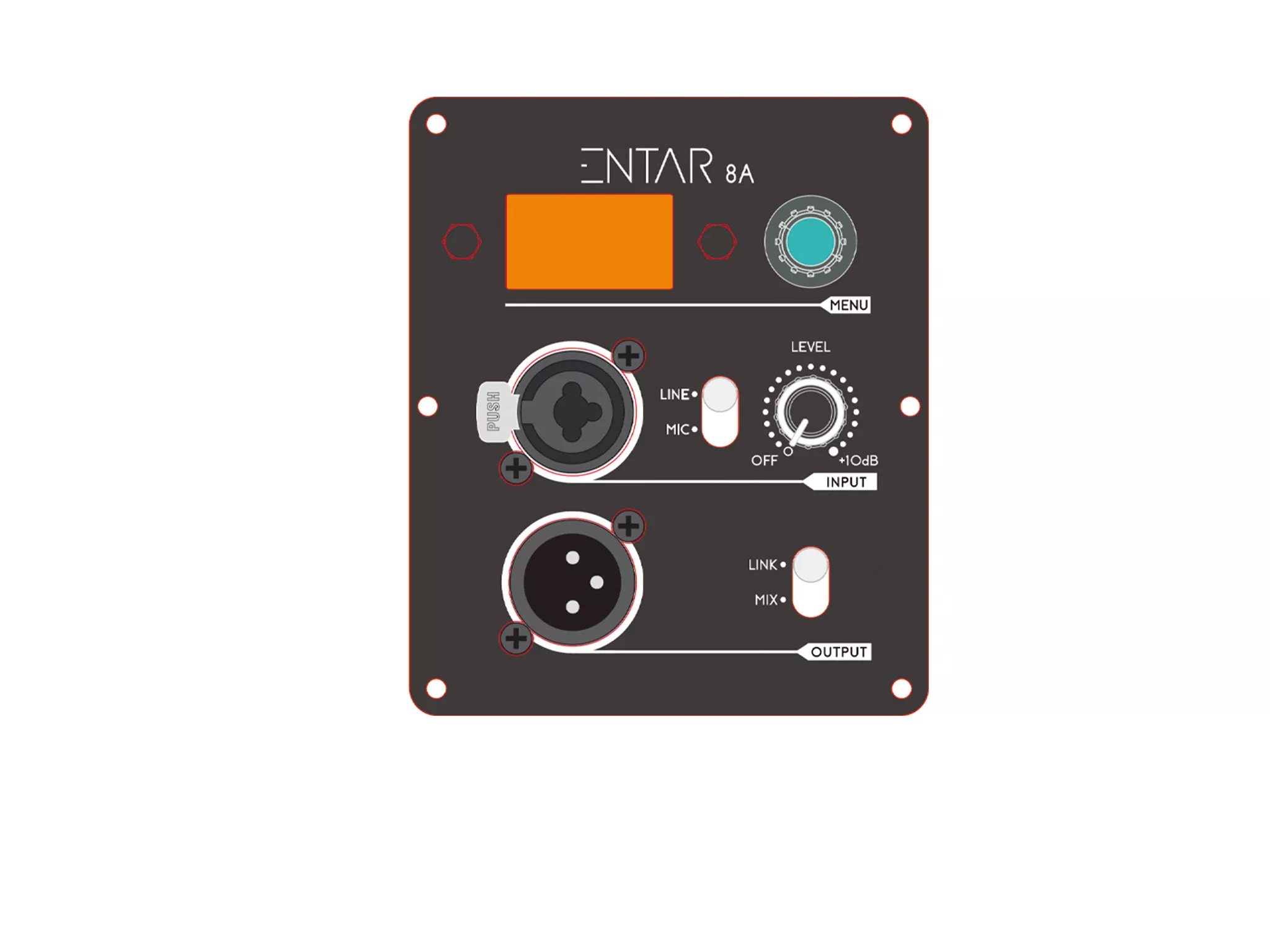

| Connections | 1 x Combi XLR3/Jack TRS 1/4" hembra, 1 x XLR3 macho/ 1 x Combi XLR3/Jack TRS 1/4" female, 1 x XLR3 male |
| Enclosure material | Plywood and metal grille |
| Inserts / Rigging | Insertion: 35 mm Rigging: sections for rigging rail and fixing points |
| Power supply | AC 240 V / 50 hz |
| Colour | Black |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.34 | 0.34 | 0.55 | 11.60 |
