Installation Loudspeakers
ATHOS B12 BLACK
#50ATH012
Passive subwoofer 700W max @ 8 ohm. Woofer 12 inches

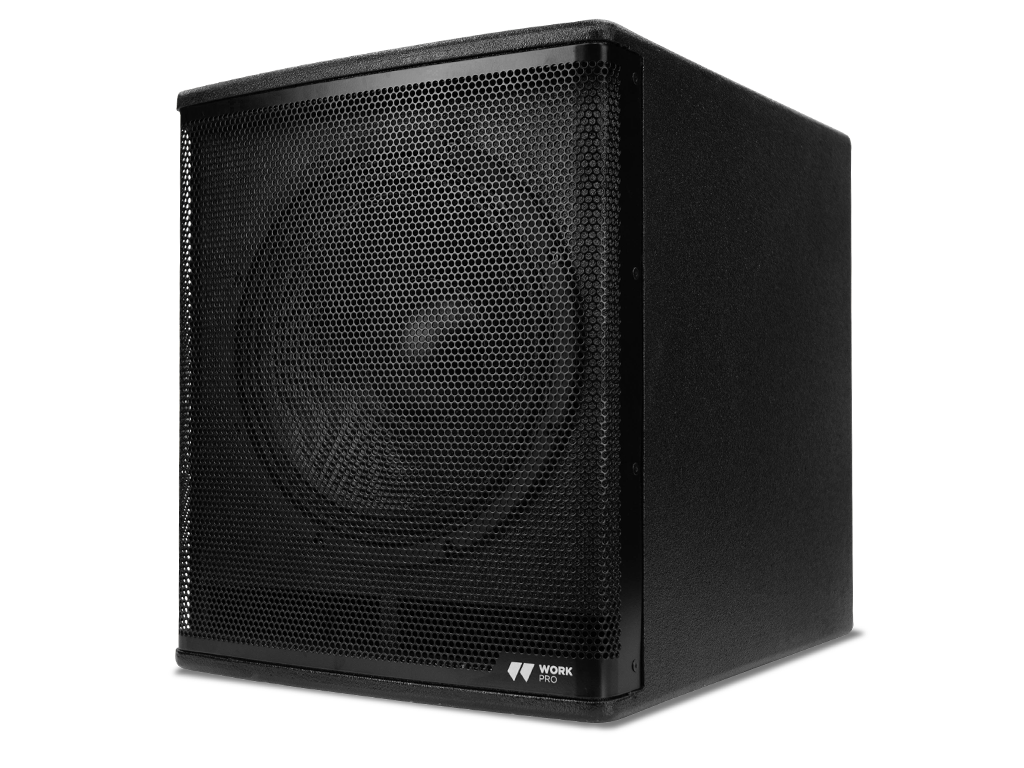

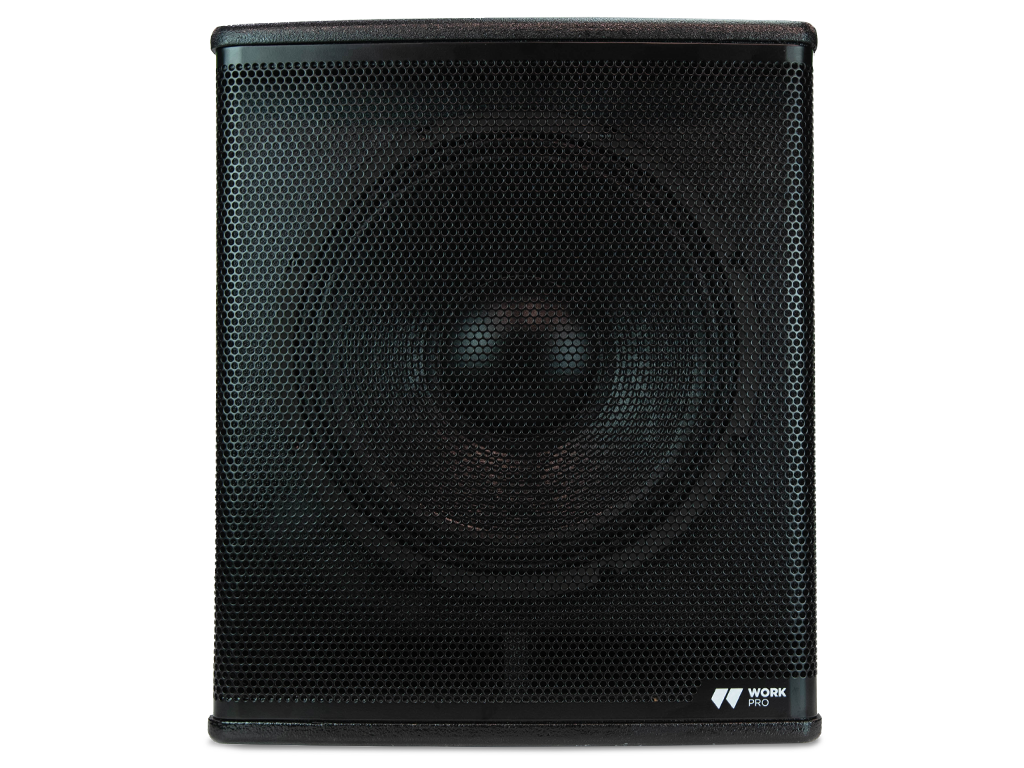

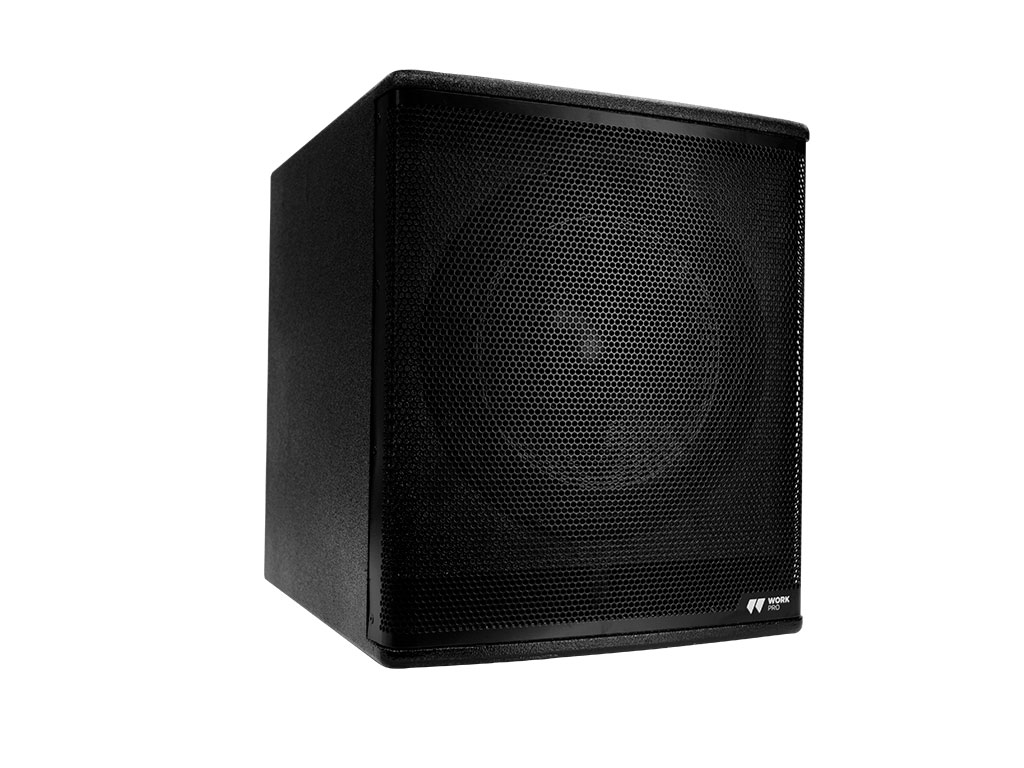

ATHOS B 12 is a passive speaker system with a 12" woofer. Its robust design, elegant finish (made of medium density wood) and shape are very suitable for bass reinforcement applications, such as conference rooms, schools or home cinema installations. The ATHOS B 12 features a 35 mm insert at the top of the woofer.
Main information
- Waterproof passive subwoofer
- Maximum admissible power:700w.
- 415 x 373 x 480 mm (Al x An x Pr)
- Top insert for 35mm bracket.
| Type | Passive, direct radiation |
| Power | 700w Prog. / 350w RMS |
| Transducers | 1x12"woofer, 2"VC 40 oZ ferrite magnet / 1x12 "woofer, 2"VC 40 OZ ferrite magnet |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m) | 95dB |
| SPL Max | 123 dB |
| Frequency Range | 55Hz-250Hz |

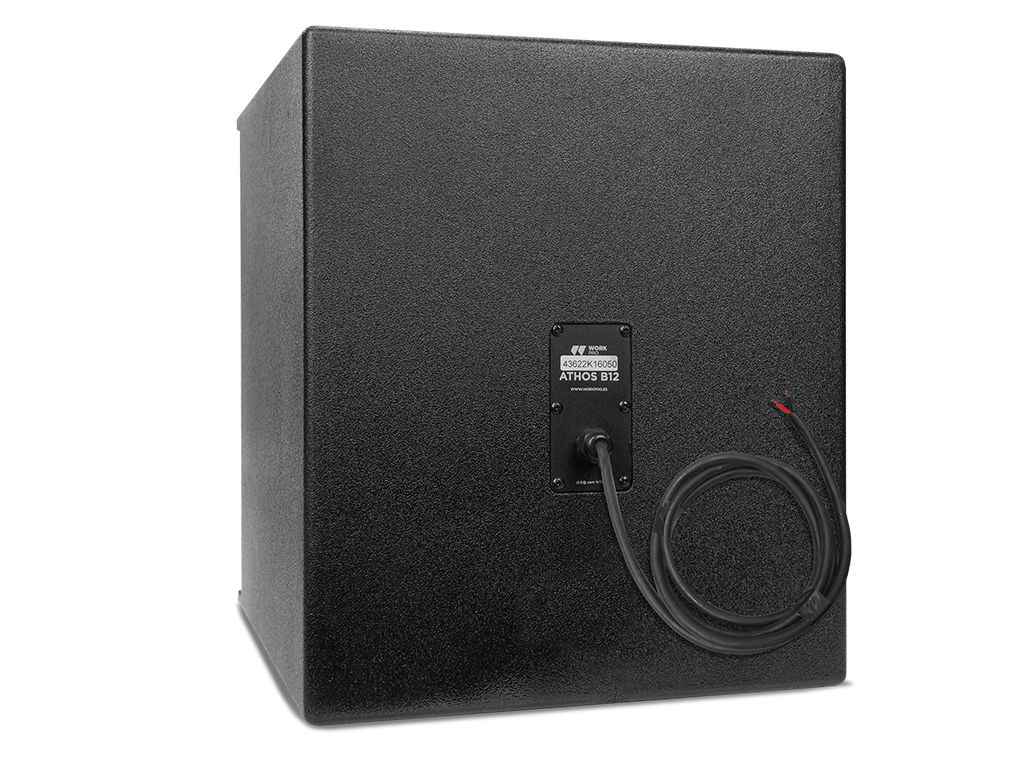

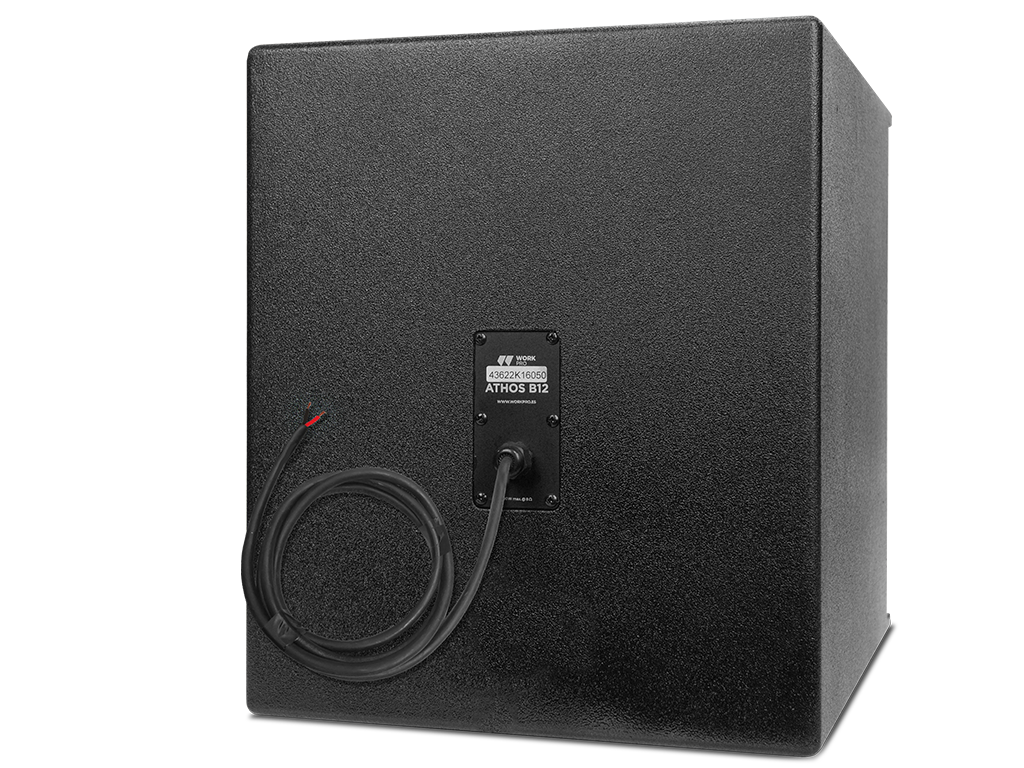

| Connections | Stripped cable |
| Enclosure material | Wooden 15mm MDF |
| Finished | Painting |
| Inserts / Rigging | Side handles / top insert 35mm |
| Colour | Black |
| Dimensions | 375x450x480 mm (An x Al x Pr) / 375x450x480 mm (W x H x D) |
