Installation Loudspeakers

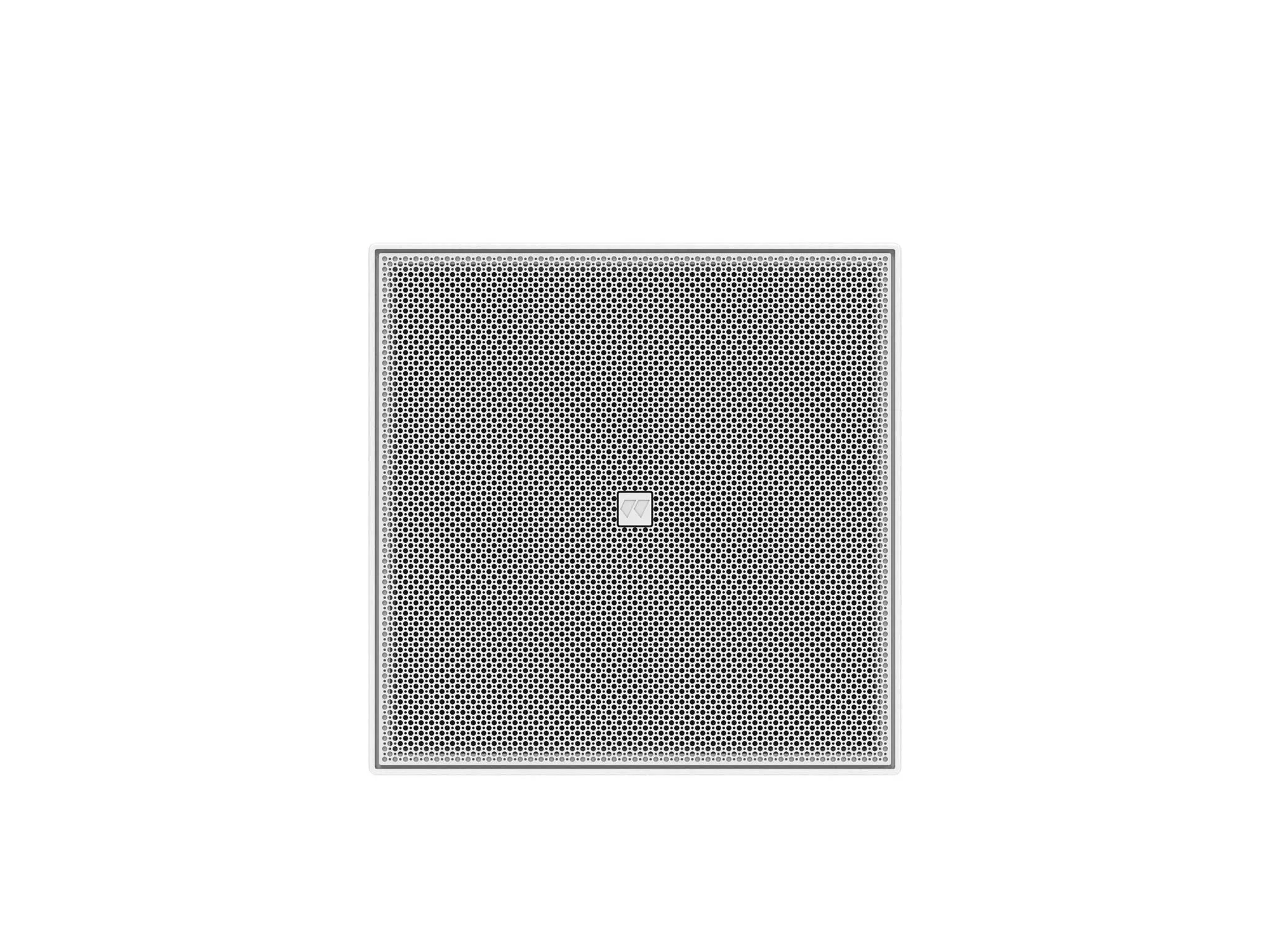

ARENA 6 CX
#50ARE006
Full range 6.5” 300W Waterproof IP54 coaxial speaker
The ARENA 6 CX, 6.5'' compact coaxial loudspeaker, provides 300W @ 8 Ohm and can be integrated into 70/100V line installations, it is designed to provide high quality sound reproduction in applications requiring extreme weather resistance. Its water-resistant polyvinyl construction, hydrophobically treated grille, moisture-sealed crossover and waterproof connector make it reliable under prolonged exposure to harsh environmental conditions.Ideal for stadiums fairgrounds, outdoor entertainment centers, athletic fields, swimming pools background music, worships, multipurpose outdoor and indoor venues, etc.Translated with DeepL
Main information
- Customized high performance woofer & compression driver.

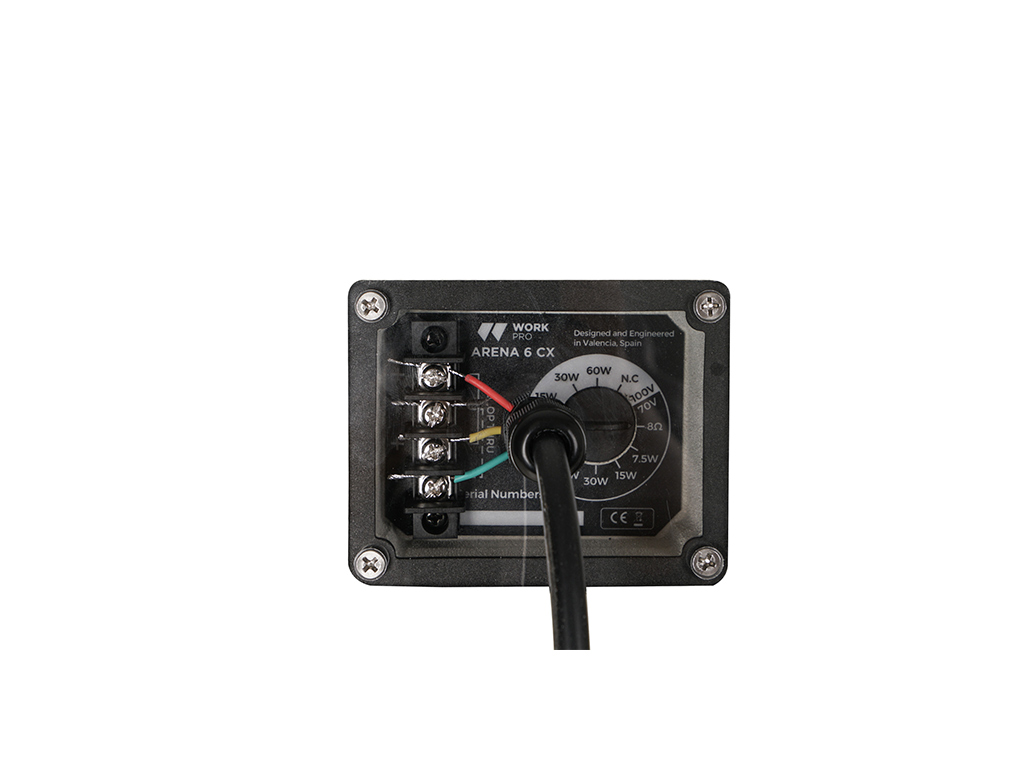

- Built-in 70V/100V transformer with power tap switch.
- Water resistant polyvinyl board with quality textura coating.
- Hidrophobically-treated Grill. Waterproof strip connector.
Measures (Box) (m)
0.34 x 0.34 x 0.35
| Type | Waterproof coaxial speaker |
| Low Impedance Power | 150 W RMS / 300 W Program |
| L100V Power | 60 W / 30 W / 15 W |
| L70V Power | 60 W / 30 W / 15 W / 7,5W/ 60 W / 30 W / 15 W / 7.5W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 6.5" Woofer (1.5" Voice Coil) |
| HF Transducer | 1" Compression Driver (3/4" Voice Coil) |
| Sensitivity (1W @ 1m) | 97 dB |
| SPL Max | 125 dB/ 122 dB |
| Frequency Range | 80 Hz - 20 kHz |
| Coverage Angle (H x V) | 110° x 110° |
| Connections | Terminal blocks |
| Enclosure material | Water-repellent polyvinyl |
| Includded accessories | Lira |
| IP Protection | IP 65 |
| Other Information |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.34 | 0.34 | 0.35 | 8.00 |
