Installation Loudspeakers

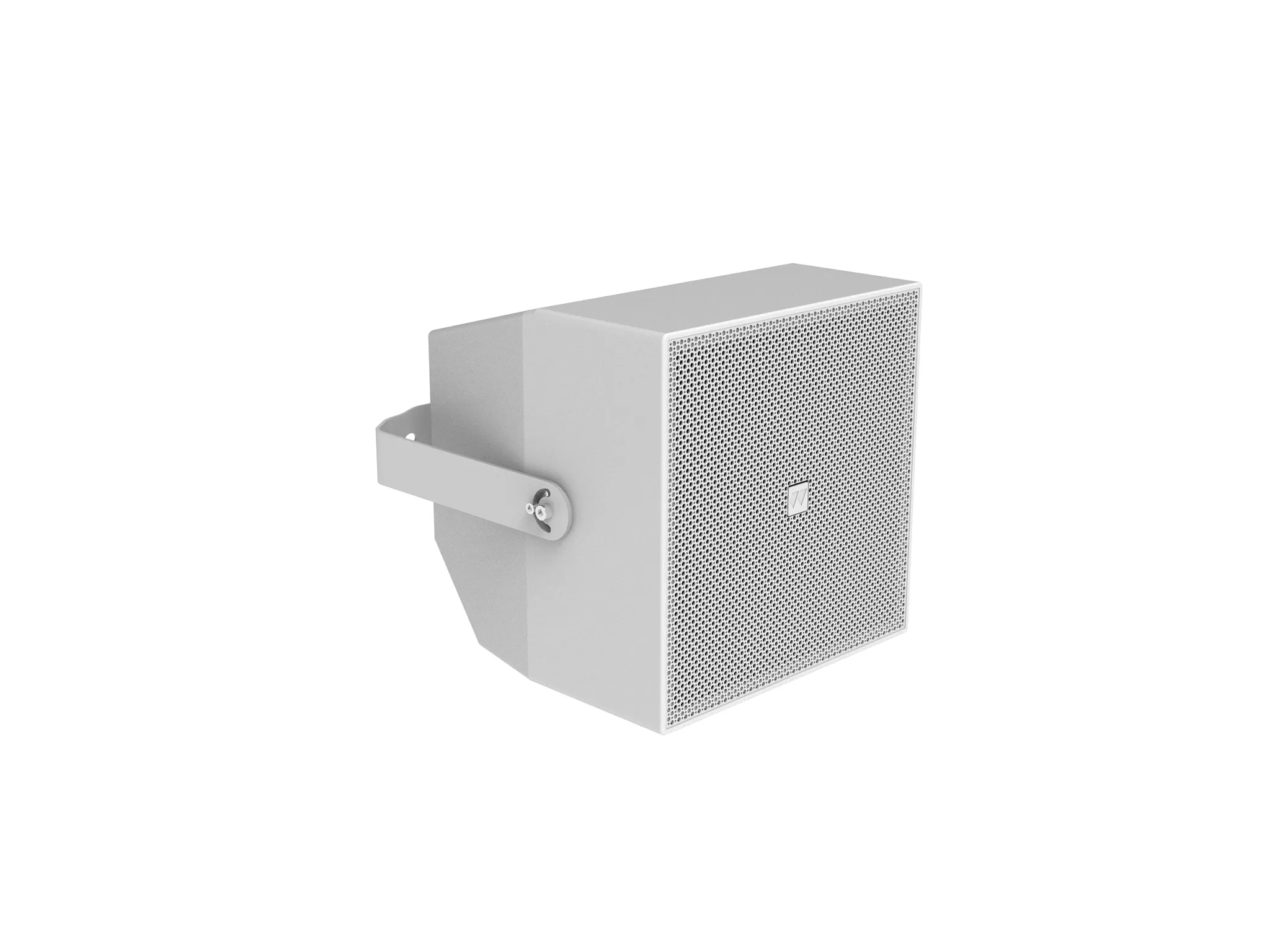

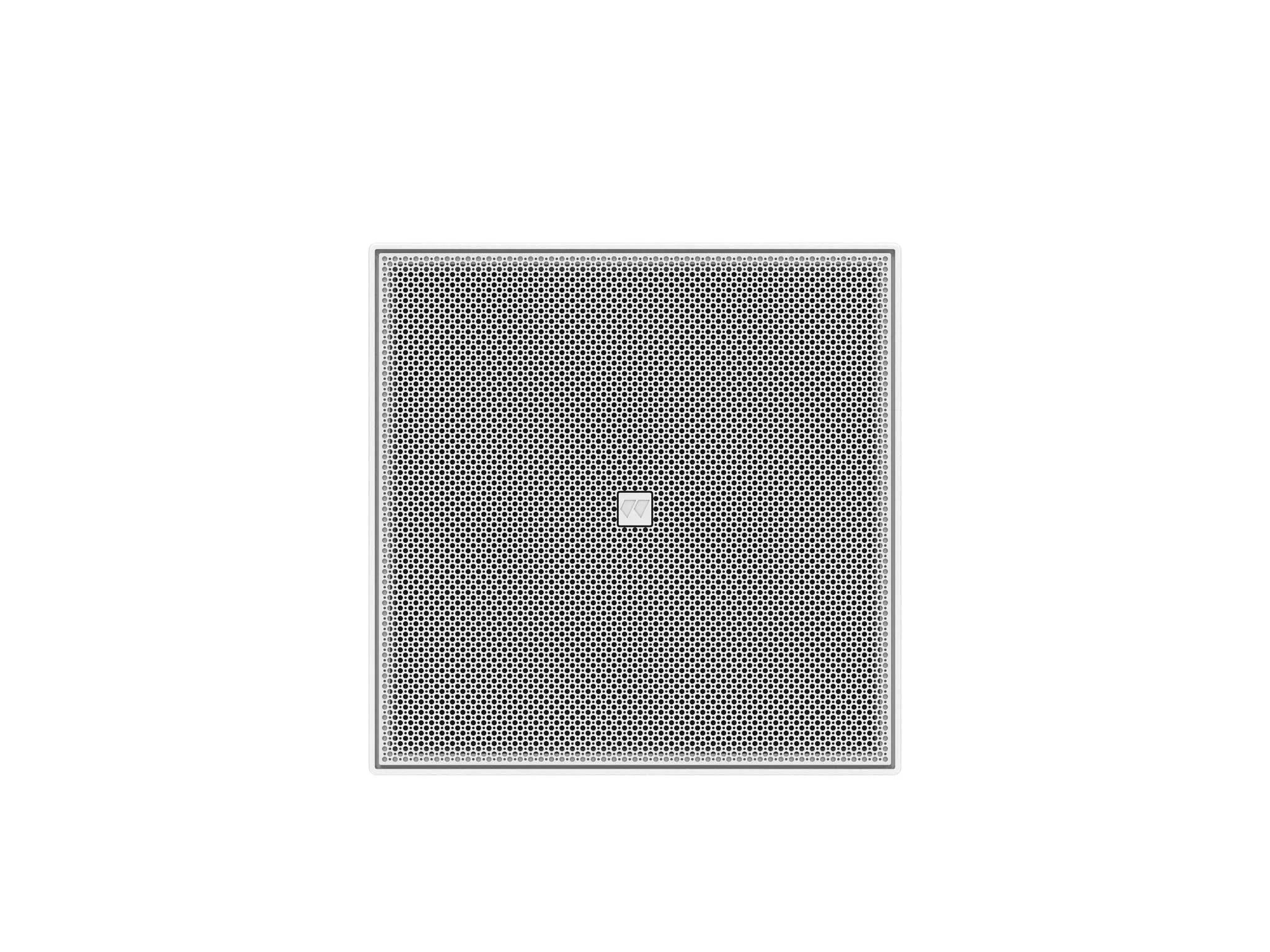

ARENA 10 CX
#50ARE010
Full range 10” 400W Waterproof IP54 coaxial speaker
The ARENA 10 CX, 10'' compact coaxial loudspeaker, provides 400W @ 8 Ohm and can be integrated into 70/100V line installations, it is designed to provide high quality sound reproduction in applications requiring extreme weather resistance. Its water-resistant polyvinyl construction, hydrophobically treated grille, moisture-sealed crossover and waterproof connector make it reliable under prolonged exposure to harsh environmental conditions.Ideal for stadiums fairgrounds, outdoor entertainment centers, athletic fields, swimming pools background music, worships, multipurpose outdoor and indoor venues, etc.
Main information
- Customized high performance woofer & compression driver.
- Built-in 70V/100V transformer with power tap switch.
- Water resistant polyvinyl board with quality textura coating.
- Hidrophobically-treated Grill. Waterproof strip connector.
Measures (Box) (m)
0.42 x 0.42 x 0.50
| Type | IP Coaxial Passive Speaker |
| Low Impedance Power | 200 W RMS / 400 W Program |
| L100V Power | 200 W / 100 W / 50 W |
| L70V Power | 200 W / 100 W / 50 W / 25 W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 10" Woofer (2.5" Voice Coil) |
| HF Transducer | 1" Compression Driver (1 3/8" Voice Coil) |
| Sensitivity (1W @ 1m) | 105 dB |
| SPL Max | 132 dB |
| Frequency Range | 70 Hz – 20 kHz |
| Coverage Angle (H x V) | 95° x 95° |
| Connections | Terminal Block |
| Enclosure material | Water-repellent polyvinyl |
| Includded accessories | Lira |
| IP Protection | IP 65 |
| Other Information |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.42 | 0.42 | 0.50 | 12.00 |
