Audio Projectors
AL 503 M
#50LUZ503
Uniform dispersion array 10W (8 Ohm/línea 70/100V). IP65.

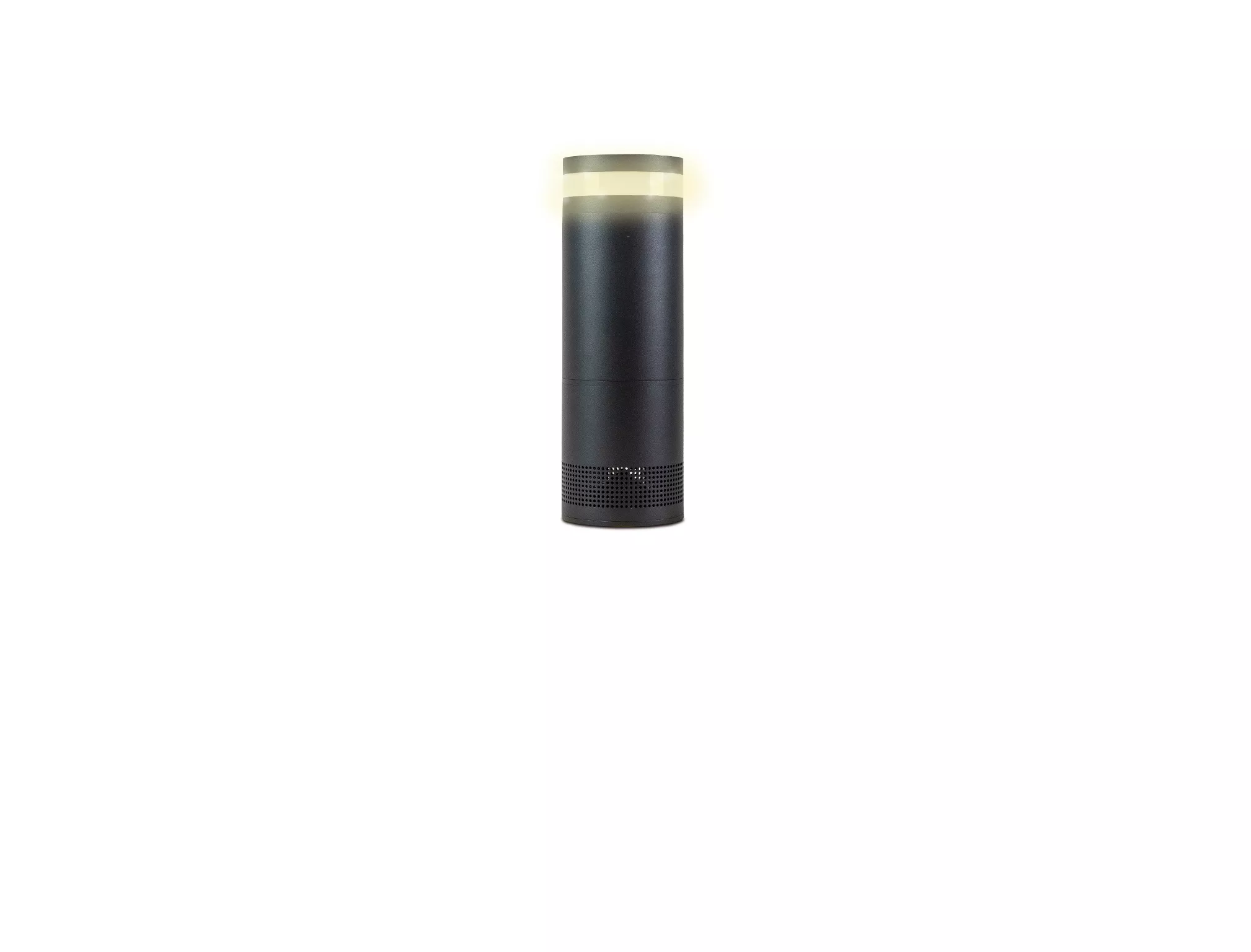

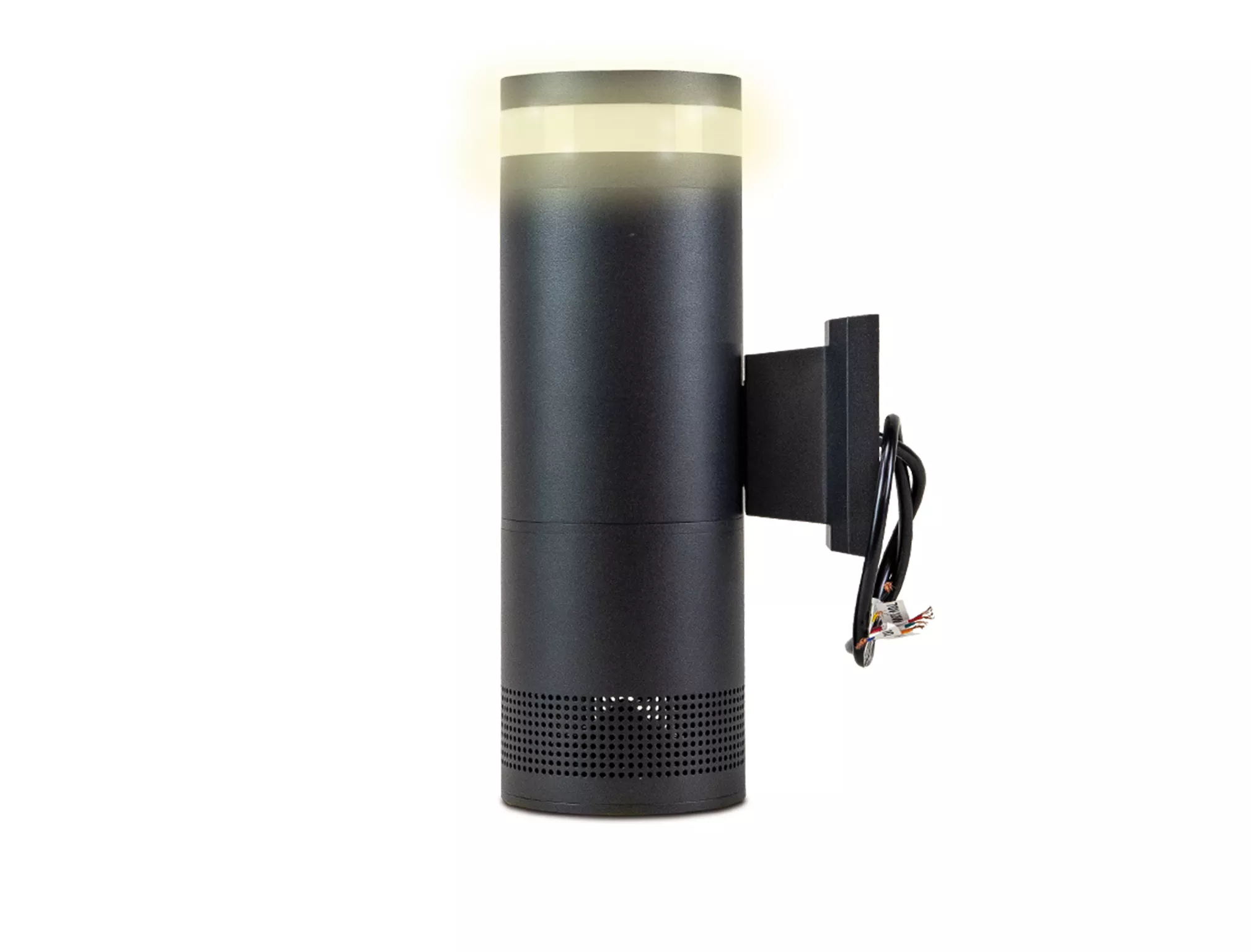

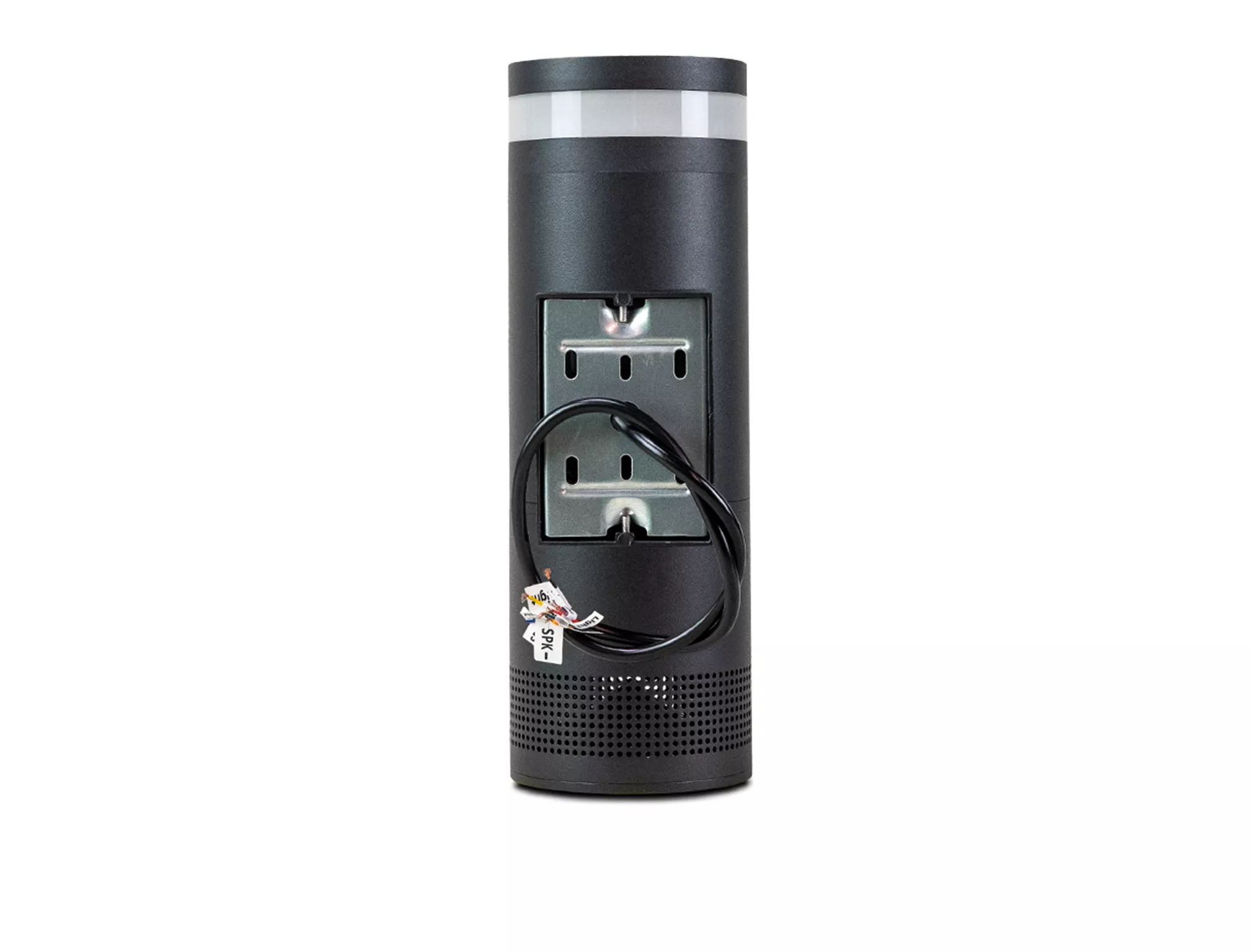

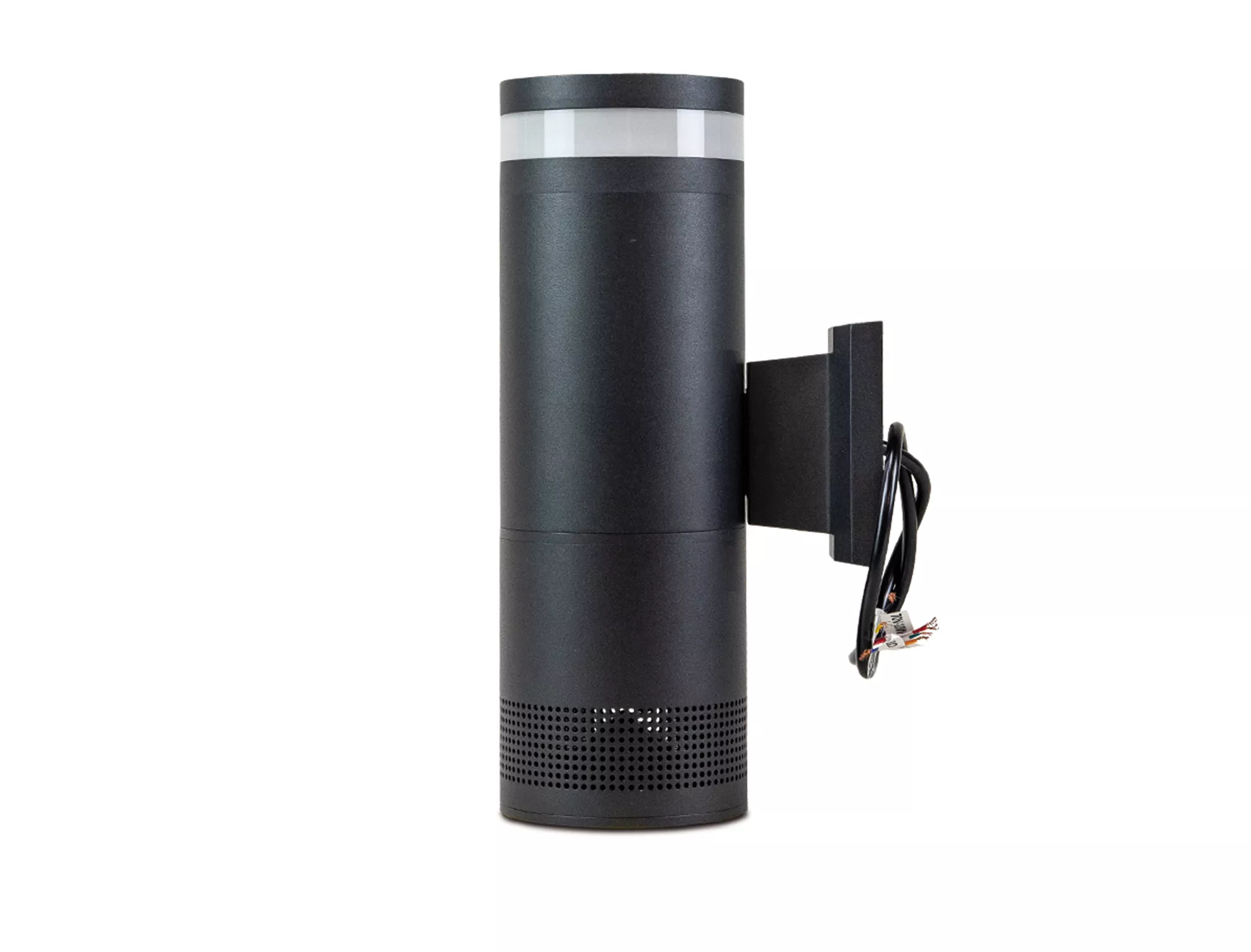

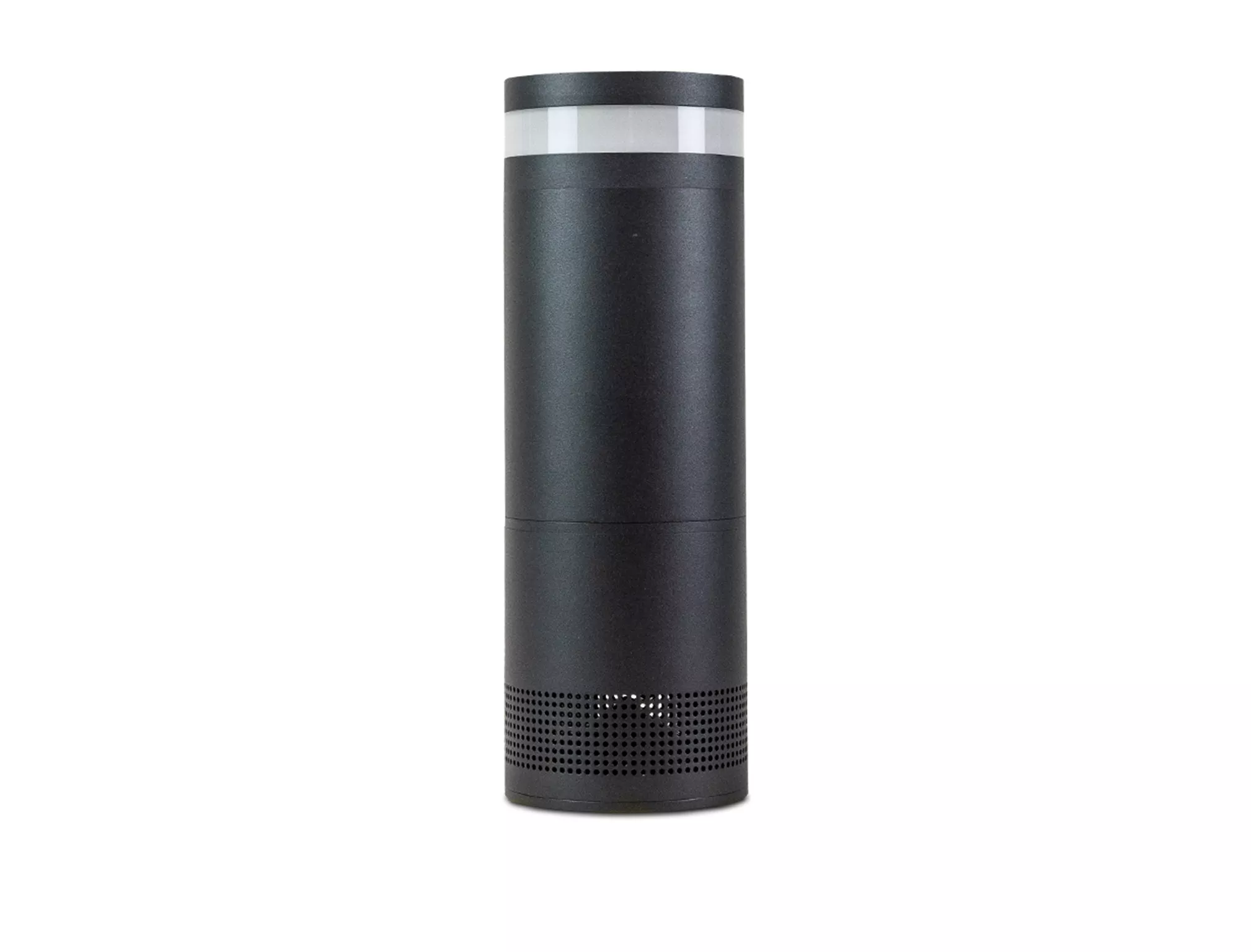

AL 503 M is an acoustic enclosure with built-in LED light, ideal for wall installation in landscaped areas and with an IP65 protection rating. It has a 2.5" woofer. It can work both in low impedance installations with a power of 10W @ 8Ohm and in 70/100 volt line installations, also offering 10W. It incorporates 6W LED lighting with a colour temperature of 3000K powered by 12v DC (power supply not included). It is made of aluminium and designed to offer omnidirectional coverage. Wall mounting accessory included.
Light and sound your garden with the Aulum series.
Main information
- 1 x 2.5” woofer, 10W (8 Ohm/70/100V line)
- Dispersion: horizontal 360°, vertical 120°
- Frequency Response: 90Hz -18KHz
- IP 65, Ligth Power: 6W (DC12V), Color Temperature: 3000K
| Type | Outdoor uniform dispersion loudspeaker with LED 2.5" full range woofer |
| Low Impedance Power | 10W |
| L100V Power | 10W |
| Frequency | 20 Hz - 20 kHz |
| LED type | Warm White LEDs 3000K |
| Current consumption | 12V DC / 6W |
| IP Rate | IP65 |
| Dimensions (HxWxD) | 302 x 108 x 167mm |
| Weight | 2kg |
| Material | alluminium Alloy black painted |

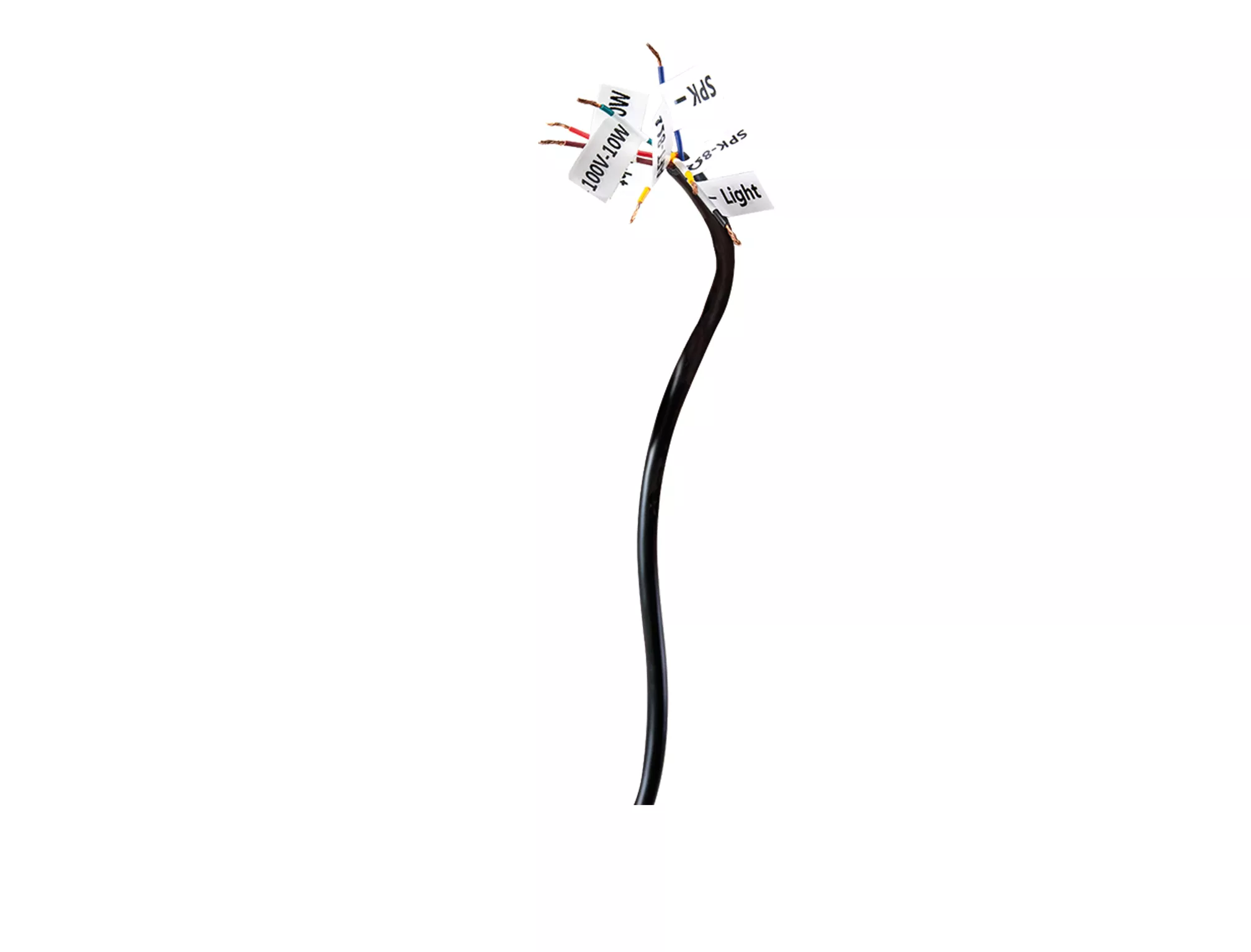

| Connectivity | 6mm PVC multicore cable with 7 conductors of 1,5 mm |
