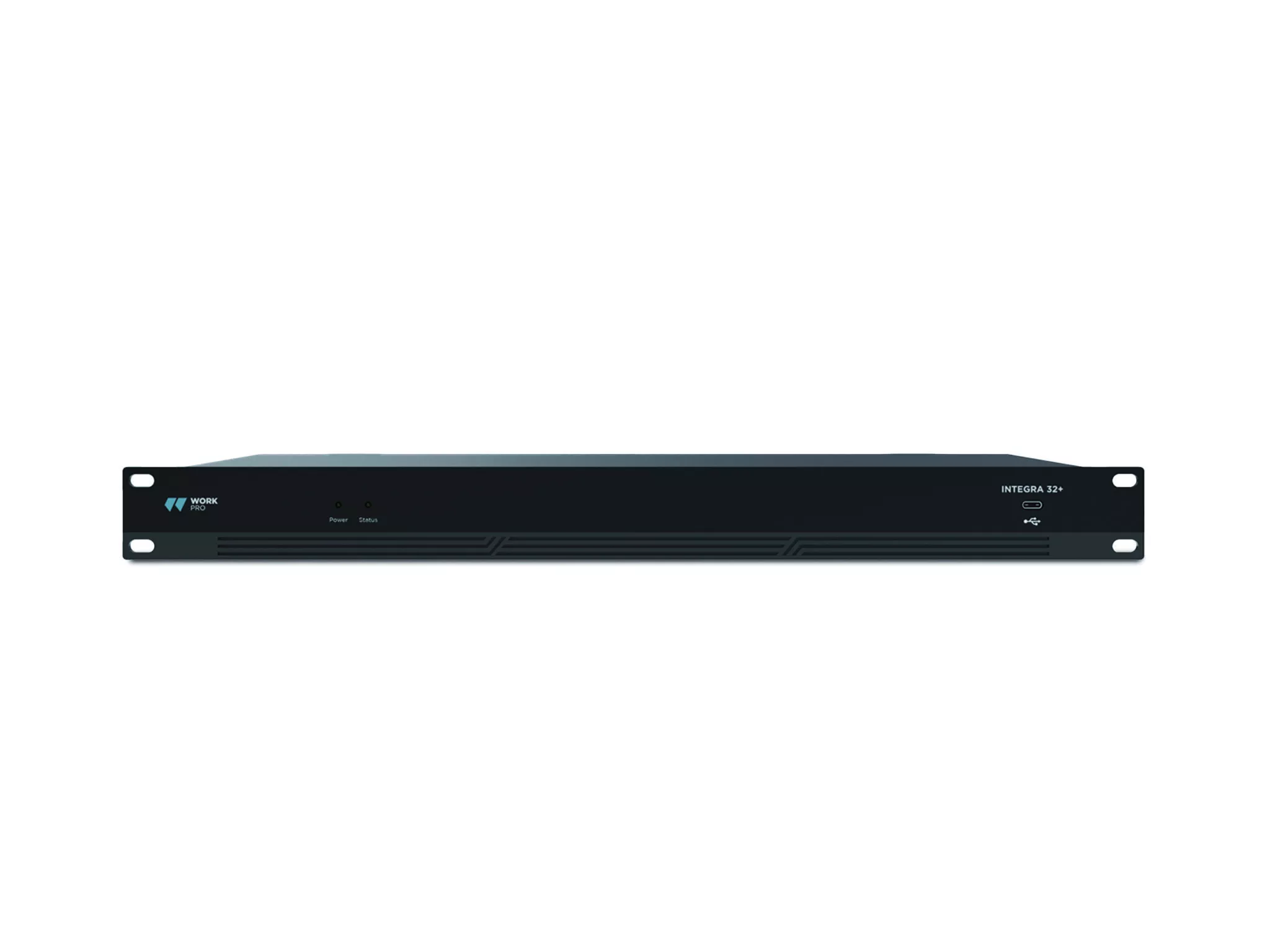

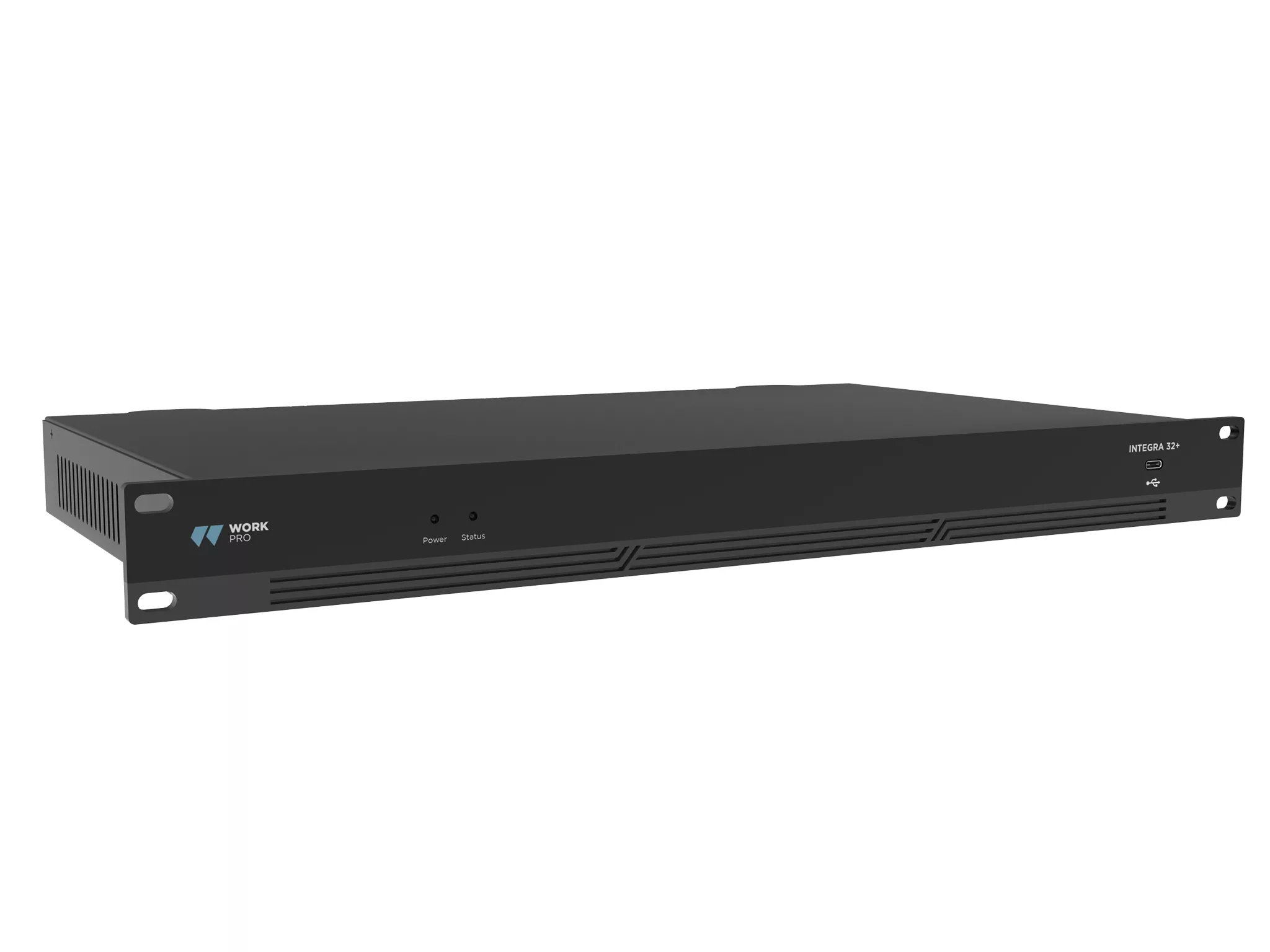

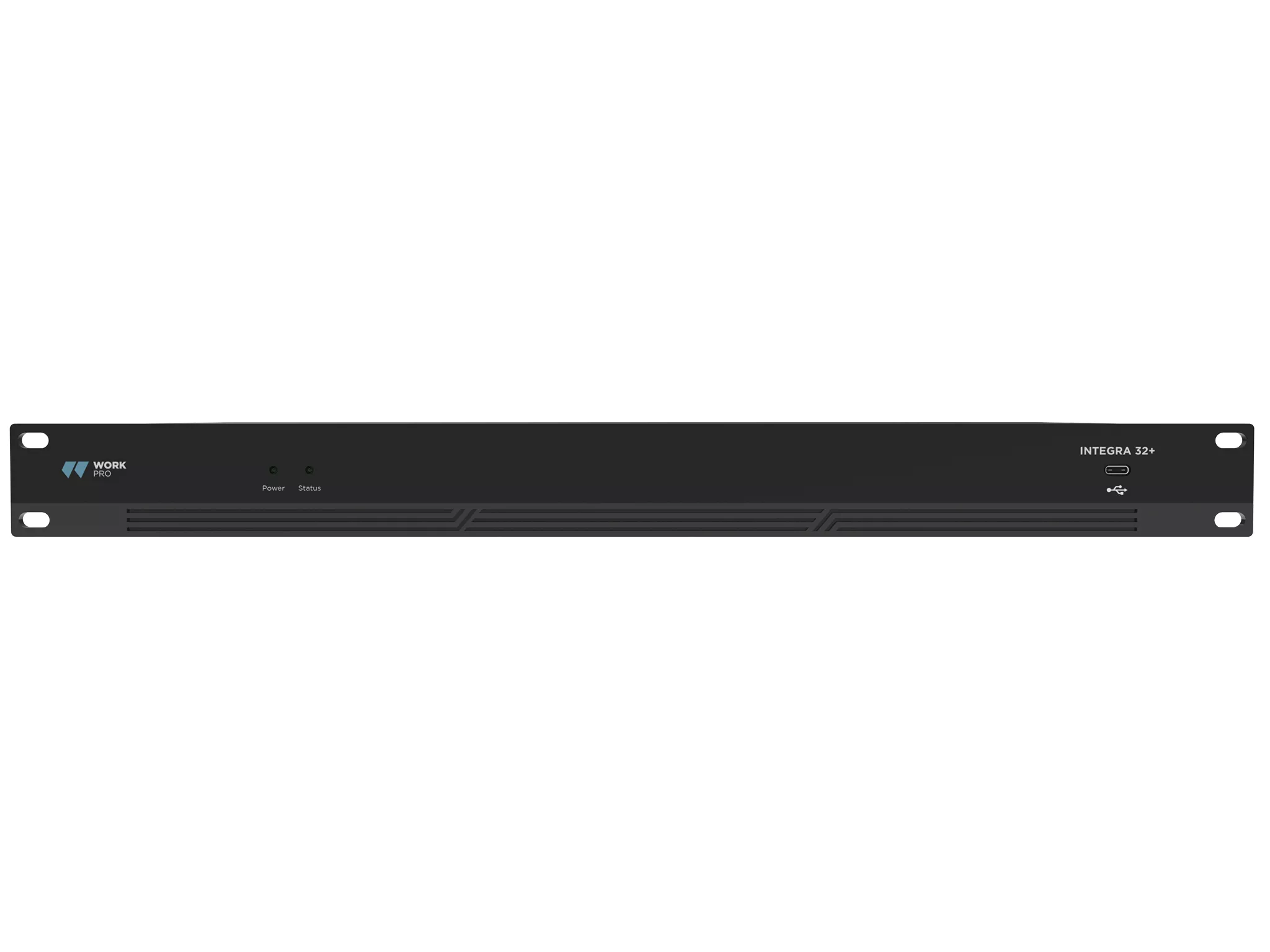

INTEGRA 32+
#58WIN018
DIGITAL AUDIO MATRIX 32 X 32 CHANNELS DSP
Introducing the INTEGRA 32 + digital matrix, where control and creativity have never been easier. Our free and powerful native management software puts the power in your hands.
With configurable per-channel DSP architecture, adjust gain, EQ, compression, limiting and more, all with one-click ease. The visual matrix and auto-mix module give you unparalleled flexibility.
Need more? Filter bank on the inputs, independent compression/limiting on each output, DANTE digital inputs, and an APP for mobile devices to control everything from your pocket. The INTEGRA Series: Are you ready to take your facility's audio to the next level?
Main information
- 16 X 16 analog channels + 16 X 16 DANTE channels
- Programmable DSP architecture per channel
- Customizable control software and APP
- Audio processor IC 24 bit / 48kHz Shark 450 MHz

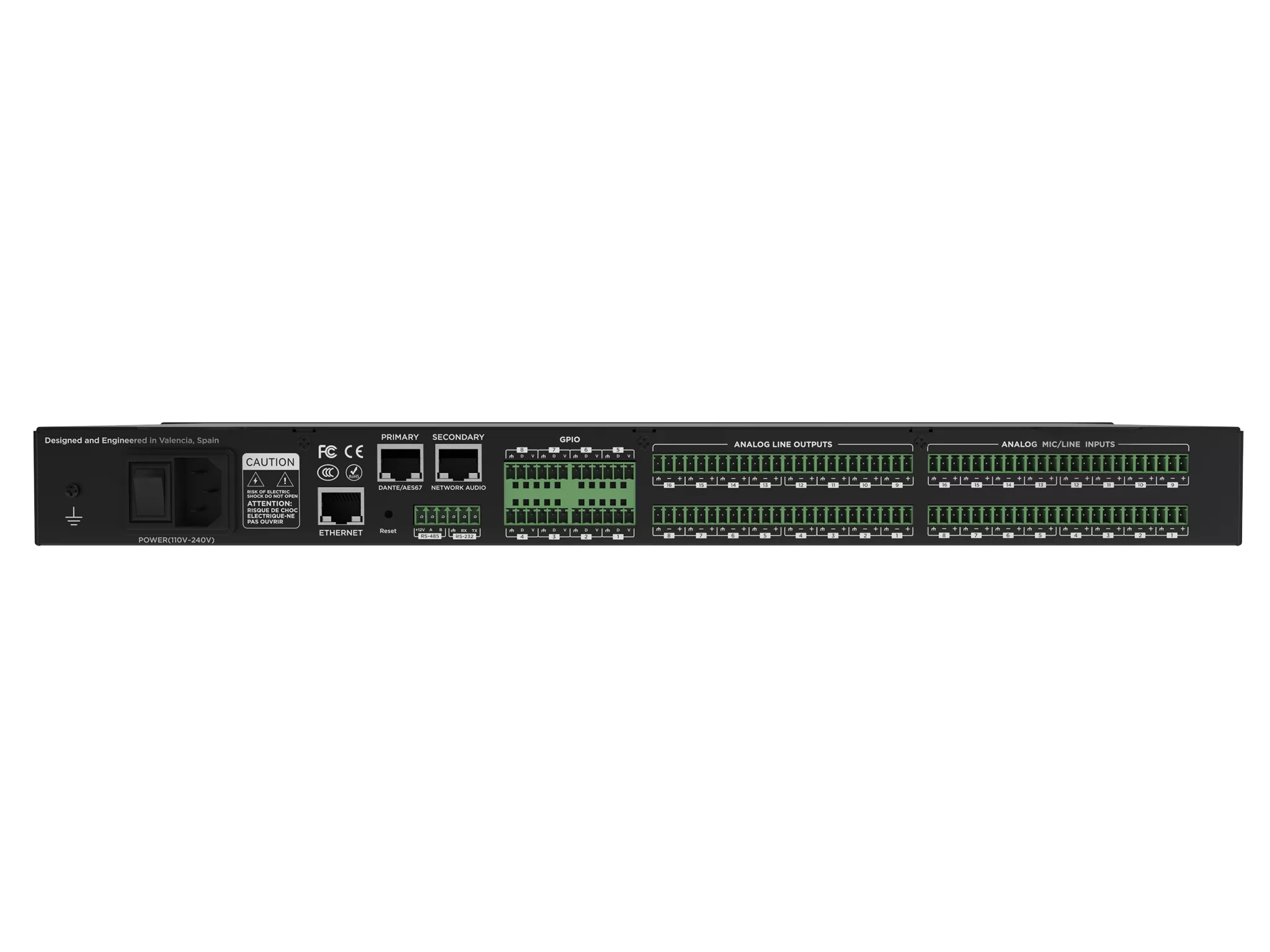

| Audio input | 16 Analogic Balanced (Euroblock) + 16 DANTE |
| Processing per input channel | Expander, Compressor, Auto Gain Compensation, EQ up to 31 bands, Feedback |
| Audio Output | 16 Analogic Balanced (Euroblock) + 16 DANTE |
| Output channel processing | Filtrer, EQ up to 31 bands, Delay , Limiter |
| THD+N | 0.003%@4dBu |
| Maximum output level | +18dBu |
| Sampling frecuency | 24 bit / 48 kHz |
| Filter types | Bessel, Butterworth, Linkwitz-riley |
| No. Memories | 16 Presets |
| Control protocols | RS232, RS485, UDP, 8 GPIOs |
| Network Ports | RJ45, DANTE Primary and Secondary |
| Ethernet | UTP |
| Power supply | AC110~240V 5Hz-60Hz |
| Consumption | <40W |
| Dimensions | 482 x 260 x 45mm |
| Weight | 3 Kg |
| Functions | Signal matrix, Automix, 3 filters per input, Polarity inversion, Noise gate, Compressor, Delay, 5 types of EQ, Sine Wave and Pink and White noise generator, Acoustic Echo Cancellation and Automatic Noise Supressor |
| Control software | Integra+ DSP for PC and Integra REMOTE for Tablet/Smartphone |
